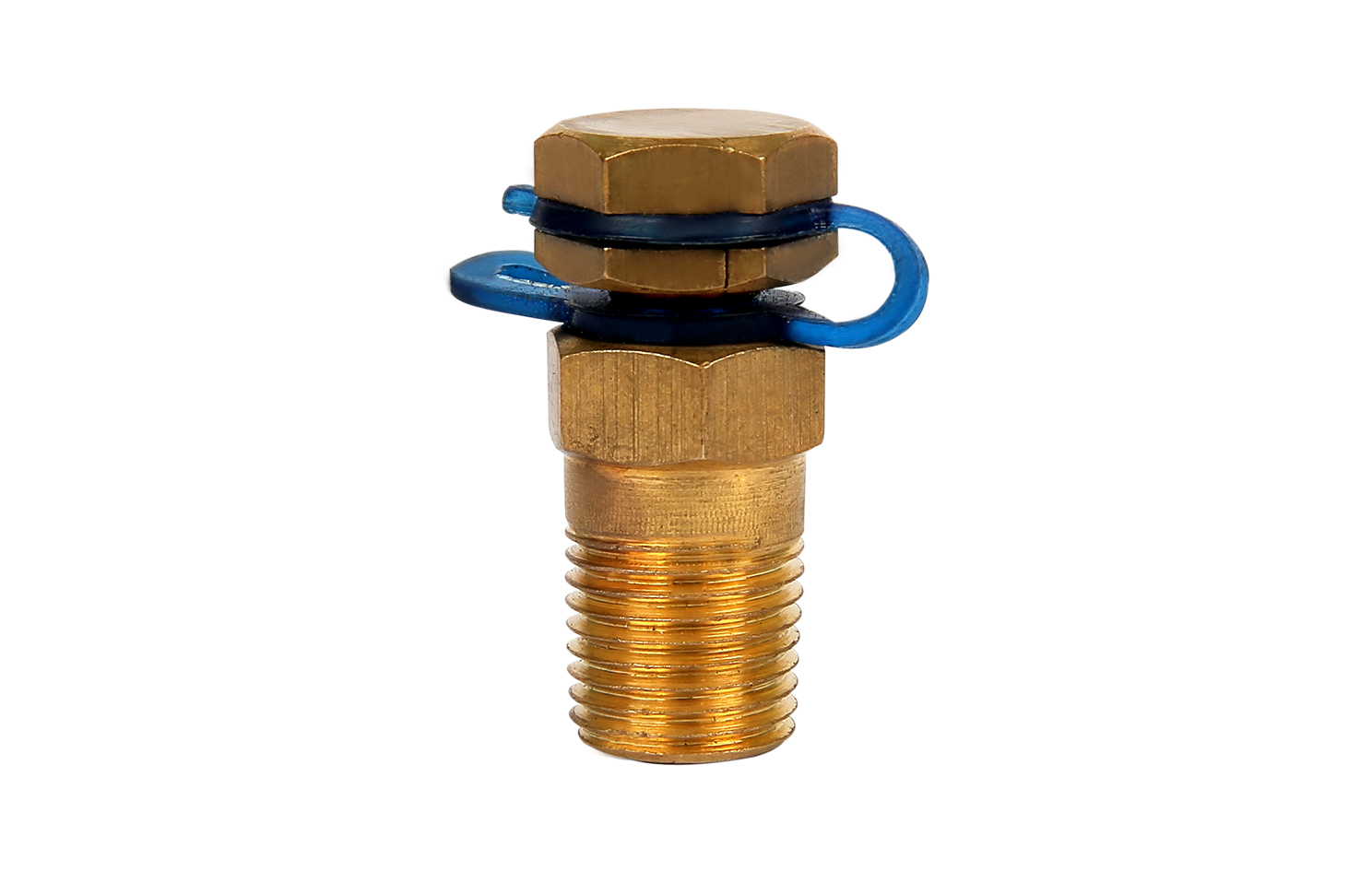

Pressure Temperature Test Plug

  • test plugs provide an economical solution to installing pressure and temperature gauges in chilled water systems
  • the unique "Dual Core" design allows for the bottom seal to close, sealing the system before the probe is fully removed through the top core
  • extensions allow the same test plug to be used for insulated pipe lines, as the core is always on top

more specifications

Specifications and packaging

Specifications

  • test plugs provide an economical solution to installing pressure and temperature gauges in chilled water systems
  • the unique "Dual Core" design allows for the bottom seal to close, sealing the system before the probe is fully removed through the top core
  • extensions allow the same test plug to be used for insulated pipe lines, as the core is always on top
  • nylon retainer cap is supplied as an option
  • Construction Features
    • full brass / stainless steel body
    • nordel core
  • Technical Data
    • pressure rated up to 1,000 PSI / 68 bar
    • maximum temperature -350 °F / 175 °C
  • test kit is available which has a complete range of thermometers, pressure gauges and a gauge adaptor in a rugged case
