Ribbed Multi Layer Pad

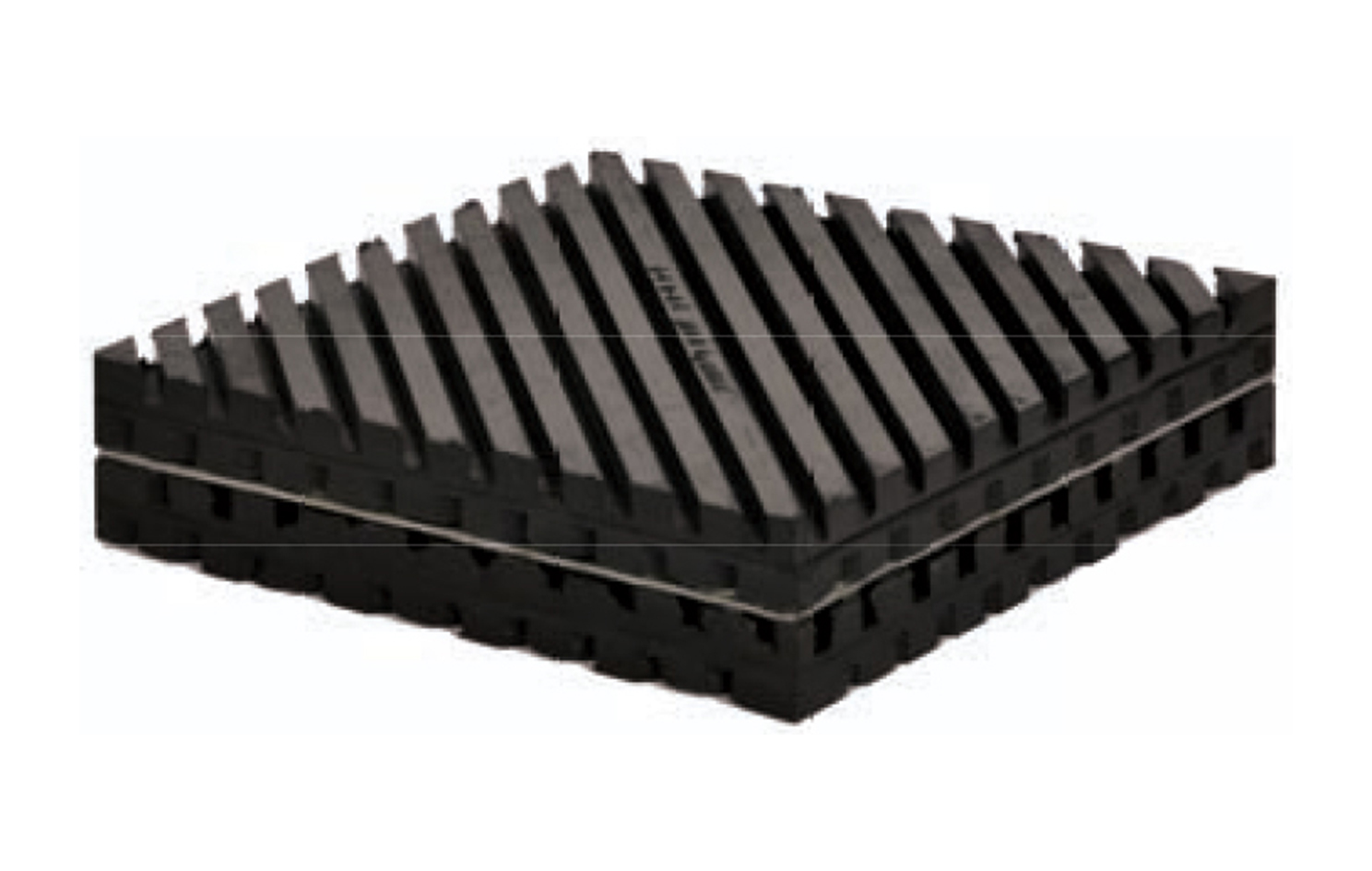

  • Ribbed Multi Layer Pads are constructed of two layers of thick ribbed pads encasing one 1.5 mm thickness steel plate in the center
  • alternate rib design with the ribs below and above joined at right angles to each other to eliminate skidding
  • diagonal ribs help to distribute load evenly

more specifications

Specifications and packaging

Part No.LB (mm)s (mm)Deflection (mm)Rec. Load (N)Fa,z (N)
Part No.HIMOAVMLP1380606L152 mmB (mm)152s (mm)35Deflection (mm)4.5Rec. Load (N)6,300F<subscript>a,z</subscript> (N)9,000
Part No.HIMOAVMLP1380404L102 mmB (mm)102s (mm)35Deflection (mm)4.5Rec. Load (N)2,800F<subscript>a,z</subscript> (N)4,000

Specifications

  • Ribbed Multi Layer Pads are constructed of two layers of thick ribbed pads encasing one 1.5 mm thickness steel plate in the center
  • alternate rib design with the ribs below and above joined at right angles to each other to eliminate skidding
  • diagonal ribs help to distribute load evenly
