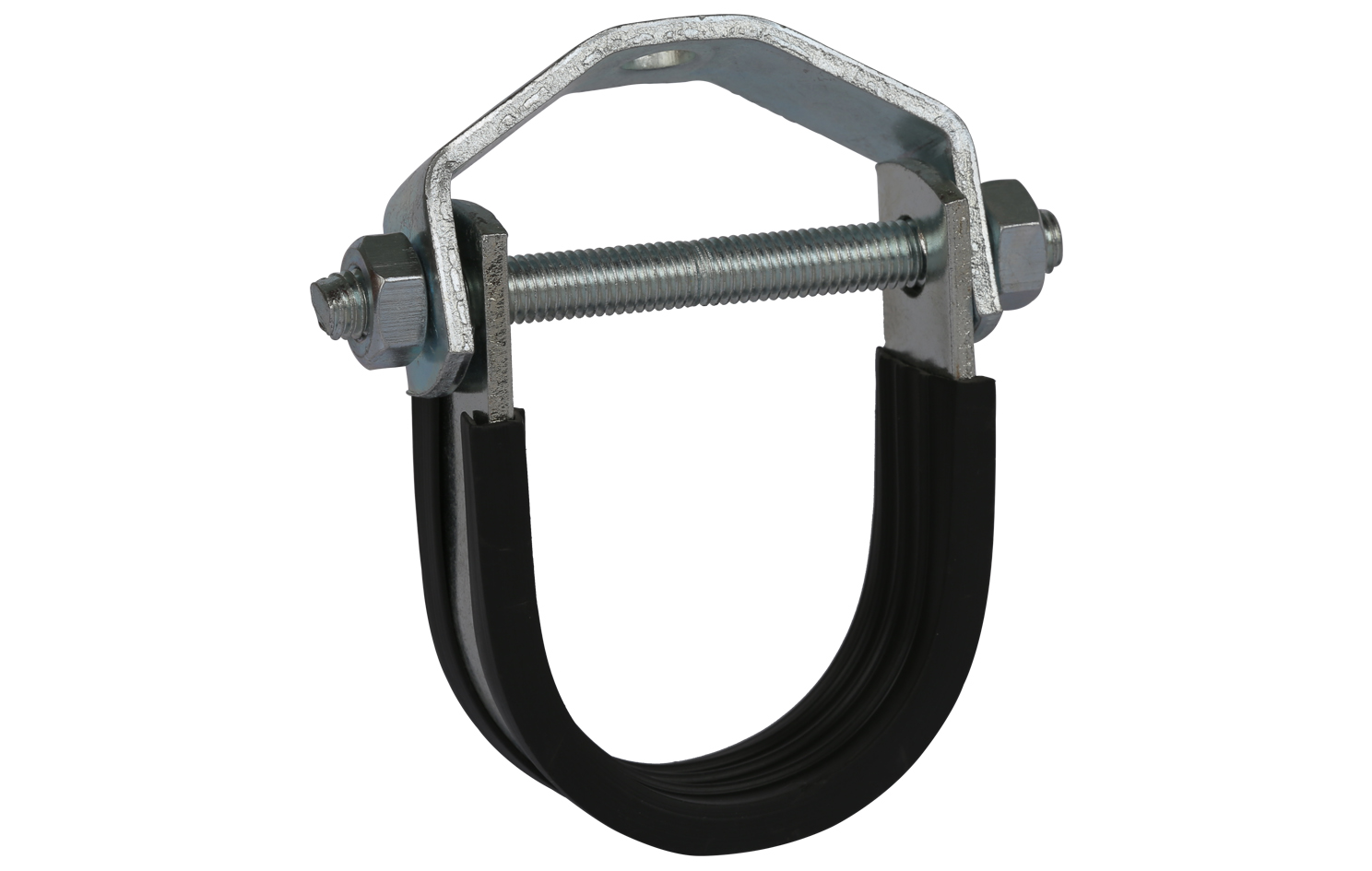

Rubber Lined Clevis Hanger

FM_UL_2
  • designed for chilled water pipe work and fire fighting systems
  • design permits vertical adjustment of pipe after installation
  • hanger load nut above clevis must be tightened securely to ensure proper hanger performance
  • material: steel

more specifications

Specifications and packaging

DMC222022_M

Specifications

  • designed for chilled water pipe work and fire fighting systems
  • design permits vertical adjustment of pipe after installation
  • hanger load nut above clevis must be tightened securely to ensure proper hanger performance
  • material: steel
  • electrogalvanized as per ASTM B 633 Standards (SC3)
  • temperature resistance from -20 °C to +110 °C
  • noise insulating lining, EPDM rubber, black
  • noise reduction up to 18dB (A)
  • designed to meet MSS Standard SP-58, type 10 and SP-69
