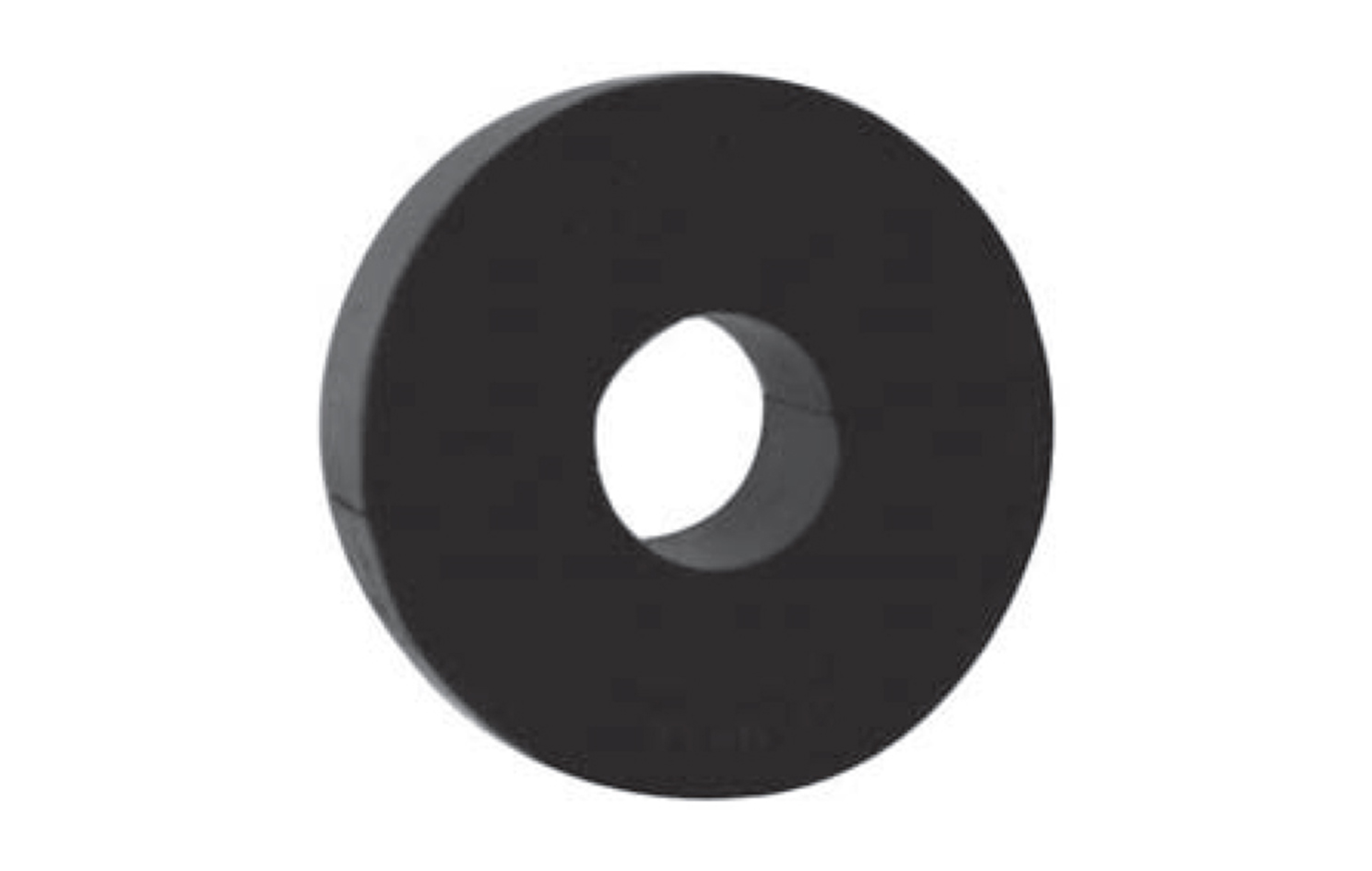

Rubber Support Insert – 65 mm

  • used at the supporting points of insulated pipes to prevent crushing of insulation
  • inherently superior to wood
  • very high load bearing capacity
  • dimensionally accurate as each piece is moulded

more specifications

Specifications and packaging

Specifications

  • used at the supporting points of insulated pipes to prevent crushing of insulation
  • inherently superior to wood
  • very high load bearing capacity
  • dimensionally accurate as each piece is moulded
  • tongue and groove design
  • available with steel reinforcements for higher sizes
  • standard width:
    • ½” to 2": 25 mm
    • 2" to 5": 38 mm
    • 6" and above: 50 mm
    • non standard widths also available
  • excellent resistance to deterioration / distortion
  • density: 1,100 - 1,400 kg/m3
  • thermal conductivity: 0.16 w/m °C
  • temperature resistance from -20 °C to +110 °C
  • designed to meet BS3974-1 : 1974
