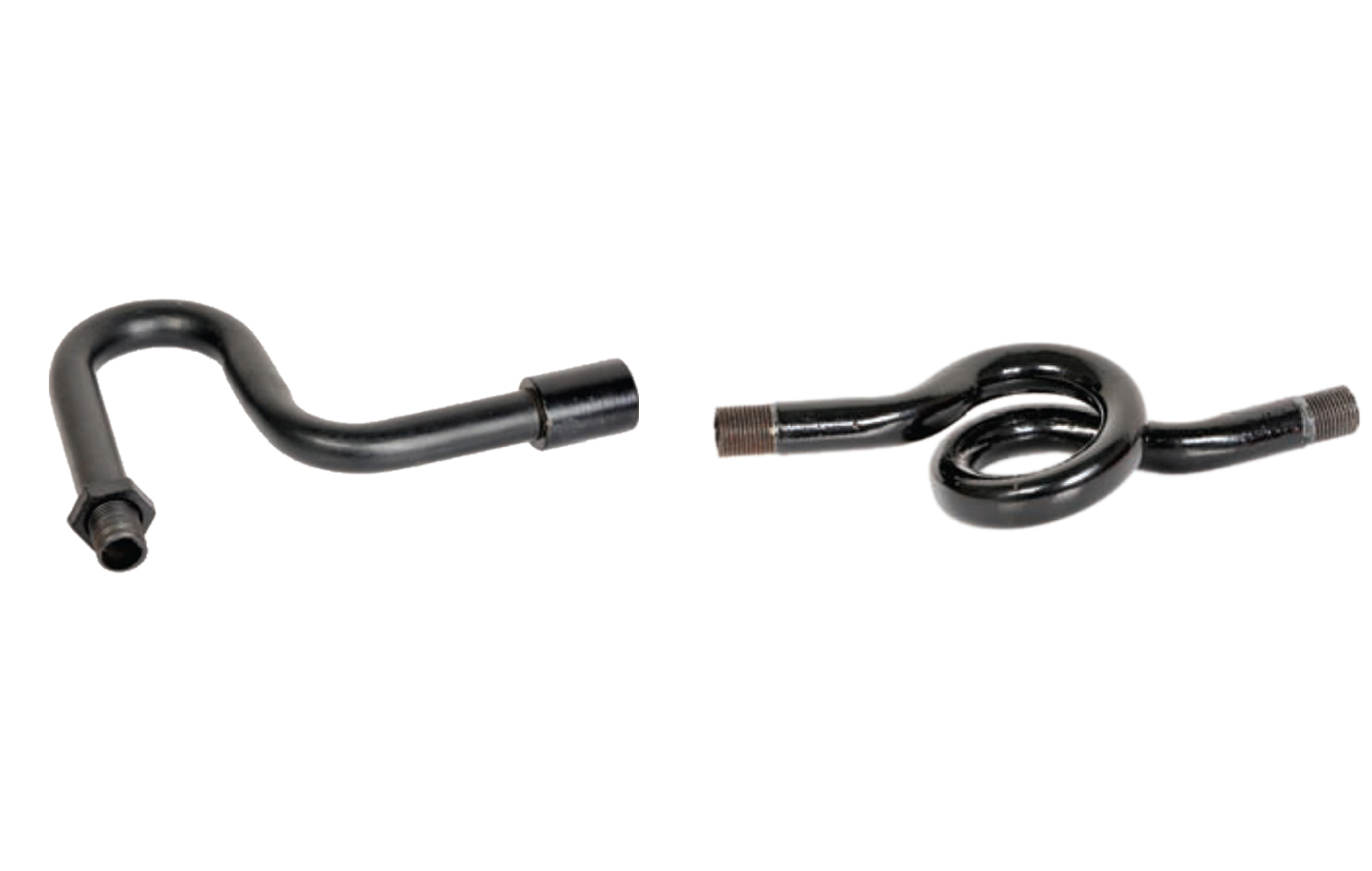

Siphon

  • siphon tube is connected between the pressure gauge and the process in applications where high temperature vapours or fluids are present
  • it acts as a cooling coil and protects the gauge from high temperature vapours by dissipating heat
  • Construction Features
  • Technical Data

more specifications

Specifications and packaging

Part No.D (")Model
Part No.DMUS38D (")ModelU Shape
Part No.DMUS12D (")½ModelU Shape
Part No.DMOS38D (")ModelO Shape
Part No.DMOS12D (")½ModelO Shape

Specifications

  • siphon tube is connected between the pressure gauge and the process in applications where high temperature vapours or fluids are present
  • it acts as a cooling coil and protects the gauge from high temperature vapours by dissipating heat
  • Construction Features
    • forged brass body
    • mild steel epoxy powder coated
  • Technical Data
    • rated for 25 kg/m3 operating pressure
