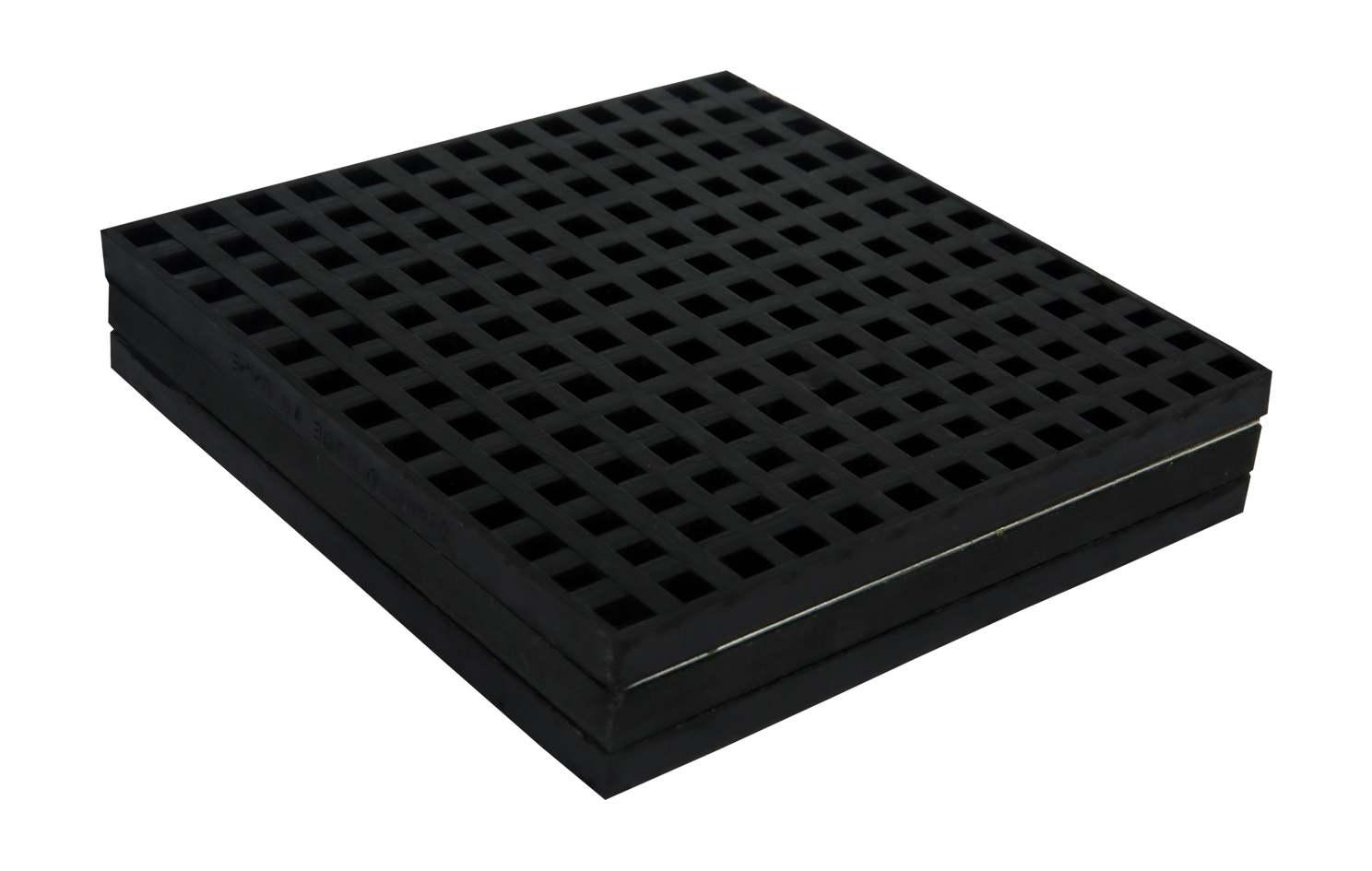

Square Cell Multi Layer Pad

  • Square Cell Multi Layer Pads are constructed of three layers of square cell rubber sheets with two steel plates of 1.5 mm thickness
  • due to suction pockets formed by the square cell design the pad offers better grip on the floor surface
  • higher load capacity than Ribbed Multi Layer Pad

more specifications

Specifications and packaging

Part No.LB (mm)s (mm)Deflection (mm)Rec. Load (N)Fa,z (N)
Part No.HIMOAVSCP1380606L152 mmB (mm)152s (mm)35Deflection (mm)4.5Rec. Load (N)7,900F<subscript>a,z</subscript> (N)10,000
Part No.HIMOAVSCP1380404L102 mmB (mm)102s (mm)35Deflection (mm)4.5Rec. Load (N)3,500F<subscript>a,z</subscript> (N)4,500

Specifications

  • Square Cell Multi Layer Pads are constructed of three layers of square cell rubber sheets with two steel plates of 1.5 mm thickness
  • due to suction pockets formed by the square cell design the pad offers better grip on the floor surface
  • higher load capacity than Ribbed Multi Layer Pad
