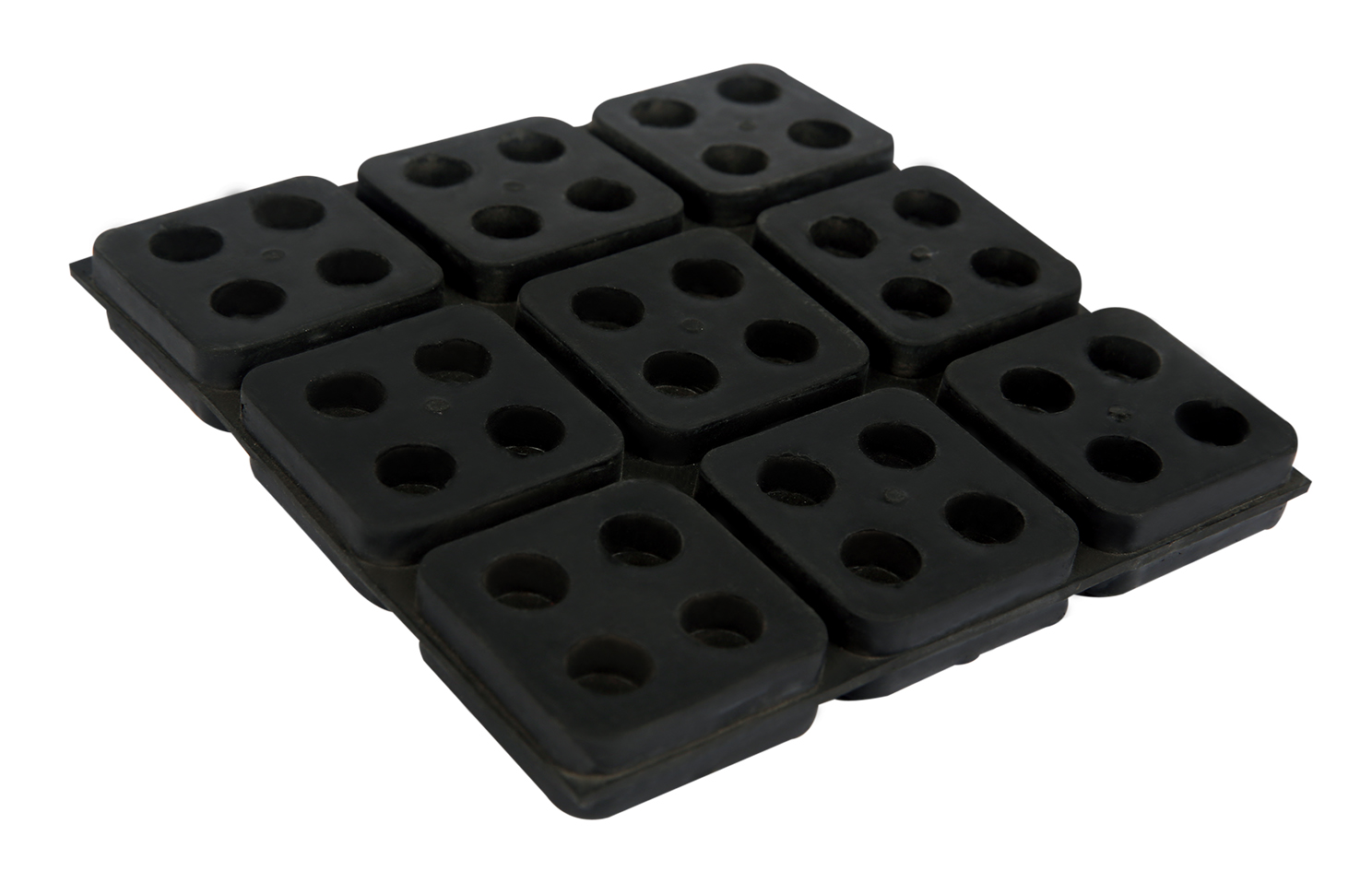

Waffle Pad

  • easy field installation
  • no need for bolting
  • designed with in-built section cups
  • easy cut design without tools allows job site flexibility

more specifications

Specifications and packaging

Part No.LB (mm)s (mm)Rec. Load (N)F<subscript>a,z</subscript> (N)
Part No.DMAVWP341818L450 mmB (mm)450s (mm)20Rec. Load (N)4,100F<subscript>a,z</subscript> (N)4,800
Part No.DMAVWP341212L300 mmB (mm)300s (mm)20Rec. Load (N)2,750F<subscript>a,z</subscript> (N)3,100
Part No.DMAVWP340808L200 mmB (mm)200s (mm)20Rec. Load (N)1,800F<subscript>a,z</subscript> (N)2,050
Part No.DMAVWP340606L150 mmB (mm)150s (mm)20Rec. Load (N)1,350F<subscript>a,z</subscript> (N)1,500
Part No.DMAVWP340404L100 mmB (mm)100s (mm)20Rec. Load (N)900F<subscript>a,z</subscript> (N)1,050

Specifications

  • easy field installation
  • no need for bolting
  • designed with in-built section cups
  • easy cut design without tools allows job site flexibility

Technical downloads
