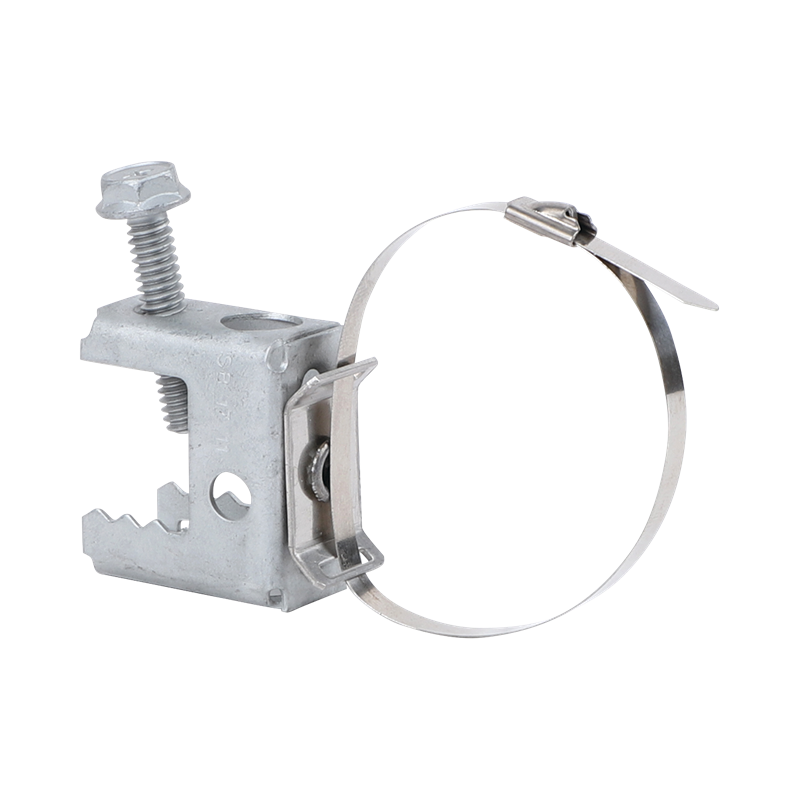

Walraven MCCTM
for flange
Features
- for a solid fixing to steel construction without the need for welding or drilling
- various fixing possibilities to clamp (horizontal and vertical)
- with metal saddle for cable tie attachment
- material: clip made of spring steel (type CS70); saddle made of stainless steel
- clip: surface treatment Delta-Tone 9000 (480 hours)
Specifications
Identification
| Product Number | 53321017 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 36 |
|---|---|
| Total Width (mm) Ref. letter: W | 18 |
| Total Depth (mm) Ref. letter: DtT | 36 |
Technical characteristics
| Material | Steel |
|---|---|
| Material Quality | St. 1.1231 |
| Surface Protection | Deltatone® |
| Surface Treatment | Untreated |
Approvals & Declarations
| FM approval | No |
|---|---|
| UL listing certificate | No |
| VdS approval | No |
Weights
| Weight [g] (g) | 30 |
|---|---|
| Weight [kg] (kg) | 0.03 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 123 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 3130 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 12600 |
| Pack 2 Height (mm) | 1005 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 415000 |
| Pack 3 Shape | No Pack Type Available |
| Pack 4 Shape | No Pack Type Available |
