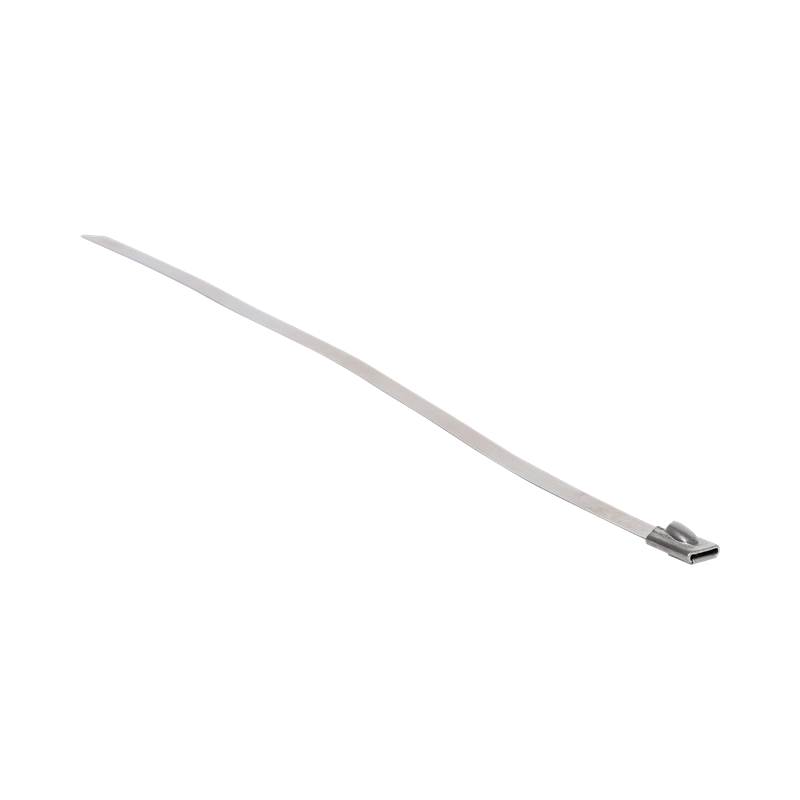

Walraven Cable Tie-Wrap SSt 200x5mm
Features
- self-locking head design speeds installation and locks into place at any length along tie body
- ideal for high temperature environments (up to 538°C) and fire escape routes
- provides a strong and durable method of cable bundling
- material: stainless steel
Specifications
Identification
| Product Number | 09017020 |
|---|
Product Dimensions
| Total Height (mm) Ref. letter: H | 3 |
|---|---|
| Total Width (mm) Ref. letter: W | 5 |
| Total Length (mm) Ref. letter: L | 200 |
| Material Width (mm) Ref. letter: MW | 5 |
| Cable Strap Length (m) | 0.2 |
Technical characteristics
| Colour | Stainless Steel |
|---|---|
| Halogen Free? | Yes |
| Material | Stainless Steel |
| Material Quality | 1.4301 (AISI 304) |
| Operating Temperature (°C) | -35 - 538 |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
| UV Resistant? | Yes |
Weights
| Weight [g] (g) | 2 |
|---|---|
| Weight [kg] (kg) | 0 |
Packaging information
| Pack 1 Shape | Bag |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 20 |
| Pack 1 Width (mm) | 115 |
| Pack 1 Length (mm) | 280 |
| Pack 1 Weight (g) | 202 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 5000 |
| Pack 2 Height (mm) | 135 |
| Pack 2 Width (mm) | 200 |
| Pack 2 Length (mm) | 400 |
| Pack 2 Weight (g) | 12000 |
| Pack 3 Shape | No Pack Type Available |
