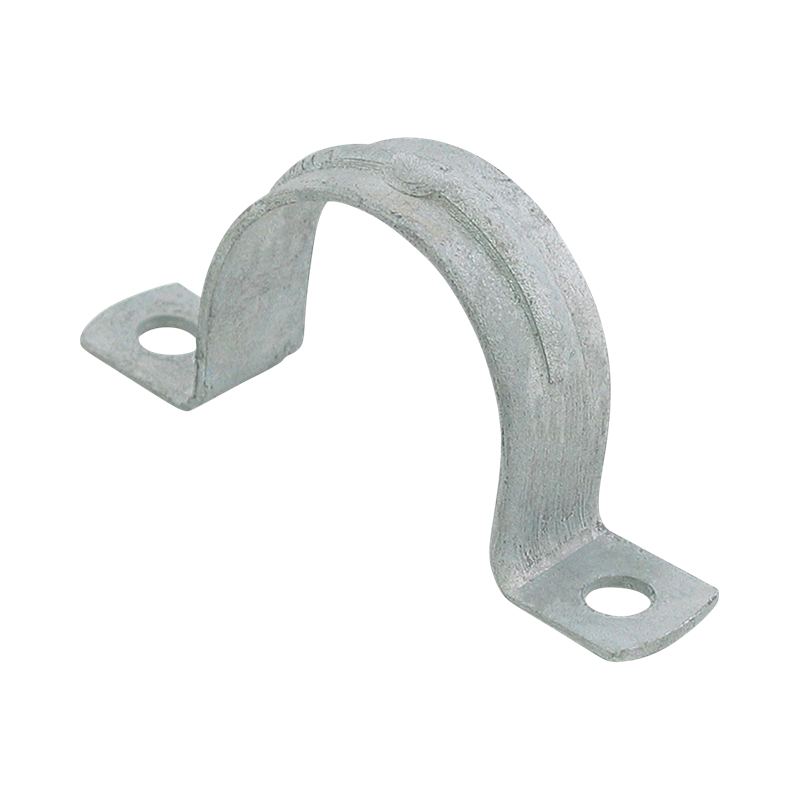

Walraven Pipe Saddle hdg 21.5mm 1/2"

for steel pipes

4601021

Get project support

Walraven Pipe Saddle hdg 21.5mm 1/2"

for steel pipes

4601021

Consent

Features

  • one-part saddle
  • material: steel
  • hot dip galvanized

Specifications

Walraven Pipe Saddle (hdg)

Identification

Identification
Product Number 4601021

Product Dimensions

Product Dimensions
Outside Pipe Diameter (mm) Ref. letter: D 21.5
Pipe Diameter Imperial (in) Ref. letter: D ½
Fixing Hole (mm) Ref. letter: FH 9
Heart To Heart Distance (mm) Ref. letter: k 50
Material Thickness (mm) Ref. letter: MT 2
Total Height (mm) Ref. letter: H 23
Total Width (mm) Ref. letter: W 70
Total Depth (mm) Ref. letter: DtT 20

Technical characteristics

Technical characteristics
Colour Zinc
Halogen Free? Yes
Layer Thickness Surface Protection (µm) 50
Material Steel
Material Quality St. 1.0332
Suitable For Number Of Pipes 1
Suitable In Fire Resistance Areas? Yes
Surface Protection Hot Dip Galvanized
Surface Treatment Untreated
Type Of Fastening Screw hole
UV Resistant? Yes

Approvals & Declarations

Approvals & Declarations
EPD (Environmental Product Declaration) Yes

Safeloading

Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 3500
Maximum Allowed Load Faz [kN] (kN) Ref. letter: Fa,z 3.5

Weights

Weights
Weight [g] (g) 25.5
Weight [kg] (kg) 0.03

Packaging information

Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 50
Pack 1 Height (mm) 70
Pack 1 Width (mm) 200
Pack 1 Length (mm) 266
Pack 1 Weight (g) 1370
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 10800
Pack 2 Height (mm) 984
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 318000
Pack 3 Shape No Pack Type Available

Downloads & certificates

B3010 Walraven Pipe Saddle (hdg) PDF | EN-GB | Product info sheet Download
