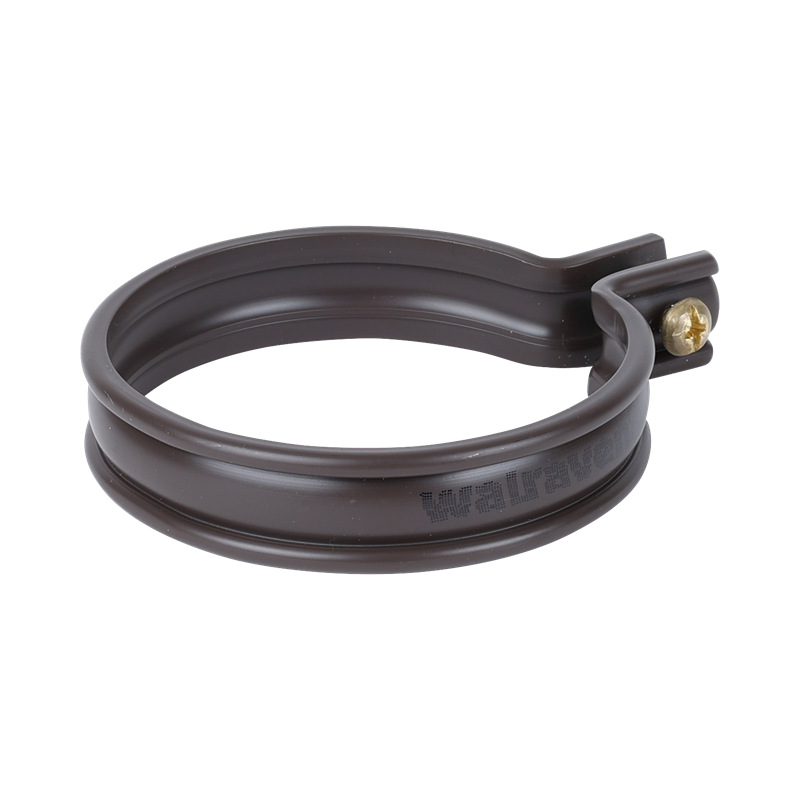

Walraven PVC Pipe Clamp B brown 70mm
for plastic and rain water pipes
Features
- one-part clamp
- for fixing of PVC rain water pipes
- for fixing of PVC pipe
- material: hard PVC (polyvinylchloride), brown
- UV-stabilized
Specifications
Identification
| Product Number | 1304070 |
|---|
Product Dimensions
| Outside Pipe Diameter (mm) Ref. letter: D | 70 |
|---|---|
| DN Ref. letter: DN | DN 65 |
| Connection Thread Ref. letter: G | None |
| Material Width (mm) Ref. letter: MW | 20 |
| Material Thickness (mm) Ref. letter: MT | 4 |
| Total Height (mm) Ref. letter: H | 97 |
| Total Width (mm) Ref. letter: W | 79 |
| Total Depth (mm) Ref. letter: DtT | 20 |
| Lip Length Right (mm) Ref. letter: Llr | 18 |
Technical characteristics
| Colour | Brown |
|---|---|
| Connection | None |
| Key Driver Size Ref. letter: Drive | PZ2 |
| Lining | None |
| Lock Facility | Single screw |
| Material | Plastic |
| Material Quality | PVC (PolyVinyl Chloride) |
| Operating Temperature (°C) | 0 - 60 |
| Suitable for | Plastic Tube |
| Suitable For Number Of Pipes | 1 |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
Approvals & Declarations
| CE mark | No |
|---|---|
| EPD (Environmental Product Declaration) | No |
| European Technical Assessment (ETA) | No |
| FM approval | No |
| ISO 3822-1 test report | No |
| RAL quality mark (RAL-GZ 655/B) | No |
| RAL quality mark (RAL-GZ 656 - fire) | No |
| UL listing certificate | No |
| VdS approval | No |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 700 |
|---|
Weights
| Weight [g] (g) | 32.1 |
|---|---|
| Weight [kg] (kg) | 0.03 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 25 |
| Pack 1 Height (mm) | 105 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 913 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 3600 |
| Pack 2 Height (mm) | 984 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 152472 |
| Pack 3 Shape | No Pack Type Available |
