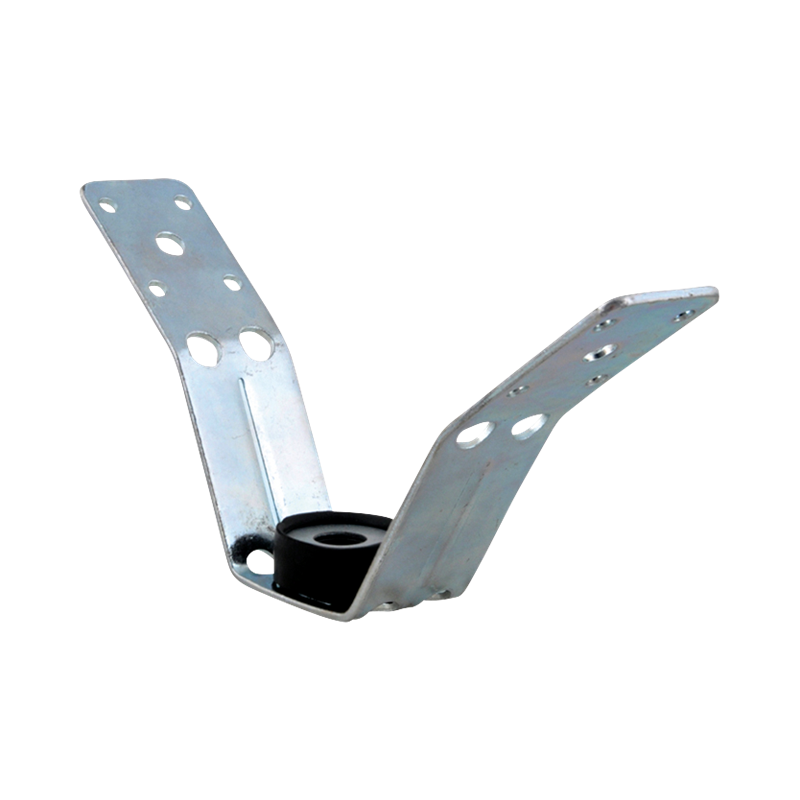

Walraven Ductwork Support Bracket zp TPE A

4125005

Get project support

Walraven Ductwork Support Bracket zp TPE A

4125005

Consent

Features

  • for fixing of round air ducts
  • with hole Ø 4.8 mm for pop-rivet connection
  • material: metal parts made of steel; silent block made of TPE rubber, black
  • zinc plated
  • sound insulating lining according DIN 4109

Specifications

Walraven Support Bracket Round Ductwork

Identification

Identification
Product Number 4125005

Product Dimensions

Product Dimensions
Angle (°) Ref. letter: a 80
Angle 2 (mm) Ref. letter: a 2 18
Fixing Hole (mm) Ref. letter: FH 9
Fixing Hole 2 (mm) Ref. letter: FH 2 4.8
Material Thickness (mm) Ref. letter: MT 2
Total Depth (mm) Ref. letter: DtT 30
Total Height (mm) Ref. letter: H 62
Total Width (mm) Ref. letter: W 200
Width (mm) Ref. letter: w 35
Width 2 (mm) Ref. letter: w 2 110
Width 3 (mm) Ref. letter: w 3 46

Technical characteristics

Technical characteristics
Colour Zinc
For Thread Size Ref. letter: fts M10
Layer Thickness Surface Protection (µm) 5
Material Steel
Material Quality St. 1.0332
Mounting Method Top
Surface Protection Zinc Plated
Surface Treatment Untreated
Type A
With Vibration Dampers? Yes

Safeloading

Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 490

Weights

Weights
Weight [g] (g) 108
Weight [kg] (kg) 0.11

Packaging information

Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 50
Pack 1 Height (mm) 175
Pack 1 Width (mm) 200
Pack 1 Length (mm) 266
Pack 1 Weight (g) 5540
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 4500
Pack 2 Height (mm) 1019
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 520000
Pack 3 Shape No Pack Type Available

Downloads & certificates

F0521 Walraven Support Bracket Round Ductwork PDF | EN-GB | Product info sheet Download
