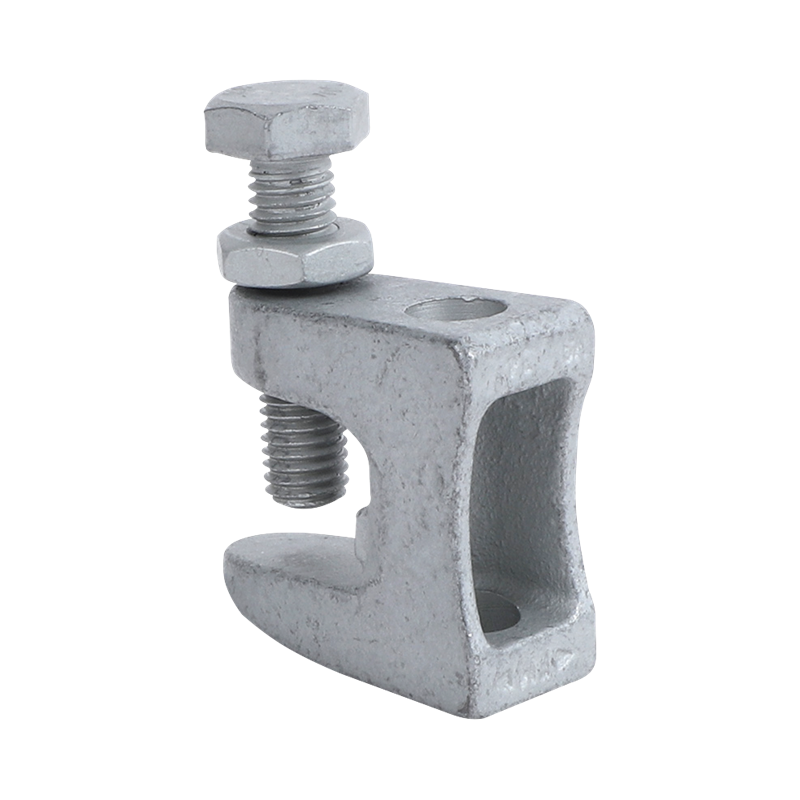

Walraven Beam Clamp C BUP VdS M8/23mm
for clamping on beam flange
Features
- for a solid fixing to steel construction without the need for welding or drilling
- according to VdS-regulations an additional safety strap should be used when supporting pipes above DN65
- bolt with hexagon head according to DIN 933 strength class 8.8, screw point with cup ring according to EN ISO 4753 and lock nut
- product is part of the Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
- FM approval and UL listed for hanger rod size M10
Specifications
Identification
| Product Number | 6008008 |
|---|
Product Dimensions
| Maximum Clamping Thickness (mm) Ref. letter: CTM | 23 |
|---|---|
| Maximum Clamping Depth (mm) Ref. letter: CDM | 29 |
| Total Height (mm) Ref. letter: H | 62 |
| Total Width (mm) Ref. letter: W | 50 |
| Total Depth (mm) Ref. letter: DtT | 21 |
| Thread Size Ref. letter: TS | M8 |
| Width Across Flats (mm) Ref. letter: WAF | 17 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Layer Thickness Surface Protection (µm) | 8 |
| Locking Bolt Thread | M10 |
| Material | Cast Iron |
| Material Quality | EN-GJMB-350-10 |
| Norm / Standard | DIN 933 |
| Surface Protection | BUP1000 |
| Surface Treatment | Untreated |
| Thread Type Ref. letter: TT | Metric |
Approvals & Declarations
| FM approval | No |
|---|---|
| UL listing certificate | No |
| VdS approval | Yes |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 2500 |
|---|
Weights
| Weight [g] (g) | 146 |
|---|---|
| Weight [kg] (kg) | 0.15 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 105 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 7410 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 5400 |
| Pack 2 Height (mm) | 984 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 821388 |
| Pack 3 Shape | No Pack Type Available |
