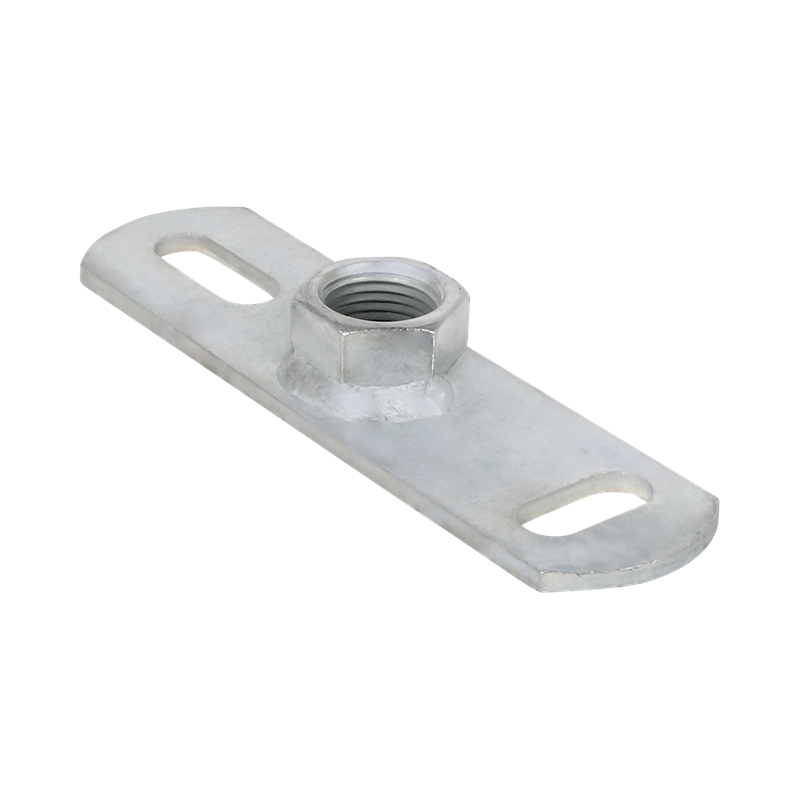

Walraven Wall Plate CO2 Welded (BUP1000)
fixing to wall or ceiling
Funkcijas
- fixings to wall, ceiling or floor (tension and bending loads allowed)
- slots at 90° to each other to simplify fixing
- with CO2 welded connection nut
- material: steel
- product is part of the Walraven UltraProtect® 1000 system
- suitable for in- and outdoor applications
- stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Raksti
| Product Number | Connection Thread | Total Height | Total Width | Total Length | Material Thickness | Fixing Slot | Fixing Slot 2 | Heart To Heart Distance | Maximum Allowed Load Faz | Saglabāto rakstu saraksts |
|---|---|---|---|---|---|---|---|---|---|---|
| Atsauces vēstule | G | H | W | L | MT | FS | FS 2 | k | Fa,z | |
| Vienības apraksts. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||
67198016
|
M16 | 20 | 38 | 145 | 4 | 30x11 | 25x11 | 100 | 6000 | |
|
67198021
|
G½” | 22 | 38 | 145 | 4 | 30x11 | 25x11 | 100 | 4000 | |
|
67198033
|
G1” | 27 | 38 | 145 | 4 | 30x11 | 25x11 | 100 | 5500 |
