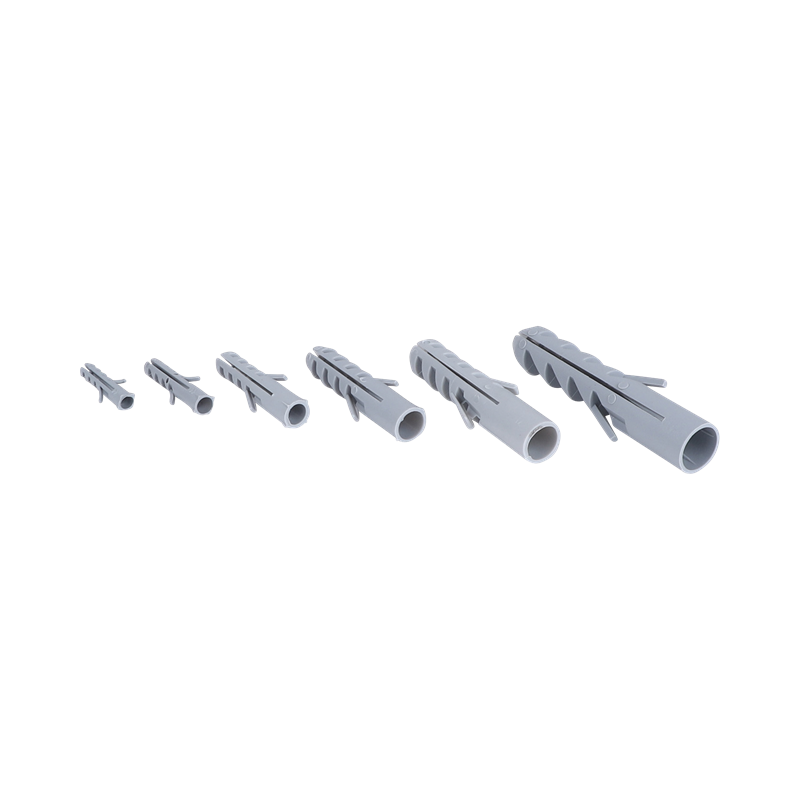

Walraven WEP-G Expansion Plug 10x50mm
economical expansion anchor for solid substrates
Features
- can be used with wood screws or chipboard screws
- suitable for variety of substrates
- does not expand prematurely
- applications: shelves, wall-mount cabinets, sanitary fixings, HVAC and plumbing fixings
- material: high quality PA6 polyamide
- substrate type: lightweight concrete, concrete, solid masonry, rock, sand-lime bricks, natural stone, gypsum
Specifications
Identification
| Product Number | 61001110 |
|---|
Product Dimensions
| Total Length (mm) Ref. letter: L | 50 |
|---|---|
| Minimum Screw Depth (mm) Ref. letter: ls,min | 58 |
| Drill Hole Diameter (mm) Ref. letter: d0 | 10 |
| Drill Hole Depth (mm) Ref. letter: h0 | 60 |
| Suitable For Screw Diameter (mm) | 6 - 8 |
| Total Height (mm) Ref. letter: H | 10 |
| Total Width (mm) Ref. letter: W | 10 |
Technical characteristics
| Colour | Grey |
|---|---|
| Material | Plastic |
| Material Quality | PA Nylon 6 (PolyAmide Nylon 6) |
| Pre-Positioned Installation? | Yes |
| Push-Through Installation? | No |
| Spaced Installation? | No |
| Suitable for | Concrete, Solid brick/masonry, Sand-lime block, Natural stone, Aerated concrete, Gypsum |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
| With Collar? | No |
| With Screw? | No |
Approvals & Declarations
| EN 1363-1 test report | No |
|---|
Weights
| Weight [g] (g) | 2.34 |
|---|---|
| Weight [kg] (kg) | 0 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 50 |
| Pack 1 Height (mm) | 75 |
| Pack 1 Width (mm) | 70 |
| Pack 1 Length (mm) | 100 |
| Pack 1 Weight (g) | 142 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 2000 |
| Pack 2 Height (mm) | 203 |
| Pack 2 Width (mm) | 290 |
| Pack 2 Length (mm) | 385 |
| Pack 2 Weight (g) | 6000 |
| Pack 3 Shape | Pallet ISO 0-1/1 |
| Pack 3 Qty | 64000 |
| Pack 3 Height (mm) | 1900 |
| Pack 3 Width (mm) | 1200 |
| Pack 3 Length (mm) | 800 |
| Pack 3 Weight (g) | 399000 |
| Pack 4 Shape | No Pack Type Available |
