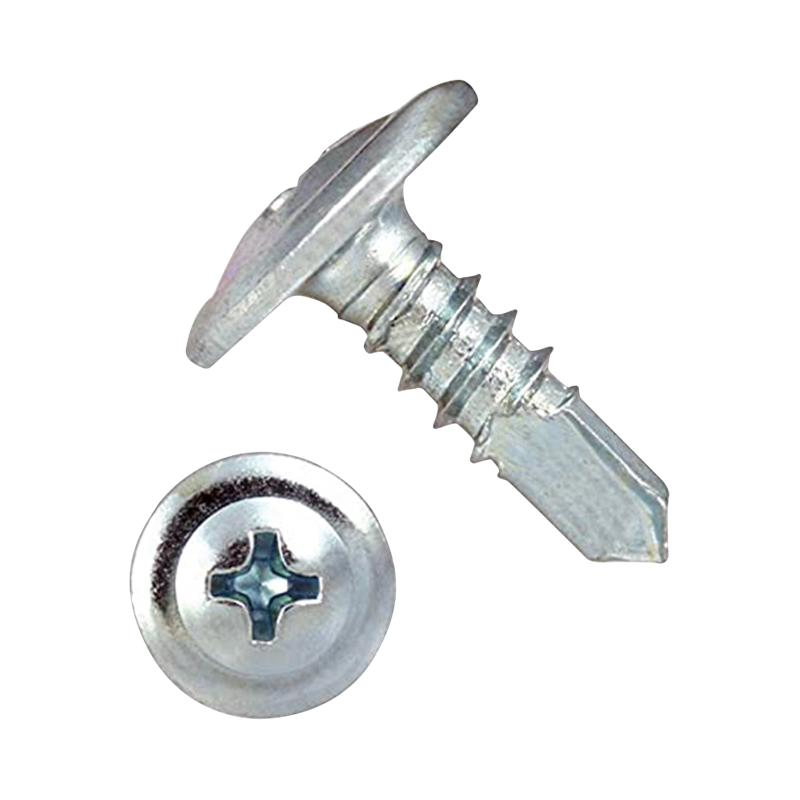

Walraven Wafer Head self-drill screw bright zp 4.2x13
metal stud fixing
Features
- for easy fixing Britclips® RSWB into metal stud wall
- material: steel
- zinc plated
Specifications
Identification
| Product Number | 6179413 |
|---|
Product Dimensions
| Thread Length (mm) Ref. letter: TL | 7 |
|---|---|
| Screw Length (mm) Ref. letter: ls | 13 |
| Screw Size Ref. letter: ds | 4.2 |
| Max. Tappable Thickness (mm) | 4 |
| Nominal Head Height (mm) Ref. letter: HH,n | 2 |
| Total Height (mm) Ref. letter: H | 10.5 |
| Total Width (mm) Ref. letter: W | 10.5 |
| Total Length (mm) Ref. letter: L | 15 |
| Head Width (mm) Ref. letter: HW | 10.5 |
| Thread Pitch (mm) Ref. letter: TP | 1.4 |
Technical characteristics
| Key Driver Size Ref. letter: Drive | PH2 |
|---|---|
| Tip Shape | Self-drilling |
| Colour | Zinc |
| Head Shape | Truss-Wafer Head |
| Material | Steel |
| Material Quality | st. 1.0402 |
| Screwing System | Phillips PH |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| Thread Direction | Right-Handed Thread |
| Thread Type Ref. letter: TT | BSD |
Weights
| Weight [g] (g) | 1.35 |
|---|---|
| Weight [kg] (kg) | 0 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 500 |
| Pack 1 Height (mm) | 57 |
| Pack 1 Width (mm) | 62 |
| Pack 1 Length (mm) | 130 |
| Pack 1 Weight (g) | 722 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 370000 |
| Pack 2 Height (mm) | 744 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 558280 |
| Pack 3 Shape | No Pack Type Available |
