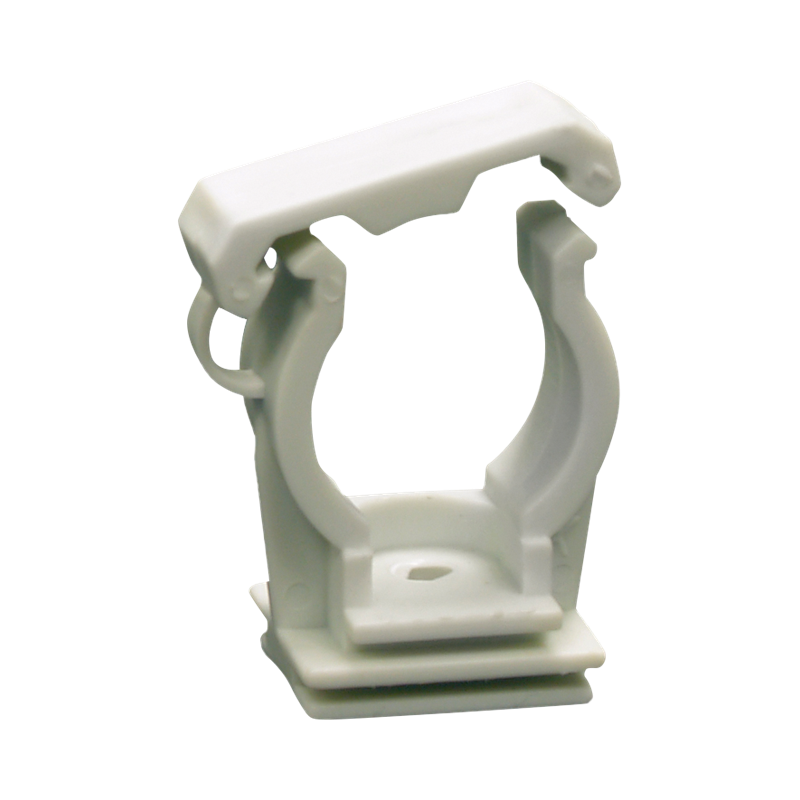

Walraven Closed Saddle PP grey 25mm
for securing conduits and pipes to walls, floors, or ceilings
Features
- one-part clamp
- space saving
- easy and rapid installation
- can also be installed with direct fixing gas tools
- installation in channel or rapid installation with screw M6
- hole for M6 screw
- total closing of the clip around the tube
- material: PP (polypropylene), grey
- halogen free
- UV resistant
Specifications
Identification
| Product Number | 0853125 |
|---|
Product Dimensions
| Outside Pipe Diameter (mm) Ref. letter: D | 25 |
|---|---|
| Total Height (mm) Ref. letter: H | 39.1 |
| Total Width (mm) Ref. letter: W | 31.6 |
| Total Depth (mm) Ref. letter: DtT | 20 |
| Connection Thread Ref. letter: G | None |
| DN Ref. letter: DN | None |
| Fixing Hole (mm) Ref. letter: FH | 5 |
| Pipe Diameter Imperial (in) Ref. letter: D | - |
Technical characteristics
| Closed? | Yes |
|---|---|
| Colour | Grey |
| Connection | Hole |
| Halogen Free? | Yes |
| Lock Facility | Single click |
| Material | Plastic |
| Material Quality | PP (PolyPropylene) |
| Maximum Number Of Tubes | 1 |
| Operating Temperature (°C) | -30 - 90 |
| Surface Protection | Untreated |
| Surface Treatment | Untreated |
| Tackable? | Yes |
| Type Of Fastening | Screw hole |
| UV Resistant? | Yes |
| With Lining? | No |
Approvals & Declarations
| KOT (National Technical Assessment, ITB) | No |
|---|---|
| KIWA product certificate | No |
| UL listing certificate | No |
| UPC listing certificate | No |
Safeloading
| Maximum Allowed Load Faz (N) Ref. letter: Fa,z | 100 |
|---|---|
| Breaking Load Fbz (N) Ref. letter: Fb,z | 300 |
| Calculated Breaking Load Fbx [kN] (kN) Ref. letter: Fb,x | 0 |
| Calculated Breaking Load Fbz [kN] (kN) Ref. letter: Fb,z | 0.3 |
| Calculated Maximum Allowed Load Fax [kN] (kN) Ref. letter: Fa,x | 0 |
| Maximum Allowed Load Faz [kN] (kN) Ref. letter: Fa,z | 0.1 |
Weights
| Weight [g] (g) | 6 |
|---|---|
| Weight [kg] (kg) | 0.01 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 110 |
| Pack 1 Width (mm) | 189 |
| Pack 1 Length (mm) | 239 |
| Pack 1 Weight (g) | 650 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 11400 |
| Pack 2 Height (mm) | 820 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 89146 |
| Pack 3 Shape | No Pack Type Available |
