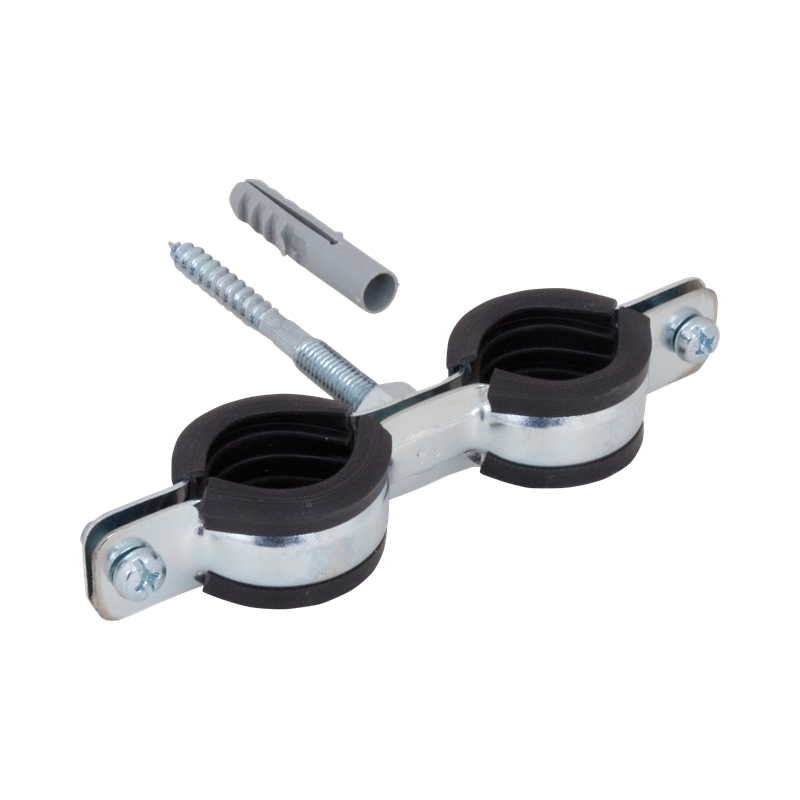

Walraven Pipe Clamp double EPDM Screw 8x80 + Plug 25-29mm
for heating pipes
Features
- two clamps on connection bracket
- for fixing of two pipes
- bolt-wood screw and plug included, does not require additional components
- material: steel
- pre-galvanized
Specifications
Identification
| Product Number | 0802129 |
|---|
Product Dimensions
| DN Ref. letter: DN | DN 20 |
|---|---|
| Heart To Heart Distance (mm) Ref. letter: k | 60 |
| Heart To Heart Distance (mm) Ref. letter: k | 60 |
| Length Wood Thread (mm) Ref. letter: Lh | 40 |
| Max. Wall Distance Center Clamp (mm) | 42 |
| Maximum Height (mm) Ref. letter: Ht,max | 111 |
| Min. Wall Distance Center Clamp (mm) | 42 |
| Outside Pipe Diameter (mm) Ref. letter: D | 25 - 29 |
| Pipe Diameter Imperial (in) Ref. letter: D | ¾ |
| Thread Size Ref. letter: TS | M8 |
| Total Depth (mm) Ref. letter: DtT | 23 |
| Total Height (mm) Ref. letter: H | 111 |
| Total Width (mm) Ref. letter: W | 142 |
Technical characteristics
| Key Driver Size Ref. letter: Drive | PH2 |
|---|---|
| Key Driver Type | Philips Head |
| Layer Thickness Surface Protection (µm) | 5 |
| Material | Steel |
| Material Quality | St. 1.0332 |
| Mounting Method | Bottom Side |
| Surface Protection | Pre-galvanized |
| Surface Treatment | Untreated |
| With Lining? | Yes |
Approvals & Declarations
| EPD (Environmental Product Declaration) | Yes |
|---|
Weights
| Weight [g] (g) | 109 |
|---|---|
| Weight [kg] (kg) | 0.11 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 25 |
| Pack 1 Height (mm) | 123 |
| Pack 1 Width (mm) | 200 |
| Pack 1 Length (mm) | 266 |
| Pack 1 Weight (g) | 2922 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 3150 |
| Pack 2 Height (mm) | 1005 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 389172 |
| Pack 3 Shape | No Pack Type Available |
