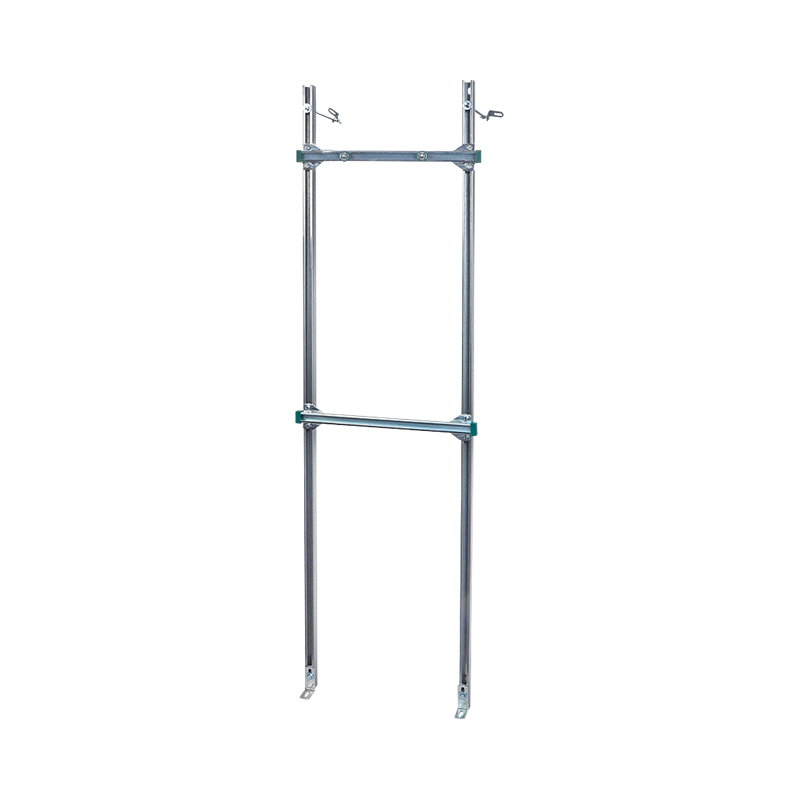

Walraven Gas Heater Support H=2.0m zp 900mm
fixing of gas heaters
Features
- universal kits for fixing all types of wall-mounted boilers and water heaters
- due to adjustability it is also possible to attach to sloping roof
- largely pre-assembled kit, adjustable bars for flexible positioning of the boiler or water heater
- 034600X: maximum allowed load: 180 kg
- material: steel
- studs: pre-galvanized; cross-beams: zinc plated
- each support consists of: 2 vertical rails 30x30mm, 2 horizontal crossbars 30x30mm, 2 floor connection brackets, 2 wall connection brackets (flexible in angle), fasteners (plugs or anchors are not included)
- each kit is wrapped with assembly instructions
Specifications
Identification
| Product Number | 0346002 |
|---|
Product Dimensions
| Total Depth (mm) Ref. letter: DtT | 900 |
|---|---|
| Total Height (mm) Ref. letter: H | 2000 |
| Total Width (mm) Ref. letter: W | 83 |
Technical characteristics
| Material | Steel |
|---|---|
| Material Quality | St. 1.0242 |
| Model | Frame-Set |
| Surface Protection | Pre-galvanized |
| Surface Treatment | Untreated |
Safeloading
| Maximum Load (N) | 1800 |
|---|
Weights
| Weight [g] (g) | 8630 |
|---|---|
| Weight [kg] (kg) | 8.63 |
Packaging information
| Pack 1 Shape | Unpacked |
|---|---|
| Pack 1 Qty | 1 |
| Pack 2 Shape | Pallet ISO 0-1/1 |
| Pack 2 Qty | 100 |
| Pack 2 Height (mm) | 500 |
| Pack 2 Width (mm) | 1200 |
| Pack 2 Length (mm) | 800 |
| Pack 2 Weight (g) | 863000 |
| Pack 3 Shape | No Pack Type Available |
