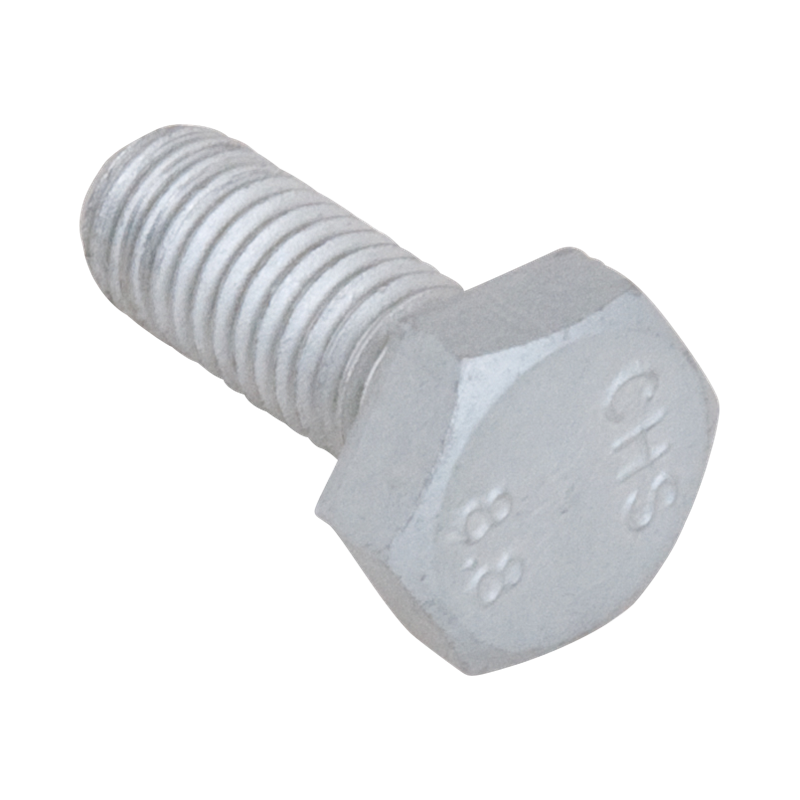

Walraven Hexagon Head Bolt DIN933 hdg M12x30mm

6141230

Get project support

Walraven Hexagon Head Bolt DIN933 hdg M12x30mm

6141230

Consent

Features

  • according to DIN 933
  • material: steel, strength class 8
  • hot dip galvanized

Specifications

Walraven Hexagon Head Bolt (hdg)

Identification

Identification
Product Number 6141230

Product Dimensions

Product Dimensions
Thread Size Ref. letter: TS M12
Screw Length (mm) Ref. letter: ls 30
Thread Length (mm) Ref. letter: TL 24.75
Nominal Head Height (mm) Ref. letter: HH,n 7.5
Head Width (mm) Ref. letter: HW 19
Total Height (mm) Ref. letter: H 19
Total Width (mm) Ref. letter: W 22
Total Length (mm) Ref. letter: L 38
Screw Size Ref. letter: ds M12
Thread Pitch (mm) Ref. letter: TP 1.75

Technical characteristics

Technical characteristics
Head Shape Hexagon Head
Key Driver Size Ref. letter: Drive WAF19
Colour Zinc
Layer Thickness Surface Protection (µm) 100
Material Steel
Material Quality Class 8.8
Norm / Standard DIN 933
Screwing System External hexagon
Surface Protection Hot Dip Galvanized
Surface Treatment Untreated
Thread Direction Right-Handed Thread
Thread Type Ref. letter: TT Metric
Threading Fully threaded

Approvals & Declarations

Approvals & Declarations
UPC listing certificate No

Weights

Weights
Weight [g] (g) 39
Weight [kg] (kg) 0.04

Packaging information

Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 100
Pack 1 Height (mm) 90
Pack 1 Width (mm) 110
Pack 1 Length (mm) 170
Pack 1 Weight (g) 4000
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 22200
Pack 2 Height (mm) 750
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 903000
Pack 3 Shape No Pack Type Available

Downloads & certificates

K4521 Walraven Hexagon Head Bolt (hdg) PDF | EN | Product info sheet Download
