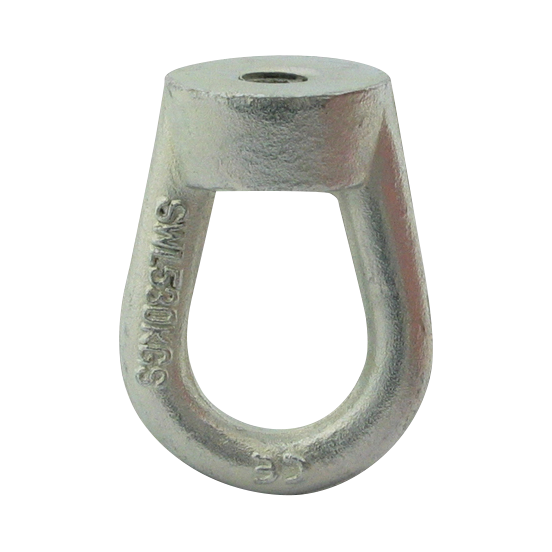

Walraven Bow Nut Weldless Eye Nut bzp M16

B6983016

Get project support

Walraven Bow Nut Weldless Eye Nut bzp M16

B6983016

Consent

Features

  • standard finish: zinc plated

Specifications

Walraven IH270 Bow Nut

Identification

Identification
Product Number B6983016

Product Dimensions

Product Dimensions
Inner Diameter (mm) Ref. letter: ID 30
Material Thickness (mm) Ref. letter: MT 12
Thread Pitch (mm) Ref. letter: TP 2
Thread Size Ref. letter: TS M16
Total Depth (mm) Ref. letter: DtT 38
Total Height (mm) Ref. letter: H 73
Total Width (mm) Ref. letter: W 54

Technical characteristics

Technical characteristics
Colour Zinc
Material Cast Iron
Surface Protection Zinc Plated
Surface Treatment Untreated
Thread Direction Right-Handed Thread
Thread Type Ref. letter: TT Metric

Safeloading

Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 10100
Maximum Allowed Load Faz [kN] (kN) Ref. letter: Fa,z 10.1

Weights

Weights
Weight [g] (g) 300
Weight [kg] (kg) 0.3

Packaging information

Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 80
Pack 1 Height (mm) 120
Pack 1 Width (mm) 250
Pack 1 Length (mm) 250
Pack 1 Weight (g) 24139
Pack 2 Shape No Pack Type Available

Downloads & certificates

P1255 Walraven IH270 Bow Nut PDF | EN | Product info sheet Download
