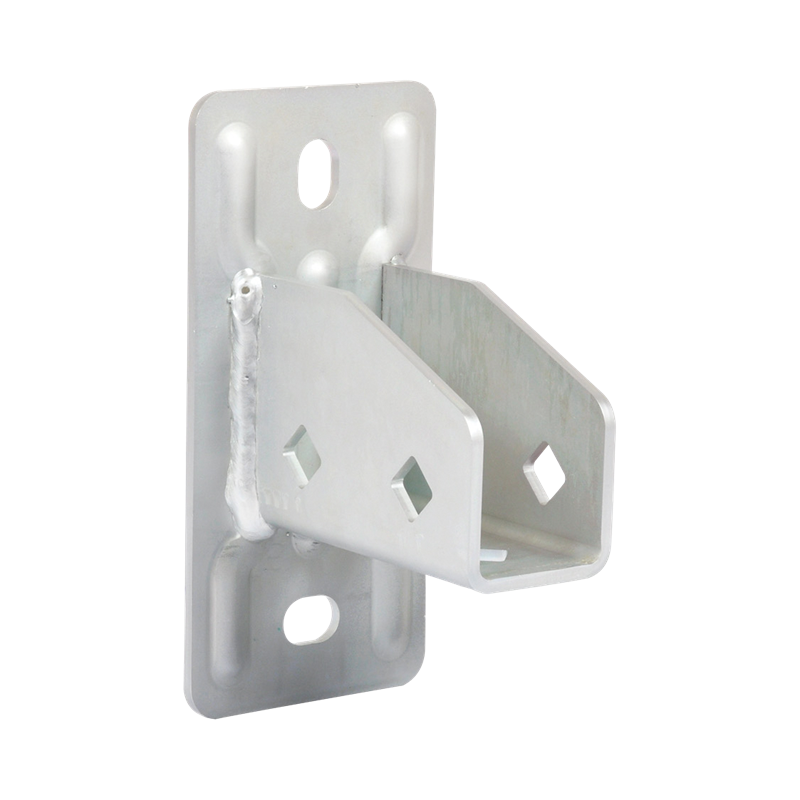

Walraven Strut Base Plate G2 zp 41/62/82

base foot to connect fixing rails

66583804 Product line: Walraven RapidStrut®
Download product sheet

Get project support

Walraven Strut Base Plate G2 zp 41/62/82

base foot to connect fixing rails

66583804

Consent

Features

  • flexible base plate for Walraven RapidStrut® rails
  • suitable for all Walraven RapidStrut® rail up to 82mm height
  • open side of rails 41x41 can be turned to all sides
  • at high loads we advise to install with throughbolts
  • material: steel
  • zinc plated
  • tested for fire safety according to EN 1366-1
Walraven Strut Base Plate G2 zp 41/62/82
Walraven Strut Base Plate G2 zp 41/62/82
Safe Load Explanation
Walraven Strut Base Plate G2 zp 41/62/82
Walraven Strut Base Plate G2 zp 41/62/82
Safe Load Explanation

Specifications

Walraven RapidStrut® Base Plate G2 (zp)

Identification
Identification
Product Number 66583804

Product Dimensions
Product Dimensions
Total Height (mm) Ref. letter: H 180
Total Width (mm) Ref. letter: W 85
Total Length (mm) Ref. letter: L 107
Width (mm) Ref. letter: w 42
Height (mm) Ref. letter: h 69
Length (mm) Ref. letter: l 100
Heart To Heart Distance (mm) Ref. letter: k 130.5
Anchoring Slot (mm) Ref. letter: AS 20x14
Fixing Hole (mm) Ref. letter: FH 13.8
Material Thickness (mm) Ref. letter: MT 4
Material Thickness 2 (mm) Ref. letter: MT 2 4
Fixing Slot (mm) Ref. letter: FS 20x14
Heart To Heart Distance 2 (mm) Ref. letter: k 2 50

Technical characteristics
Technical characteristics
For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82
Material Steel
Material Quality St. 1.0332
Surface Protection Zinc Plated
Surface Treatment Untreated

Approvals & Declarations
Approvals & Declarations
EN 1363-1 test report Yes
KOT (National Technical Assessment, ITB) Yes

Safeloading
Safeloading
Maximum Allowed Load Faz (N) Ref. letter: Fa,z 3636

Weights
Weights
Weight [g] (g) 950
Weight [kg] (kg) 0.95

Packaging information
Packaging information
Pack 1 Shape Cardboard Box
Pack 1 Qty 10
Pack 1 Height (mm) 184
Pack 1 Width (mm) 270
Pack 1 Length (mm) 404
Pack 1 Weight (g) 9890
Pack 2 Shape Pallet ISO 0-1/1
Pack 2 Qty 450
Pack 2 Height (mm) 1064
Pack 2 Width (mm) 1200
Pack 2 Length (mm) 800
Pack 2 Weight (g) 466000
Pack 3 Shape No Pack Type Available
