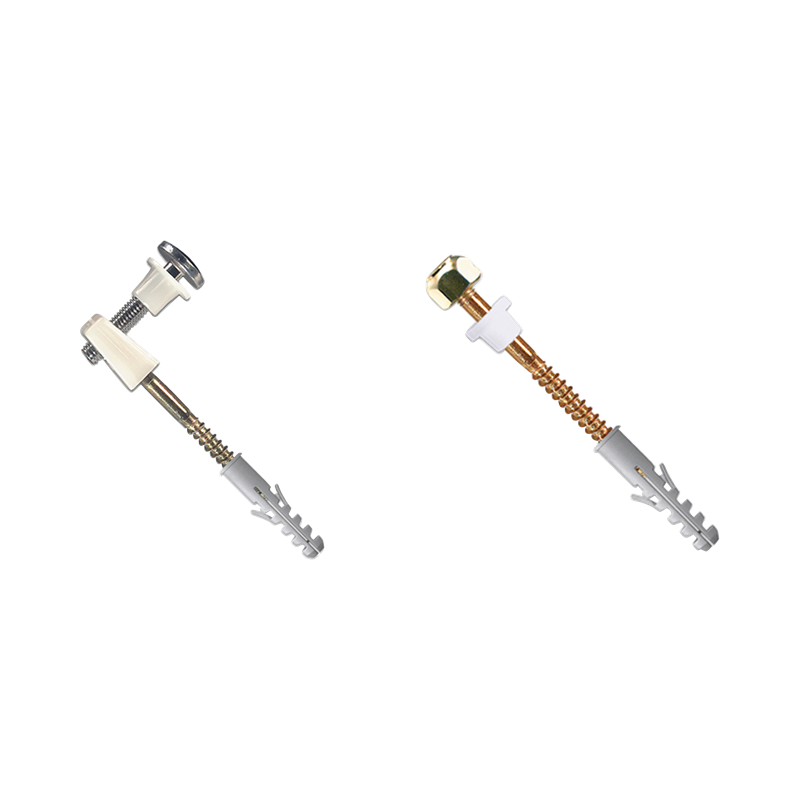

Walraven Toilet Fixing Kit zp M5x75mm
fixing of toilet
Features
- material: Part No. 0653X7X: made of steel; Part No. 0659275: made of brass
- material: Part No. 0653X7X: made of steel; Part No. 0659275: made of brass
- 2 pieces in each bag
Specifications
Identification
| Product Number | 0653275 |
|---|
Product Dimensions
| Plug Diameter (mm) | 8 |
|---|---|
| Plug Length (mm) Ref. letter: LP | 40 |
| Screw Length (mm) Ref. letter: ls | 75 |
| Screw Size Ref. letter: ds | 5.5 |
| Shaft Diameter (mm) Ref. letter: SD | 4.5 |
| Thread Size Ref. letter: TS | M5 |
| Total Height (mm) Ref. letter: H | 5.5 |
| Total Length (mm) Ref. letter: L | 75 |
| Total Width (mm) Ref. letter: W | 5.5 |
| Width Across Flats (mm) Ref. letter: WAF | 10 |
Technical characteristics
| Colour | Zinc |
|---|---|
| Head Shape | Thread End |
| Material | Steel |
| Model | Vertical |
| Screwing System | External hexagon |
| Surface Protection | Zinc Plated |
| Surface Treatment | Untreated |
| With Cover Cap? | No |
| With Nut? | Yes |
| With Plug? | Yes |
| With Washer? | Yes |
Approvals & Declarations
| CE mark | No |
|---|---|
| European Technical Assessment (ETA) | No |
Weights
| Weight [g] (g) | 29 |
|---|---|
| Weight [kg] (kg) | 0.03 |
Packaging information
| Pack 1 Shape | Cardboard Box |
|---|---|
| Pack 1 Qty | 100 |
| Pack 1 Height (mm) | 110 |
| Pack 1 Width (mm) | 190 |
| Pack 1 Length (mm) | 240 |
| Pack 1 Weight (g) | 3050 |
| Pack 2 Shape | Cardboard Box |
| Pack 2 Qty | 600 |
| Pack 2 Height (mm) | 248 |
| Pack 2 Width (mm) | 397 |
| Pack 2 Length (mm) | 598 |
| Pack 2 Weight (g) | 18600 |
| Pack 3 Shape | Pallet ISO 0-1/1 |
| Pack 3 Qty | 18000 |
| Pack 3 Height (mm) | 544 |
| Pack 3 Width (mm) | 1200 |
| Pack 3 Length (mm) | 800 |
| Pack 3 Weight (g) | 576000 |
| Pack 4 Shape | No Pack Type Available |
