Creating a new pipe support system on the island of Amsterdam

Published on: 6 May 2021


IJburg Urban Development
The Netherlands I Amsterdam


IJburg is a large-scale urban development project on the outskirts of Amsterdam, the Netherlands. Supporting the realisation of a significant urban extension with a size of 220 ha, which is developed on artificial islands, Walraven received the request to construct a pipe support system for the project.

Customer requirements

To enable the transportation of hot and cold water, a large diameter PE pipe-work had to be constructed. For economical and saving purposes, ground-coupled heat exchanger systems for residential use were selected. The contractor was using BIM methodology® to manage the project, and they asked Walraven to design a suitable pipe support system for this unique environment using Revit®.

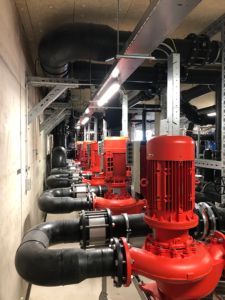

IJburg-case-study-pipeUsing Revit® software, Walraven engineers produced consistent and complete model-based designs and documentation for the project. By using the integrated BIM® objects files, which contain the full
specifications for Walraven products, we developed an effective and high-quality pipe support solutions for the diverse pipe installations.

Followed by the preparation of drawings and calculations, Walraven
also prefabricated the system, which altogether ensured a fast, safe
and precise assembly as well as time and cost savings on site.

Installation type:

  • Cooling pipes
  • Heater pipes

How can we help you?

Every installation is different. Fortunately, Walraven understands the specific challenges and acquires the competences needed to develop the right technical solutions. In addition to a comprehensive range of robust, durable and easy-to-install product systems, our engineers are always available to share their years of expertise and advise you on the safest, most durable and cost-effective solutions for your installation.
To find out how we can support you, visit our page of insulating pipe supports or request a call from your Walraven Regional Sales Manager (RSM) to discuss your requirements.
