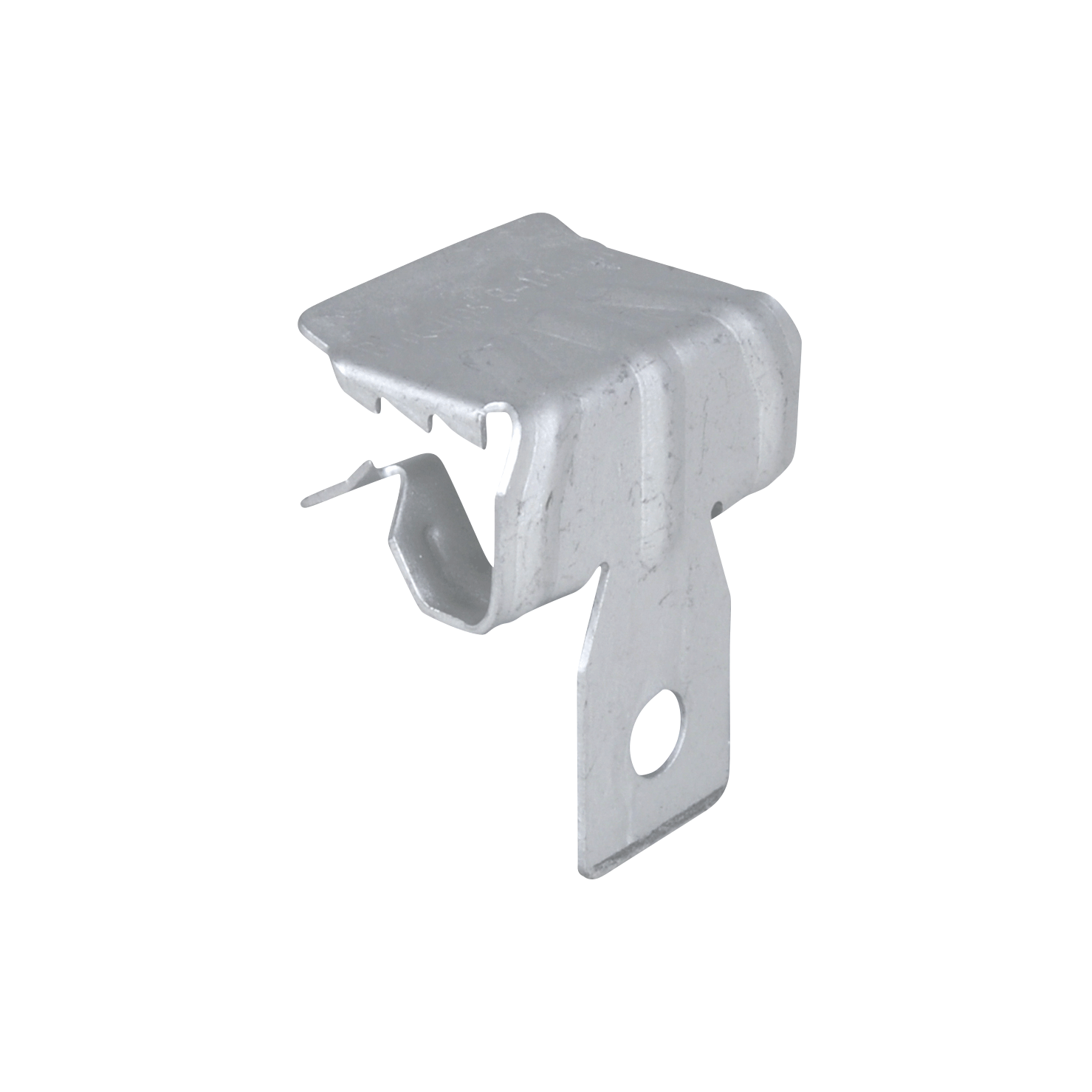

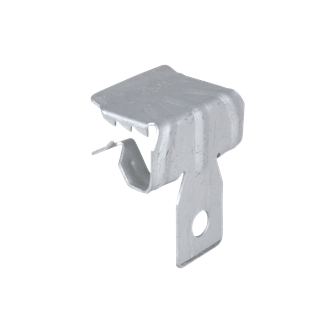

Features & benefits
- for a solid fixing to steel construction without the need for welding or drilling
- with fixing hole (Ø 7 mm) to fix S-hook, bolt/nut, etc.
- material: spring steel (type CS70)
- surface treatment: Delta-Tone 9000 (480 hours)
| Part No. | For flange size | Fixing Hole | Height | Total Height | Total Width | Total Depth | Maximum Allowed Load Faz | Pack 1 Type | Pack 1 QTY | Pack 2 Type | Pack 2 Qty | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | fs | FH | h | H | W | DtT | Fa,z | |||||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | |||||
| Part No.50020004 | For flange sizefs (mm) 2-4 | Fixing HoleFH (mm) 7 | Heighth (mm) - | Total HeightH (mm) 29 | Total WidthW (mm) 28 | Total DepthDtT (mm) 15 | Maximum Allowed Load FazFa,z (N) 450 | Pack 1 Type Kartonnen doos | Pack 1 QTY 100 | Pack 2 Type Kartonnen doos | Pack 2 Qty 500 | Product wish list |
| Part No.50020009 | For flange sizefs (mm) 4-8 | Fixing HoleFH (mm) 7 | Heighth (mm) - | Total HeightH (mm) 35 | Total WidthW (mm) 32 | Total DepthDtT (mm) 22 | Maximum Allowed Load FazFa,z (N) 950 | Pack 1 Type Kartonnen doos | Pack 1 QTY 100 | Pack 2 Type Kartonnen doos | Pack 2 Qty 400 | Product wish list |
| Part No.50020059 | For flange sizefs (mm) 4-8 | Fixing HoleFH (mm) 7 | Heighth (mm) - | Total HeightH (mm) 35 | Total WidthW (mm) 32 | Total DepthDtT (mm) 22 | Maximum Allowed Load FazFa,z (N) 950 | Pack 1 Type Zak | Pack 1 QTY 25 | Pack 2 Type Kartonnen doos | Pack 2 Qty 150 | Product wish list |
| Part No.50020016 | For flange sizefs (mm) 8-14 | Fixing HoleFH (mm) 7 | Heighth (mm) - | Total HeightH (mm) 45 | Total WidthW (mm) 32 | Total DepthDtT (mm) 22 | Maximum Allowed Load FazFa,z (N) 950 | Pack 1 Type Kartonnen doos | Pack 1 QTY 100 | Pack 2 Type Kartonnen doos | Pack 2 Qty 400 | Product wish list |
| Part No.50020066 | For flange sizefs (mm) 8-14 | Fixing HoleFH (mm) 7 | Heighth (mm) - | Total HeightH (mm) 45 | Total WidthW (mm) 32 | Total DepthDtT (mm) 22 | Maximum Allowed Load FazFa,z (N) 950 | Pack 1 Type Zak | Pack 1 QTY 25 | Pack 2 Type Kartonnen doos | Pack 2 Qty 150 | Product wish list |
| Part No.50020020 | For flange sizefs (mm) 14-20 | Fixing HoleFH (mm) 7 | Heighth (mm) - | Total HeightH (mm) 46 | Total WidthW (mm) 38 | Total DepthDtT (mm) 22 | Maximum Allowed Load FazFa,z (N) 950 | Pack 1 Type Kartonnen doos | Pack 1 QTY 100 | Pack 2 Type Kartonnen doos | Pack 2 Qty 400 | Product wish list |
| Part No.50020070 | For flange sizefs (mm) 14-20 | Fixing HoleFH (mm) 7 | Heighth (mm) - | Total HeightH (mm) 46 | Total WidthW (mm) 38 | Total DepthDtT (mm) 22 | Maximum Allowed Load FazFa,z (N) 950 | Pack 1 Type Zak | Pack 1 QTY 25 | Pack 2 Type Kartonnen doos | Pack 2 Qty 150 | Product wish list |
| Part No.50020030 | For flange sizefs (mm) 20-28 | Fixing HoleFH (mm) 7 | Heighth (mm) 47 | Total HeightH (mm) 56 | Total WidthW (mm) 38 | Total DepthDtT (mm) 22 | Maximum Allowed Load FazFa,z (N) 950 | Pack 1 Type Kartonnen doos | Pack 1 QTY 100 | Pack 2 Type Kartonnen doos | Pack 2 Qty 400 | Product wish list |
