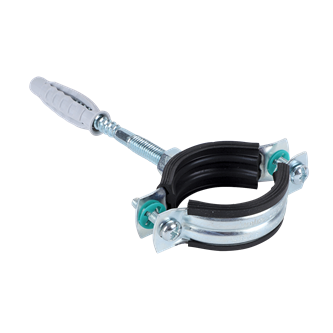

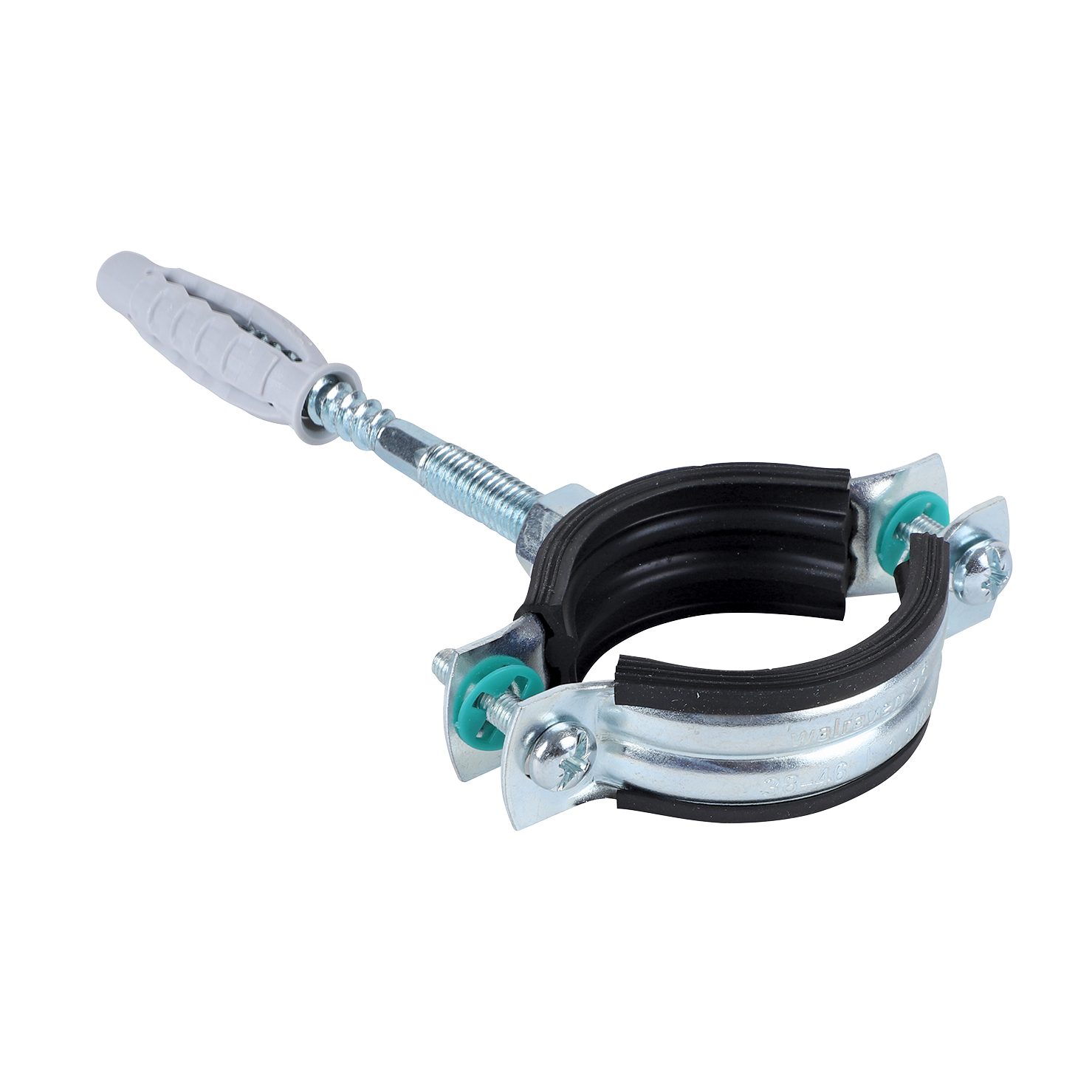

Features & benefits
- two-screw clamp
- gapless range
- anti-loss washers prevent screws from falling out during installation
- material: clamp and hanger bolt made of steel; plug made of PA (polyamide)
- zinc plated
| Part No. | Outside Pipe Diameter | Connection Thread | Connection Height | Drill Hole Depth | Drill Hole Diameter | Drive Hexagon | Drive Torx | Material Thickness | Total Height | Total Width | Total Depth | Maximum Allowed Load Faz | Pack 1 Shape | Pack 1 QTY | Pack 2 Shape | Pack 2 Qty | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | G | Gh | h0 | d0 | SW | T | MT | H | W | DtT | Fa,z | |||||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||||||||
| Part No.33245081 | Outside Pipe DiameterD (mm) 75-81 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 50 | Drill Hole Depthh0 (mm) 50 | Drill Hole Diameterd0 (mm) 10 | Drive HexagonSW 6 | Drive TorxT 25 | Material ThicknessMT (mm) 1.5 | Total HeightH (mm) 209 | Total WidthW (mm) 124 | Total DepthDtT (mm) 23 | Maximum Allowed Load FazFa,z (N) 850 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 1800 | Product wish list |
| Part No.33245095 | Outside Pipe DiameterD (mm) 88-95 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 50 | Drill Hole Depthh0 (mm) 50 | Drill Hole Diameterd0 (mm) 10 | Drive HexagonSW 6 | Drive TorxT 25 | Material ThicknessMT (mm) 2 | Total HeightH (mm) 227 | Total WidthW (mm) 143 | Total DepthDtT (mm) 26 | Maximum Allowed Load FazFa,z (N) 1000 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 1350 | Product wish list |
| Part No.33245112 | Outside Pipe DiameterD (mm) 104-112 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 60 | Drill Hole Depthh0 (mm) 60 | Drill Hole Diameterd0 (mm) 12 | Drive HexagonSW 8 | Drive TorxT 25 | Material ThicknessMT (mm) 2 | Total HeightH (mm) 242 | Total WidthW (mm) 159 | Total DepthDtT (mm) 26 | Maximum Allowed Load FazFa,z (N) 1000 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 900 | Product wish list |
| Part No.33245118 | Outside Pipe DiameterD (mm) 113-118 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 60 | Drill Hole Depthh0 (mm) 60 | Drill Hole Diameterd0 (mm) 12 | Drive HexagonSW 8 | Drive TorxT 25 | Material ThicknessMT (mm) 2 | Total HeightH (mm) 251 | Total WidthW (mm) 168 | Total DepthDtT (mm) 26 | Maximum Allowed Load FazFa,z (N) 1000 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 900 | Product wish list |
| Part No.33245127 | Outside Pipe DiameterD (mm) 119-127 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 60 | Drill Hole Depthh0 (mm) 60 | Drill Hole Diameterd0 (mm) 12 | Drive HexagonSW 8 | Drive TorxT 25 | Material ThicknessMT (mm) 2 | Total HeightH (mm) 261 | Total WidthW (mm) 178 | Total DepthDtT (mm) 26 | Maximum Allowed Load FazFa,z (N) 1000 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 900 | Product wish list |
| Part No.33245137 | Outside Pipe DiameterD (mm) 128-137 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 60 | Drill Hole Depthh0 (mm) 60 | Drill Hole Diameterd0 (mm) 12 | Drive HexagonSW 8 | Drive TorxT 25 | Material ThicknessMT (mm) 2 | Total HeightH (mm) 268 | Total WidthW (mm) 185 | Total DepthDtT (mm) 26 | Maximum Allowed Load FazFa,z (N) 1000 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 900 | Product wish list |
| Part No.33245144 | Outside Pipe DiameterD (mm) 138-144 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 60 | Drill Hole Depthh0 (mm) 60 | Drill Hole Diameterd0 (mm) 12 | Drive HexagonSW 8 | Drive TorxT 25 | Material ThicknessMT (mm) 2 | Total HeightH (mm) 277 | Total WidthW (mm) 194 | Total DepthDtT (mm) 26 | Maximum Allowed Load FazFa,z (N) 1000 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 900 | Product wish list |
| Part No.33245162 | Outside Pipe DiameterD (mm) 154-162 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 60 | Drill Hole Depthh0 (mm) 60 | Drill Hole Diameterd0 (mm) 12 | Drive HexagonSW 8 | Drive TorxT 25 | Material ThicknessMT (mm) 2 | Total HeightH (mm) 286 | Total WidthW (mm) 211 | Total DepthDtT (mm) 26 | Maximum Allowed Load FazFa,z (N) 1000 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 675 | Product wish list |
| Part No.33245172 | Outside Pipe DiameterD (mm) 163-172 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 60 | Drill Hole Depthh0 (mm) 60 | Drill Hole Diameterd0 (mm) 12 | Drive HexagonSW 8 | Drive TorxT 25 | Material ThicknessMT (mm) 2.5 | Total HeightH (mm) 310 | Total WidthW (mm) 227 | Total DepthDtT (mm) 28 | Maximum Allowed Load FazFa,z (N) 2350 | Pack 1 Shape Cardboard Box | Pack 1 QTY 15 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 540 | Product wish list |
| Part No.33245205 | Outside Pipe DiameterD (mm) 195-205 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 60 | Drill Hole Depthh0 (mm) 60 | Drill Hole Diameterd0 (mm) 12 | Drive HexagonSW 8 | Drive TorxT 25 | Material ThicknessMT (mm) 2.5 | Total HeightH (mm) 343 | Total WidthW (mm) 260 | Total DepthDtT (mm) 28 | Maximum Allowed Load FazFa,z (N) 2350 | Pack 1 Shape Cardboard Box | Pack 1 QTY 10 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 360 | Product wish list |
| Part No.33245225 | Outside Pipe DiameterD (mm) 217-225 | Connection ThreadG M8/M10 | Connection HeightGh (mm) 60 | Drill Hole Depthh0 (mm) 60 | Drill Hole Diameterd0 (mm) 12 | Drive HexagonSW 8 | Drive TorxT 25 | Material ThicknessMT (mm) 2.5 | Total HeightH (mm) 361 | Total WidthW (mm) 279 | Total DepthDtT (mm) 28 | Maximum Allowed Load FazFa,z (N) 2350 | Pack 1 Shape Cardboard Box | Pack 1 QTY 10 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 270 | Product wish list |
