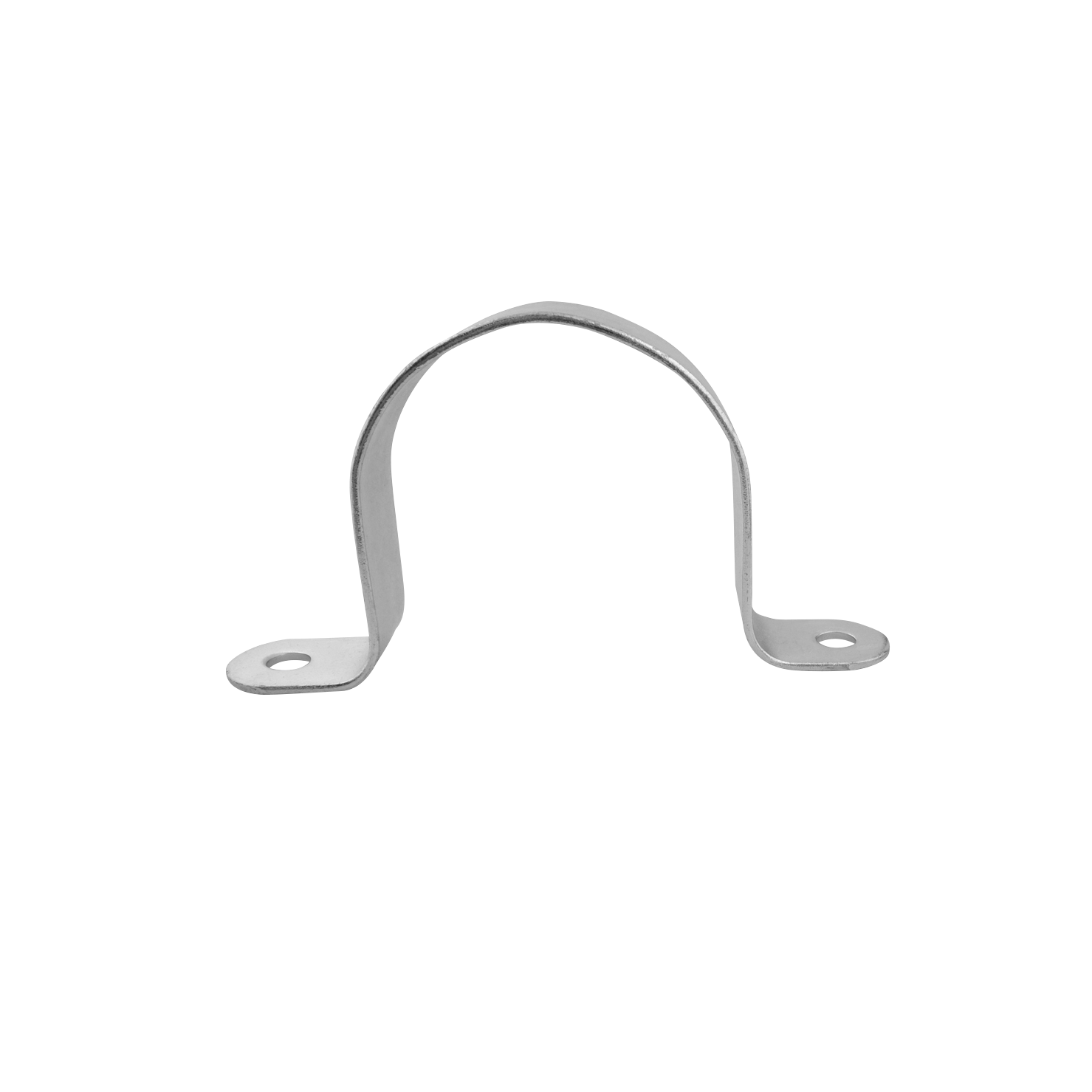

Features & benefits
- stainless steel
^ array:11 [ 0 => 78458 1 => 78459 2 => 78460 3 => 78461 4 => 78462 5 => 78463 6 => 78464 7 => 78465 8 => 78466 9 => 78467 10 => 78468 ]
^ array:14 [ "WF000393" => array:3 [ "heading" => "Outside Pipe Diameter" "label" => "D" "abbreviation" => "mm" ] "WF000390" => array:3 [ "heading" => "Pipe Diameter Imperial" "label" => "D" "abbreviation" => "″" ] "WF000168" => array:3 [ "heading" => "Fixing Hole" "label" => "FH" "abbreviation" => "mm" ] "WF000172" => array:3 [ "heading" => "Fixing Slot" "label" => "FS" "abbreviation" => "mm" ] "WF000196" => array:3 [ "heading" => "Heart To Heart Distance" "label" => "k" "abbreviation" => "mm" ] "WF000291" => array:3 [ "heading" => "Material Thickness" "label" => "MT" "abbreviation" => "mm" ] "WF000210" => array:3 [ "heading" => "Total Height" "label" => "H" "abbreviation" => "mm" ] "WF000636" => array:3 [ "heading" => "Total Width" "label" => "W" "abbreviation" => "mm" ] "WF000126" => array:3 [ "heading" => "Total Depth" "label" => "DtT" "abbreviation" => "mm" ] "WF000262" => array:3 [ "heading" => "Maximum Allowed Load Faz" "label" => "Fa,z" "abbreviation" => "N" ] "WF000887" => array:3 [ "heading" => "Pack 1 Type" "label" => "" "abbreviation" => "" ] "WF000886" => array:3 [ "heading" => "Pack 1 QTY" "label" => "" "abbreviation" => "" ] "WF000356" => array:3 [ "heading" => "Pack 2 Type" "label" => "" "abbreviation" => "" ] "WF000355" => array:3 [ "heading" => "Pack 2 Qty" "label" => "" "abbreviation" => "" ] ]
^ array:14 [ "WF000393" => 21.0 "WF000390" => "½" "WF000168" => 7.0 "WF000172" => "" "WF000196" => 60.0 "WF000291" => 3.0 "WF000210" => 22.0 "WF000636" => 25.0 "WF000126" => 86.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 27.0 "WF000390" => "¾" "WF000168" => 7.0 "WF000172" => "" "WF000196" => 71.0 "WF000291" => 3.0 "WF000210" => 28.0 "WF000636" => 25.0 "WF000126" => 97.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 34.0 "WF000390" => "1" "WF000168" => 7.0 "WF000172" => "" "WF000196" => 74.0 "WF000291" => 3.0 "WF000210" => 35.0 "WF000636" => 25.0 "WF000126" => 100.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 42.0 "WF000390" => "1¼" "WF000168" => 11.0 "WF000172" => "" "WF000196" => 94.0 "WF000291" => 3.0 "WF000210" => 43.0 "WF000636" => 30.0 "WF000126" => 126.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 48.0 "WF000390" => "1½" "WF000168" => 11.0 "WF000172" => "" "WF000196" => 104.0 "WF000291" => 3.0 "WF000210" => 49.0 "WF000636" => 30.0 "WF000126" => 136.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 60.0 "WF000390" => "2" "WF000168" => 11.0 "WF000172" => "" "WF000196" => 114.0 "WF000291" => 3.0 "WF000210" => 61.0 "WF000636" => 30.0 "WF000126" => 146.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 76.0 "WF000390" => "2½" "WF000168" => 14.0 "WF000172" => "" "WF000196" => 142.0 "WF000291" => 3.0 "WF000210" => 77.0 "WF000636" => 40.0 "WF000126" => 182.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 89.0 "WF000390" => "3" "WF000168" => 14.0 "WF000172" => "" "WF000196" => 154.0 "WF000291" => 3.0 "WF000210" => 89.0 "WF000636" => 40.0 "WF000126" => 194.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 114.0 "WF000390" => "4" "WF000168" => 14.0 "WF000172" => "" "WF000196" => 184.0 "WF000291" => 3.0 "WF000210" => 114.0 "WF000636" => 40.0 "WF000126" => 224.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 140.0 "WF000390" => "5" "WF000168" => 14.0 "WF000172" => "" "WF000196" => 219.0 "WF000291" => 5.0 "WF000210" => 142.0 "WF000636" => 40.0 "WF000126" => 259.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
^ array:14 [ "WF000393" => 168.0 "WF000390" => "6" "WF000168" => 14.0 "WF000172" => "" "WF000196" => 244.0 "WF000291" => 5.0 "WF000210" => 171.0 "WF000636" => 40.0 "WF000126" => 284.0 "WF000262" => "" "WF000887" => "Unpacked" "WF000886" => 1 "WF000356" => "No Pack Type Available" "WF000355" => "" ]
| Part No. | Outside Pipe Diameter | Pipe Diameter Imperial | Fixing Hole | Heart To Heart Distance | Material Thickness | Total Height | Total Width | Total Depth | Pack 1 Type | Pack 1 QTY | Pack 2 Type | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | D | FH | k | MT | H | W | DtT | ||||
| Unit desc. | (mm) | (″) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||||
| Part No.B3107021 | Outside Pipe DiameterD (mm) 21 | Pipe Diameter ImperialD (″) ½ | Fixing HoleFH (mm) 7 | Heart To Heart Distancek (mm) 60 | Material ThicknessMT (mm) 3 | Total HeightH (mm) 22 | Total WidthW (mm) 25 | Total DepthDtT (mm) 86 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107027 | Outside Pipe DiameterD (mm) 27 | Pipe Diameter ImperialD (″) ¾ | Fixing HoleFH (mm) 7 | Heart To Heart Distancek (mm) 71 | Material ThicknessMT (mm) 3 | Total HeightH (mm) 28 | Total WidthW (mm) 25 | Total DepthDtT (mm) 97 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107034 | Outside Pipe DiameterD (mm) 34 | Pipe Diameter ImperialD (″) 1 | Fixing HoleFH (mm) 7 | Heart To Heart Distancek (mm) 74 | Material ThicknessMT (mm) 3 | Total HeightH (mm) 35 | Total WidthW (mm) 25 | Total DepthDtT (mm) 100 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107042 | Outside Pipe DiameterD (mm) 42 | Pipe Diameter ImperialD (″) 1¼ | Fixing HoleFH (mm) 11 | Heart To Heart Distancek (mm) 94 | Material ThicknessMT (mm) 3 | Total HeightH (mm) 43 | Total WidthW (mm) 30 | Total DepthDtT (mm) 126 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107048 | Outside Pipe DiameterD (mm) 48 | Pipe Diameter ImperialD (″) 1½ | Fixing HoleFH (mm) 11 | Heart To Heart Distancek (mm) 104 | Material ThicknessMT (mm) 3 | Total HeightH (mm) 49 | Total WidthW (mm) 30 | Total DepthDtT (mm) 136 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107060 | Outside Pipe DiameterD (mm) 60 | Pipe Diameter ImperialD (″) 2 | Fixing HoleFH (mm) 11 | Heart To Heart Distancek (mm) 114 | Material ThicknessMT (mm) 3 | Total HeightH (mm) 61 | Total WidthW (mm) 30 | Total DepthDtT (mm) 146 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107076 | Outside Pipe DiameterD (mm) 76 | Pipe Diameter ImperialD (″) 2½ | Fixing HoleFH (mm) 14 | Heart To Heart Distancek (mm) 142 | Material ThicknessMT (mm) 3 | Total HeightH (mm) 77 | Total WidthW (mm) 40 | Total DepthDtT (mm) 182 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107089 | Outside Pipe DiameterD (mm) 89 | Pipe Diameter ImperialD (″) 3 | Fixing HoleFH (mm) 14 | Heart To Heart Distancek (mm) 154 | Material ThicknessMT (mm) 3 | Total HeightH (mm) 89 | Total WidthW (mm) 40 | Total DepthDtT (mm) 194 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107114 | Outside Pipe DiameterD (mm) 114 | Pipe Diameter ImperialD (″) 4 | Fixing HoleFH (mm) 14 | Heart To Heart Distancek (mm) 184 | Material ThicknessMT (mm) 3 | Total HeightH (mm) 114 | Total WidthW (mm) 40 | Total DepthDtT (mm) 224 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107140 | Outside Pipe DiameterD (mm) 140 | Pipe Diameter ImperialD (″) 5 | Fixing HoleFH (mm) 14 | Heart To Heart Distancek (mm) 219 | Material ThicknessMT (mm) 5 | Total HeightH (mm) 142 | Total WidthW (mm) 40 | Total DepthDtT (mm) 259 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B3107168 | Outside Pipe DiameterD (mm) 168 | Pipe Diameter ImperialD (″) 6 | Fixing HoleFH (mm) 14 | Heart To Heart Distancek (mm) 244 | Material ThicknessMT (mm) 5 | Total HeightH (mm) 171 | Total WidthW (mm) 40 | Total DepthDtT (mm) 284 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
