Features & benefits

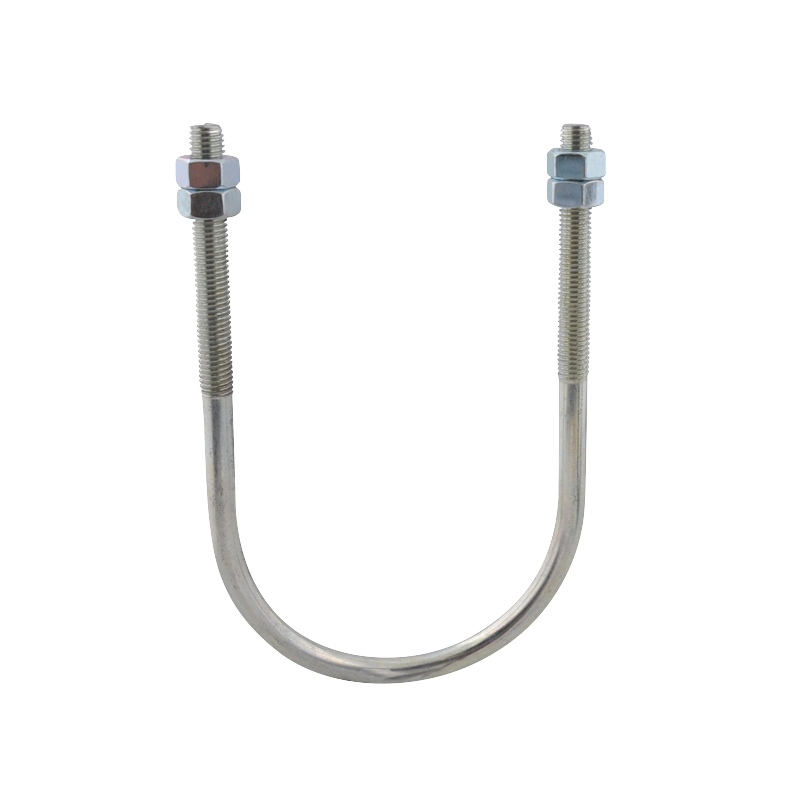

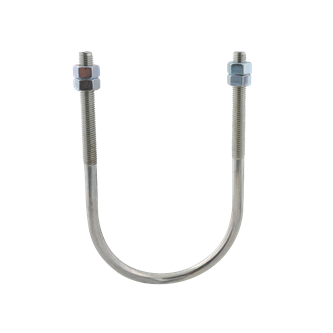

- U-Bolt with thread
- inculding nuts
- long arms with thread
- material: steel
- zinc plated
| Part No. | Outside Pipe Diameter | Pipe Diameter Imperial | DN | Thread Size | Thread Length | Total Height | Total Width | Total Depth | Heart To Heart Distance | Pack 1 Shape | Pack 1 QTY | Pack 2 Shape | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | D | D | TS | TL | H | W | DtT | k | ||||
| Unit desc. | (mm) | (in) | (mm) | (mm) | (mm) | (mm) | (mm) | ||||||
| Part No.B7123035 | Outside Pipe DiameterD (mm) 34 | Pipe Diameter ImperialD (in) 1 | DND DN 25 | Thread SizeTS M6 | Thread LengthTL (mm) 85 | Total HeightH (mm) 111 | Total WidthW (mm) 46 | Total DepthDtT (mm) 6 | Heart To Heart Distancek (mm) 40 | Pack 1 Shape Cardboard Box | Pack 1 QTY 100 | Pack 2 Shape No Pack Type Available | Product wish list |
| Part No.B7123042 | Outside Pipe DiameterD (mm) 42 | Pipe Diameter ImperialD (in) 1¼ | DND DN 32 | Thread SizeTS M6 | Thread LengthTL (mm) 90 | Total HeightH (mm) 122 | Total WidthW (mm) 65 | Total DepthDtT (mm) 10 | Heart To Heart Distancek (mm) 55 | Pack 1 Shape Cardboard Box | Pack 1 QTY 100 | Pack 2 Shape No Pack Type Available | Product wish list |
| Part No.B7123049 | Outside Pipe DiameterD (mm) 48 | Pipe Diameter ImperialD (in) 1½ | DND DN 40 | Thread SizeTS M6 | Thread LengthTL (mm) 90 | Total HeightH (mm) 127 | Total WidthW (mm) 71 | Total DepthDtT (mm) 10 | Heart To Heart Distancek (mm) 61 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape No Pack Type Available | Product wish list |
| Part No.B7123061 | Outside Pipe DiameterD (mm) 60 | Pipe Diameter ImperialD (in) 2 | DND DN 50 | Thread SizeTS M10 | Thread LengthTL (mm) 90 | Total HeightH (mm) 140 | Total WidthW (mm) 80 | Total DepthDtT (mm) 10 | Heart To Heart Distancek (mm) 70 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape No Pack Type Available | Product wish list |
| Part No.B7123076 | Outside Pipe DiameterD (mm) 77 | Pipe Diameter ImperialD (in) 2½ | DND DN 65 | Thread SizeTS M10 | Thread LengthTL (mm) 90 | Total HeightH (mm) 152 | Total WidthW (mm) 96 | Total DepthDtT (mm) 10 | Heart To Heart Distancek (mm) 86 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape No Pack Type Available | Product wish list |
| Part No.B7123089 | Outside Pipe DiameterD (mm) 92 | Pipe Diameter ImperialD (in) 3 | DND DN 80 | Thread SizeTS M12 | Thread LengthTL (mm) 90 | Total HeightH (mm) 168 | Total WidthW (mm) 114 | Total DepthDtT (mm) 12 | Heart To Heart Distancek (mm) 102 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape No Pack Type Available | Product wish list |
| Part No.B7123115 | Outside Pipe DiameterD (mm) 116 | Pipe Diameter ImperialD (in) 4 | DND DN 100 | Thread SizeTS M12 | Thread LengthTL (mm) 90 | Total HeightH (mm) 193 | Total WidthW (mm) 138 | Total DepthDtT (mm) 12 | Heart To Heart Distancek (mm) 126 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape No Pack Type Available | Product wish list |
| Part No.B7123140 | Outside Pipe DiameterD (mm) 142 | Pipe Diameter ImperialD (in) 5 | DND DN 125 | Thread SizeTS M12 | Thread LengthTL (mm) 90 | Total HeightH (mm) 213 | Total WidthW (mm) 164 | Total DepthDtT (mm) 12 | Heart To Heart Distancek (mm) 152 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape No Pack Type Available | Product wish list |
| Part No.B7123168 | Outside Pipe DiameterD (mm) 172 | Pipe Diameter ImperialD (in) 6 | DND DN 150 | Thread SizeTS M12 | Thread LengthTL (mm) 90 | Total HeightH (mm) 240 | Total WidthW (mm) 194 | Total DepthDtT (mm) 12 | Heart To Heart Distancek (mm) 182 | Pack 1 Shape Cardboard Box | Pack 1 QTY 25 | Pack 2 Shape No Pack Type Available | Product wish list |
