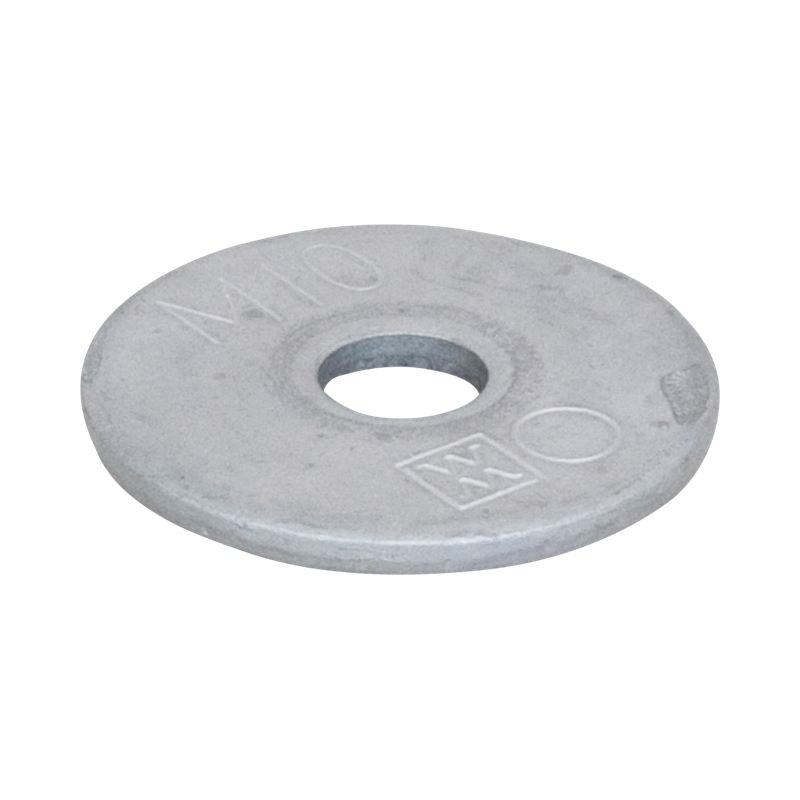

Walraven RapidStrut® Washer – Flat (BUP1000)

to make Strut rail fabrications

Features & benefits

flat washer
material: steel 1.0332
product is part of the Walraven Walraven UltraProtect® 1000 system
suitable for in- and outdoor applications
stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
Also available in stainless steel 1.4401 (AISI 316).
Ø 10.5 and above tested for fire safety.

^ array:3 [
  0 => 64318
  1 => 64320
  2 => 64321
]

^ array:12 [
  "WF000440" => array:3 [
    "heading" => "For Rail Type"
    "label" => ""
    "abbreviation" => ""
  ]
  "WF000210" => array:3 [
    "heading" => "Total Height"
    "label" => "H"
    "abbreviation" => "mm"
  ]
  "WF000636" => array:3 [
    "heading" => "Total Width"
    "label" => "W"
    "abbreviation" => "mm"
  ]
  "WF000250" => array:3 [
    "heading" => "Total Length"
    "label" => "L"
    "abbreviation" => "mm"
  ]
  "WF000129" => array:3 [
    "heading" => "Inner Diameter"
    "label" => "ID"
    "abbreviation" => "mm"
  ]
  "WF000172" => array:3 [
    "heading" => "Fixing Slot"
    "label" => "FS"
    "abbreviation" => "mm"
  ]
  "WF000132" => array:3 [
    "heading" => "Outer Diameter"
    "label" => "OD"
    "abbreviation" => "mm"
  ]
  "WF000291" => array:3 [
    "heading" => "Material Thickness"
    "label" => "MT"
    "abbreviation" => "mm"
  ]
  "WF000887" => array:3 [
    "heading" => "Pack 1 Type"
    "label" => ""
    "abbreviation" => ""
  ]
  "WF000886" => array:3 [
    "heading" => "Pack 1 QTY"
    "label" => ""
    "abbreviation" => ""
  ]
  "WF000356" => array:3 [
    "heading" => "Pack 2 Type"
    "label" => ""
    "abbreviation" => ""
  ]
  "WF000355" => array:3 [
    "heading" => "Pack 2 Qty"
    "label" => ""
    "abbreviation" => ""
  ]
]

^ array:12 [
  "WF000440" => "41x21, 41x41, 41x51, 41x62, 41x82"
  "WF000210" => 3.0
  "WF000636" => 40.0
  "WF000250" => 40.0
  "WF000129" => 8.4
  "WF000172" => ""
  "WF000132" => 40.0
  "WF000291" => 3.0
  "WF000887" => "Bag"
  "WF000886" => 50
  "WF000356" => "Cardboard Box"
  "WF000355" => 250
]

^ array:12 [
  "WF000440" => "41x21, 41x41, 41x51, 41x62, 41x82"
  "WF000210" => 3.0
  "WF000636" => 40.0
  "WF000250" => 40.0
  "WF000129" => 10.5
  "WF000172" => ""
  "WF000132" => 40.0
  "WF000291" => 3.0
  "WF000887" => "Bag"
  "WF000886" => 50
  "WF000356" => "Cardboard Box"
  "WF000355" => 250
]

^ array:12 [
  "WF000440" => "41x21, 41x41, 41x51, 41x62, 41x82"
  "WF000210" => 3.0
  "WF000636" => 40.0
  "WF000250" => 40.0
  "WF000129" => 13.0
  "WF000172" => ""
  "WF000132" => 40.0
  "WF000291" => 3.0
  "WF000887" => "Bag"
  "WF000886" => 50
  "WF000356" => "Cardboard Box"
  "WF000355" => 250
]

Part No.	For Rail Type	Total Height	Total Width	Total Length	Inner Diameter	Outer Diameter	Material Thickness	Pack 1 Type	Pack 1 QTY	Pack 2 Type	Pack 2 Qty	Product wish list
Ref. letter		H	W	L	ID	OD	MT
Unit desc.		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
Part No.65381508	For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82	Total HeightH (mm) 3	Total WidthW (mm) 40	Total LengthL (mm) 40	Inner DiameterID (mm) 8.4	Outer DiameterOD (mm) 40	Material ThicknessMT (mm) 3	Pack 1 Type Bag	Pack 1 QTY 50	Pack 2 Type Cardboard Box	Pack 2 Qty 250	Product wish list
Part No.65381510	For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82	Total HeightH (mm) 3	Total WidthW (mm) 40	Total LengthL (mm) 40	Inner DiameterID (mm) 10.5	Outer DiameterOD (mm) 40	Material ThicknessMT (mm) 3	Pack 1 Type Bag	Pack 1 QTY 50	Pack 2 Type Cardboard Box	Pack 2 Qty 250	Product wish list
Part No.65381512	For Rail Type 41x21, 41x41, 41x51, 41x62, 41x82	Total HeightH (mm) 3	Total WidthW (mm) 40	Total LengthL (mm) 40	Inner DiameterID (mm) 13	Outer DiameterOD (mm) 40	Material ThicknessMT (mm) 3	Pack 1 Type Bag	Pack 1 QTY 50	Pack 2 Type Cardboard Box	Pack 2 Qty 250	Product wish list
