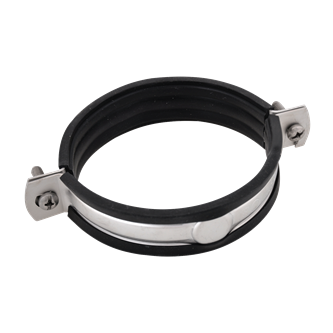

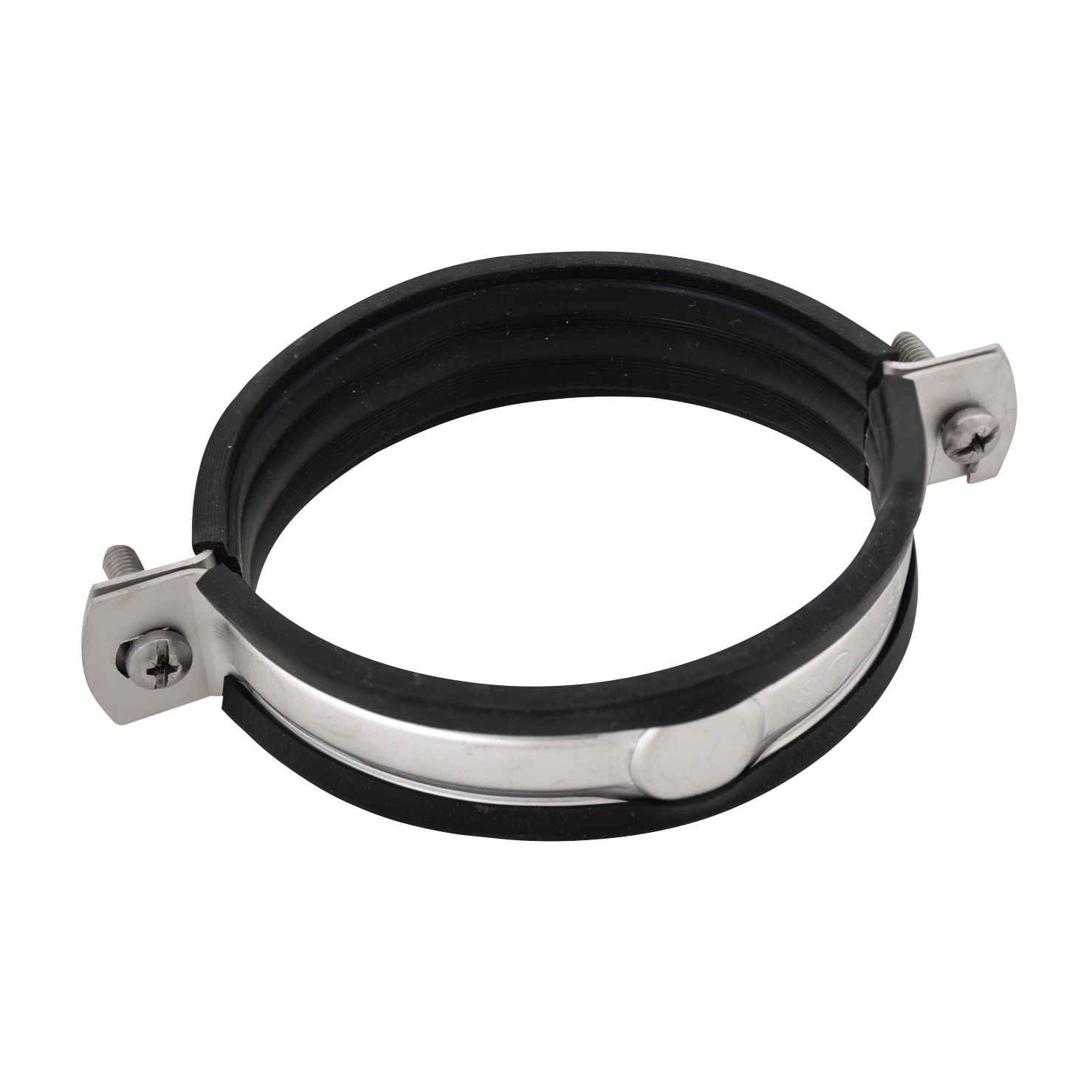

Features & benefits
- two-part clamp with two locking bolts
- with quick locking system
- material: stainless steel 1.4404 (AISI 316L)
- noise insulating lining, EPDM rubber, black
- sound insulating lining according DIN 4109
.png?w=100){kind=logo}
| Part No. | Outside Pipe Diameter | Connection Thread | Total Height | Total Width | Total Depth | Material Width | Maximum Allowed Load Faz | Approvals | Pack 1 Type | Pack 1 QTY | Pack 2 Type | Pack 2 Qty | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | G | H | W | DtT | MW | Fa,z | ||||||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | |||||||
| Part No.4137100 | Outside Pipe DiameterD (mm) 100 | Connection ThreadG M8 | Total HeightH (mm) 117 | Total WidthW (mm) 147 | Total DepthDtT (mm) 25 | Material WidthMW (mm) 25 | Maximum Allowed Load FazFa,z (N) 850 | Approvals ITB (KOT), EPD | Pack 1 Type Kartonnen doos | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 1575 | Product wish list |
| Part No.4137125 | Outside Pipe DiameterD (mm) 125 | Connection ThreadG M8 | Total HeightH (mm) 142 | Total WidthW (mm) 172 | Total DepthDtT (mm) 25 | Material WidthMW (mm) 25 | Maximum Allowed Load FazFa,z (N) 850 | Approvals ITB (KOT), EPD | Pack 1 Type Kartonnen doos | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 1125 | Product wish list |
| Part No.4137150 | Outside Pipe DiameterD (mm) 150 | Connection ThreadG M8 | Total HeightH (mm) 167 | Total WidthW (mm) 197 | Total DepthDtT (mm) 25 | Material WidthMW (mm) 25 | Maximum Allowed Load FazFa,z (N) 850 | Approvals ITB (KOT), EPD | Pack 1 Type Kartonnen doos | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 1125 | Product wish list |
| Part No.4137160 | Outside Pipe DiameterD (mm) 160 | Connection ThreadG M8 | Total HeightH (mm) 178 | Total WidthW (mm) 207 | Total DepthDtT (mm) 25 | Material WidthMW (mm) 25 | Maximum Allowed Load FazFa,z (N) 850 | Approvals ITB (KOT), EPD | Pack 1 Type Kartonnen doos | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 675 | Product wish list |
| Part No.4137200 | Outside Pipe DiameterD (mm) 200 | Connection ThreadG M8 | Total HeightH (mm) 217 | Total WidthW (mm) 247 | Total DepthDtT (mm) 25 | Material WidthMW (mm) 25 | Maximum Allowed Load FazFa,z (N) 850 | Approvals ITB (KOT), EPD | Pack 1 Type Kartonnen doos | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 1125 | Product wish list |
| Part No.4137250 | Outside Pipe DiameterD (mm) 250 | Connection ThreadG M8 | Total HeightH (mm) 267 | Total WidthW (mm) 297 | Total DepthDtT (mm) 25 | Material WidthMW (mm) 25 | Maximum Allowed Load FazFa,z (N) 850 | Approvals ITB (KOT), EPD | Pack 1 Type Kartonnen doos | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 1575 | Product wish list |
| Part No.4137315 | Outside Pipe DiameterD (mm) 315 | Connection ThreadG M8 | Total HeightH (mm) 332 | Total WidthW (mm) 361 | Total DepthDtT (mm) 25 | Material WidthMW (mm) 25 | Maximum Allowed Load FazFa,z (N) 850 | Approvals ITB (KOT), EPD | Pack 1 Type Kartonnen doos | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 800 | Product wish list |
| Part No.4137355 | Outside Pipe DiameterD (mm) 355 | Connection ThreadG M8 | Total HeightH (mm) 372 | Total WidthW (mm) 402 | Total DepthDtT (mm) 25 | Material WidthMW (mm) 25 | Maximum Allowed Load FazFa,z (N) 850 | Approvals ITB (KOT), EPD | Pack 1 Type Kartonnen doos | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 800 | Product wish list |
| Part No.4137400 | Outside Pipe DiameterD (mm) 400 | Connection ThreadG M8 | Total HeightH (mm) 417 | Total WidthW (mm) 446 | Total DepthDtT (mm) 25 | Material WidthMW (mm) 25 | Maximum Allowed Load FazFa,z (N) 850 | Approvals ITB (KOT), EPD | Pack 1 Type Kartonnen doos | Pack 1 QTY 20 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 200 | Product wish list |
