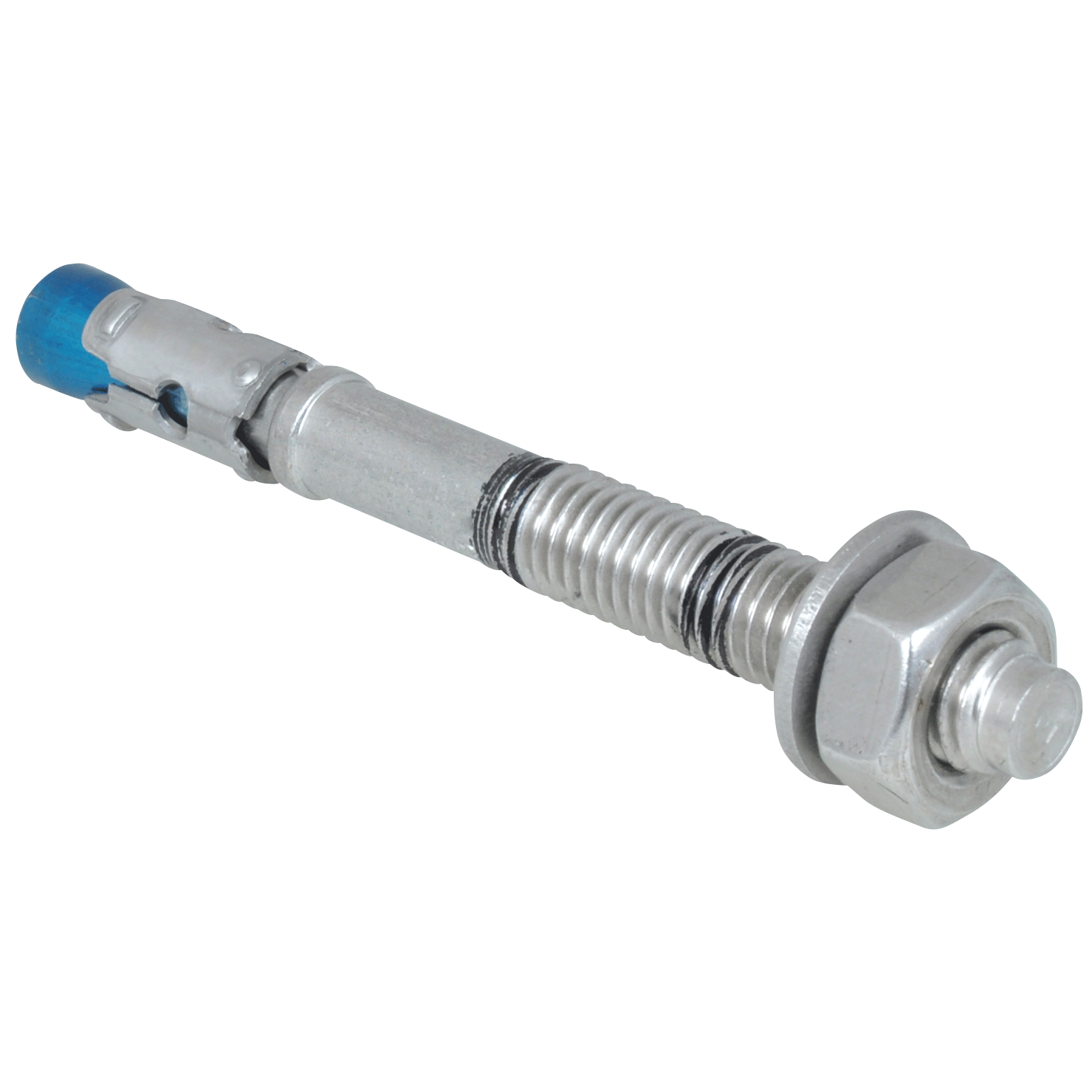

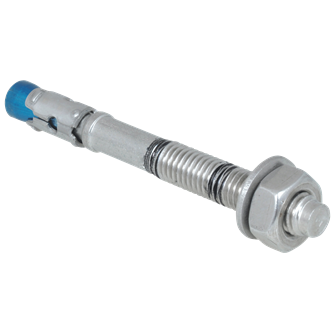

| Part No. | Thread Size | Total Height | Total Width | Total Length | Drill Hole Diameter | Drill Hole Depth | Minimum Substrate Thickness | Standard Embedment Depth | Maximum Fixture Thickness | Pack 1 Shape | Pack 1 QTY | Pack 2 Shape | Pack 2 Qty | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | TS | H | W | L | d0 | h0 | hmin | hnom | tfix,max | |||||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||||||
| Part No.609871080 | Thread SizeTS M8 | Total HeightH (mm) 13 | Total WidthW (mm) 13 | Total LengthL (mm) 75 | Drill Hole Diameterd0 (mm) 8 | Drill Hole Depthh0 (mm) 55 | Minimum Substrate Thicknesshmin (mm) 100 | Standard Embedment Depthhnom (mm) 55 | Maximum Fixture Thicknesstfix,max (mm) 10 | Pack 1 Shape Cardboard Box | Pack 1 QTY 100 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 16000 | Product wish list |
| Part No.609871081 | Thread SizeTS M8 | Total HeightH (mm) 13 | Total WidthW (mm) 13 | Total LengthL (mm) 115 | Drill Hole Diameterd0 (mm) 8 | Drill Hole Depthh0 (mm) 55 | Minimum Substrate Thicknesshmin (mm) 100 | Standard Embedment Depthhnom (mm) 55 | Maximum Fixture Thicknesstfix,max (mm) 50 | Pack 1 Shape Cardboard Box | Pack 1 QTY 100 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 16000 | Product wish list |
| Part No.609871100 | Thread SizeTS M10 | Total HeightH (mm) 17 | Total WidthW (mm) 17 | Total LengthL (mm) 95 | Drill Hole Diameterd0 (mm) 10 | Drill Hole Depthh0 (mm) 69 | Minimum Substrate Thicknesshmin (mm) 100 | Standard Embedment Depthhnom (mm) 69 | Maximum Fixture Thicknesstfix,max (mm) 15 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 8000 | Product wish list |
| Part No.609871101 | Thread SizeTS M10 | Total HeightH (mm) 17 | Total WidthW (mm) 17 | Total LengthL (mm) 130 | Drill Hole Diameterd0 (mm) 10 | Drill Hole Depthh0 (mm) 69 | Minimum Substrate Thicknesshmin (mm) 100 | Standard Embedment Depthhnom (mm) 69 | Maximum Fixture Thicknesstfix,max (mm) 50 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 8000 | Product wish list |
| Part No.609871120 | Thread SizeTS M12 | Total HeightH (mm) 19 | Total WidthW (mm) 19 | Total LengthL (mm) 125 | Drill Hole Diameterd0 (mm) 12 | Drill Hole Depthh0 (mm) 80 | Minimum Substrate Thicknesshmin (mm) 140 | Standard Embedment Depthhnom (mm) 80 | Maximum Fixture Thicknesstfix,max (mm) 30 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 6000 | Product wish list |
| Part No.609871121 | Thread SizeTS M12 | Total HeightH (mm) 19 | Total WidthW (mm) 19 | Total LengthL (mm) 150 | Drill Hole Diameterd0 (mm) 12 | Drill Hole Depthh0 (mm) 80 | Minimum Substrate Thicknesshmin (mm) 140 | Standard Embedment Depthhnom (mm) 80 | Maximum Fixture Thicknesstfix,max (mm) 55 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 4000 | Product wish list |
