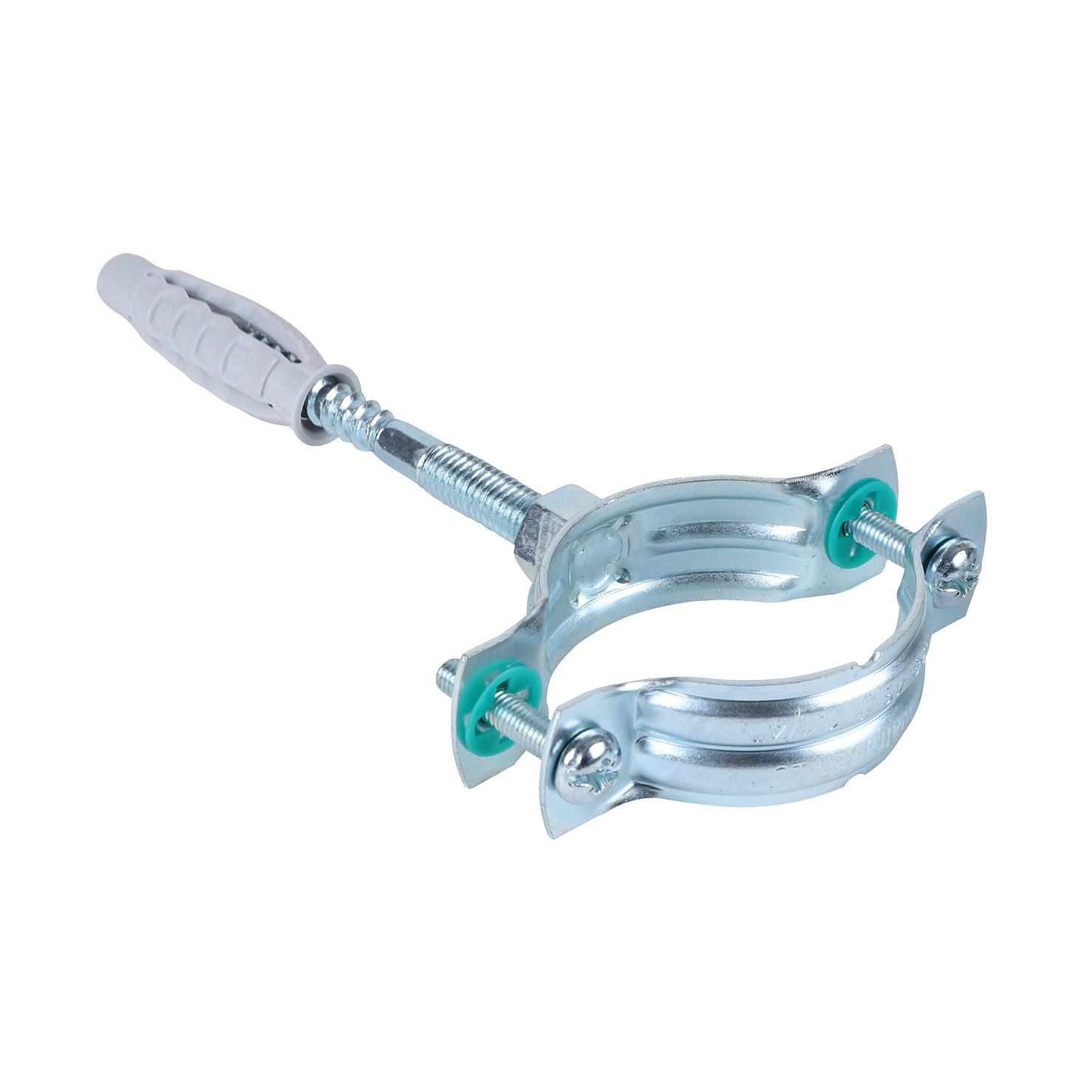

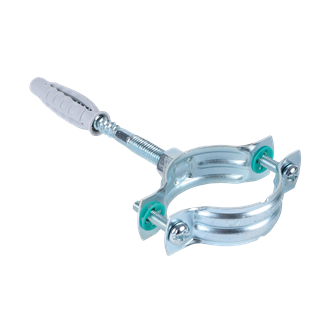

Walraven 2S Clamp Set
Walraven 2S Clamp Set

Walraven 2S Clamp Set

effortless installation: push into drill hole and twist

Features & benefits

  • two-screw clamp
  • gapless range
  • anti-loss washers prevent screws from falling out during installation
  • material: clamp and hanger bolt made of steel; plug made of PA (polyamide)
  • zinc plated
  • ≤DN80 Double thread screw M8x80; plug ø10x50
  • >DN80 Double thread screw M10x80; plug ø12x60
Ask a Question

Specifications and Packaging

Part No. Outside Pipe DiameterConnection ThreadConnection HeightDrill Hole DepthDrill Hole DiameterDrive HexagonDrive TorxMaterial ThicknessTotal HeightTotal WidthTotal DepthMaximum Allowed Load FazPack 1 ShapePack 1 QTYPack 2 ShapePack 2 Qty Product
wish list
Ref. letter DGGhh0d0SWTMTHWDtTFa,z
Unit desc. (mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(N)
Part No.33215019
Outside Pipe DiameterD (mm)
15-19
Connection ThreadG
M8
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
1
Total HeightH (mm)
133
Total WidthW (mm)
51
Total DepthDtT (mm)
20
Maximum Allowed Load FazFa,z (N)
700
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
6300		Product wish list
Part No.33215024
Outside Pipe DiameterD (mm)
20-24
Connection ThreadG
M8
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
1
Total HeightH (mm)
140
Total WidthW (mm)
56
Total DepthDtT (mm)
20
Maximum Allowed Load FazFa,z (N)
700
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
6300		Product wish list
Part No.33215030
Outside Pipe DiameterD (mm)
25-30
Connection ThreadG
M8
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
1
Total HeightH (mm)
147
Total WidthW (mm)
62
Total DepthDtT (mm)
20
Maximum Allowed Load FazFa,z (N)
700
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
6300		Product wish list
Part No.33215037
Outside Pipe DiameterD (mm)
31-37
Connection ThreadG
M8
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
1
Total HeightH (mm)
154
Total WidthW (mm)
69
Total DepthDtT (mm)
20
Maximum Allowed Load FazFa,z (N)
700
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
6300		Product wish list
Part No.33215046
Outside Pipe DiameterD (mm)
38-46
Connection ThreadG
M8
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
1.25
Total HeightH (mm)
163
Total WidthW (mm)
78
Total DepthDtT (mm)
20
Maximum Allowed Load FazFa,z (N)
850
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
4500		Product wish list
Part No.33215052
Outside Pipe DiameterD (mm)
47-52
Connection ThreadG
M8
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
1.25
Total HeightH (mm)
165
Total WidthW (mm)
84
Total DepthDtT (mm)
20
Maximum Allowed Load FazFa,z (N)
850
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
3150		Product wish list
Part No.33215061
Outside Pipe DiameterD (mm)
53-61
Connection ThreadG
M8
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
1.25
Total HeightH (mm)
174
Total WidthW (mm)
93
Total DepthDtT (mm)
20
Maximum Allowed Load FazFa,z (N)
850
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
3150		Product wish list
Part No.33215067
Outside Pipe DiameterD (mm)
62-67
Connection ThreadG
M8
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
1.25
Total HeightH (mm)
175
Total WidthW (mm)
99
Total DepthDtT (mm)
20
Maximum Allowed Load FazFa,z (N)
850
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
2250		Product wish list
Part No.33215081
Outside Pipe DiameterD (mm)
75-81
Connection ThreadG
M8/M10
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
1.5
Total HeightH (mm)
194
Total WidthW (mm)
118
Total DepthDtT (mm)
20
Maximum Allowed Load FazFa,z (N)
1400
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
2250		Product wish list
Part No.33215095
Outside Pipe DiameterD (mm)
88-95
Connection ThreadG
M8/M10
Connection HeightGh (mm)
50
Drill Hole Depthh0 (mm)
50
Drill Hole Diameterd0 (mm)
10
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
2
Total HeightH (mm)
209
Total WidthW (mm)
136
Total DepthDtT (mm)
23
Maximum Allowed Load FazFa,z (N)
2000
Pack 1 Shape
Cardboard Box
Pack 1 QTY
50
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
1800		Product wish list
Part No.33215112
Outside Pipe DiameterD (mm)
104-112
Connection ThreadG
M8/M10
Connection HeightGh (mm)
60
Drill Hole Depthh0 (mm)
60
Drill Hole Diameterd0 (mm)
12
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
2
Total HeightH (mm)
236
Total WidthW (mm)
153
Total DepthDtT (mm)
23
Maximum Allowed Load FazFa,z (N)
2000
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
900		Product wish list
Part No.33215118
Outside Pipe DiameterD (mm)
113-118
Connection ThreadG
M8/M10
Connection HeightGh (mm)
60
Drill Hole Depthh0 (mm)
60
Drill Hole Diameterd0 (mm)
12
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
2
Total HeightH (mm)
242
Total WidthW (mm)
153
Total DepthDtT (mm)
23
Maximum Allowed Load FazFa,z (N)
2000
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
900		Product wish list
Part No.33215127
Outside Pipe DiameterD (mm)
119-127
Connection ThreadG
M8/M10
Connection HeightGh (mm)
60
Drill Hole Depthh0 (mm)
60
Drill Hole Diameterd0 (mm)
12
Drive HexagonSW
6
Drive TorxT
25
Material ThicknessMT (mm)
2
Total HeightH (mm)
258
Total WidthW (mm)
168
Total DepthDtT (mm)
23
Maximum Allowed Load FazFa,z (N)
2000
Pack 1 Shape
Cardboard Box
Pack 1 QTY
25
Pack 2 Shape
Pallet ISO 1
Pack 2 Qty
900		Product wish list
