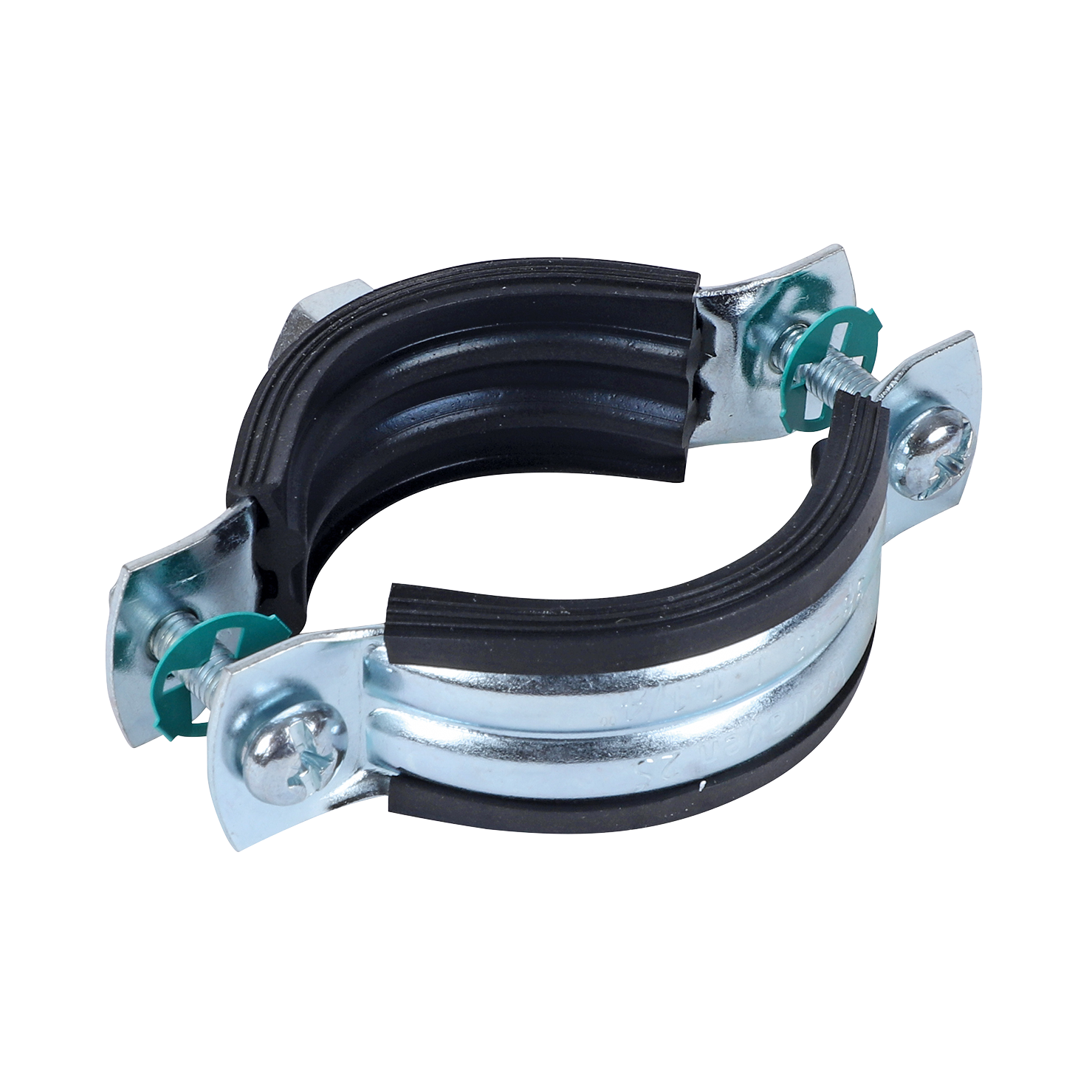

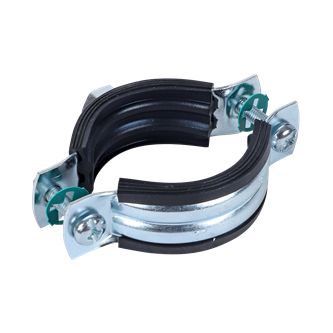

| Part No. | Outside Pipe Diameter | DN | Pipe Diameter Imperial | Connection Thread | Total Height | Total Width | Total Depth | Material Width | Material Thickness | Screw Size | Maximum Allowed Load Faz | Pack 1 Shape | Pack 1 QTY | Pack 2 Shape | Pack 2 Qty | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | D | D | G | H | W | DtT | MW | MT | ds | Fa,z | |||||
| Unit desc. | (mm) | (in) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||||||||
| Part No.33335014 | Outside Pipe DiameterD (mm) 10-14 | DND DN 8 | Pipe Diameter ImperialD (in) ¼ | Connection ThreadG M8 | Total HeightH (mm) 32 | Total WidthW (mm) 51 | Total DepthDtT (mm) 23 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1 | Screw Sizeds M5 | Maximum Allowed Load FazFa,z (N) 330 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 10800 | Product wish list |
| Part No.33335019 | Outside Pipe DiameterD (mm) 15-19 | DND DN 10 | Pipe Diameter ImperialD (in) ⅜ | Connection ThreadG M8 | Total HeightH (mm) 37 | Total WidthW (mm) 56 | Total DepthDtT (mm) 23 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1 | Screw Sizeds M5 | Maximum Allowed Load FazFa,z (N) 330 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 10800 | Product wish list |
| Part No.33335024 | Outside Pipe DiameterD (mm) 20-24 | DND DN 15 | Pipe Diameter ImperialD (in) ½ | Connection ThreadG M8 | Total HeightH (mm) 43 | Total WidthW (mm) 62 | Total DepthDtT (mm) 23 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1 | Screw Sizeds M5 | Maximum Allowed Load FazFa,z (N) 330 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 10800 | Product wish list |
| Part No.33335030 | Outside Pipe DiameterD (mm) 25-30 | DND DN 20 | Pipe Diameter ImperialD (in) ¾ | Connection ThreadG M8 | Total HeightH (mm) 50 | Total WidthW (mm) 69 | Total DepthDtT (mm) 23 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1 | Screw Sizeds M5 | Maximum Allowed Load FazFa,z (N) 330 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 7200 | Product wish list |
| Part No.33335037 | Outside Pipe DiameterD (mm) 31-37 | DND DN 25 | Pipe Diameter ImperialD (in) 1 | Connection ThreadG M8 | Total HeightH (mm) 56 | Total WidthW (mm) 75 | Total DepthDtT (mm) 23 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1 | Screw Sizeds M5 | Maximum Allowed Load FazFa,z (N) 330 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 6300 | Product wish list |
| Part No.33335046 | Outside Pipe DiameterD (mm) 38-46 | DND DN 32 | Pipe Diameter ImperialD (in) 1¼ | Connection ThreadG M8 | Total HeightH (mm) 66 | Total WidthW (mm) 84 | Total DepthDtT (mm) 23 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1.25 | Screw Sizeds M5 | Maximum Allowed Load FazFa,z (N) 500 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 6300 | Product wish list |
| Part No.33335052 | Outside Pipe DiameterD (mm) 47-52 | DND DN 40 | Pipe Diameter ImperialD (in) 1½ | Connection ThreadG M8 | Total HeightH (mm) 75 | Total WidthW (mm) 93 | Total DepthDtT (mm) 23 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1.25 | Screw Sizeds M5 | Maximum Allowed Load FazFa,z (N) 500 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 5400 | Product wish list |
| Part No.33335061 | Outside Pipe DiameterD (mm) 53-61 | DND DN 50 | Pipe Diameter ImperialD (in) 2 | Connection ThreadG M8 | Total HeightH (mm) 81 | Total WidthW (mm) 99 | Total DepthDtT (mm) 23 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1.25 | Screw Sizeds M5 | Maximum Allowed Load FazFa,z (N) 500 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 4500 | Product wish list |
| Part No.33335067 | Outside Pipe DiameterD (mm) 62-67 | DND - | Pipe Diameter ImperialD (in) - | Connection ThreadG M8 | Total HeightH (mm) 87 | Total WidthW (mm) 106 | Total DepthDtT (mm) 23 | Material WidthMW (mm) 20 | Material ThicknessMT (mm) 1.25 | Screw Sizeds M5 | Maximum Allowed Load FazFa,z (N) 500 | Pack 1 Shape Cardboard Box | Pack 1 QTY 50 | Pack 2 Shape Pallet ISO 1 | Pack 2 Qty 3150 | Product wish list |
