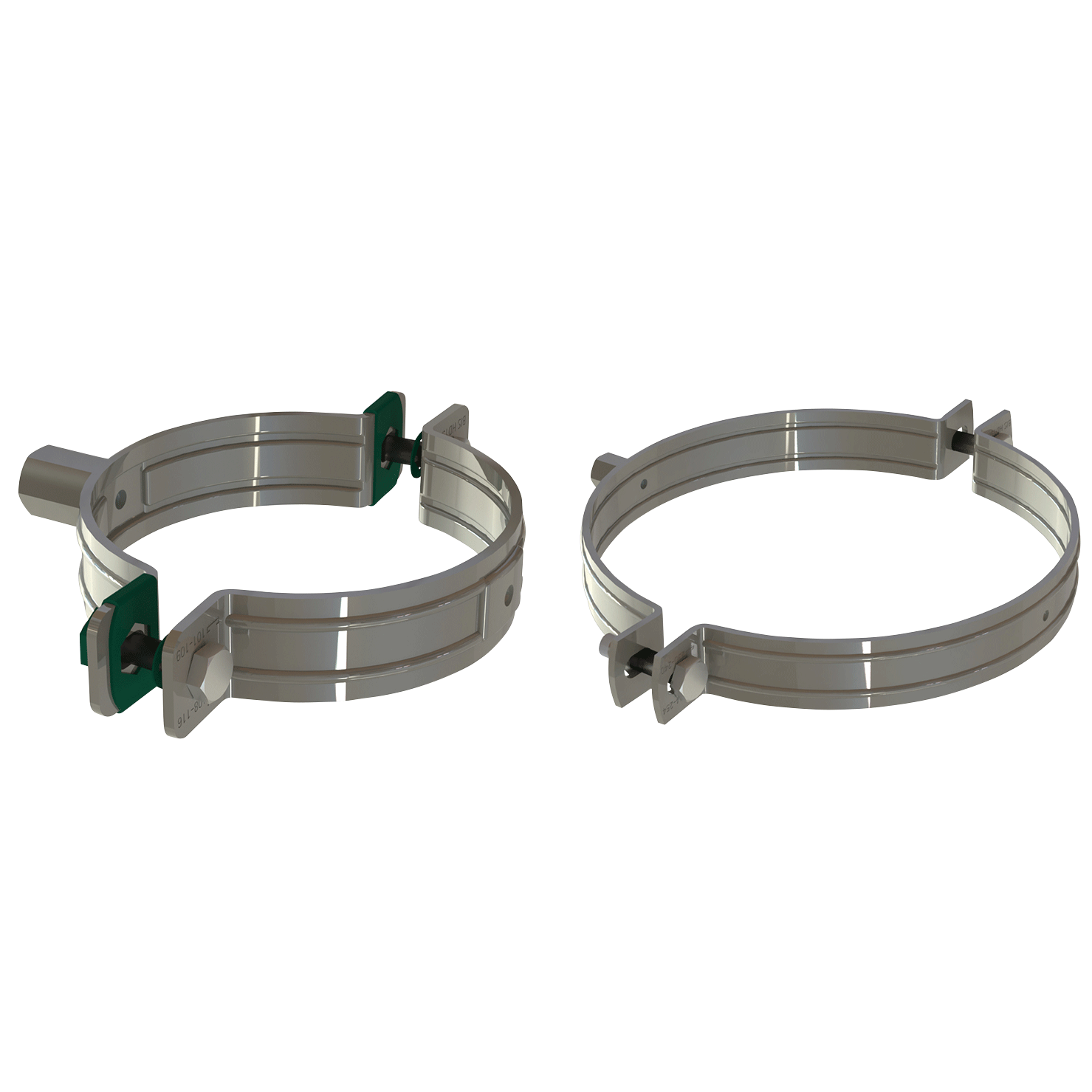

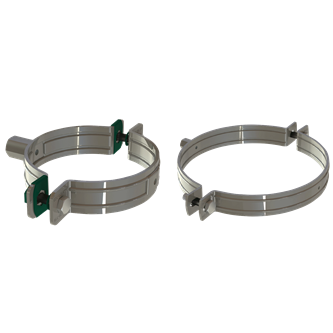

Features & benefits
- epoxy coated HD clamp with dual nut 3/8"-1/2"
- material: steel
| Part No. | Outside Pipe Diameter | Connection Thread | Total Height | Total Width | Total Depth | Material Width | Material Thickness | Screw Size | Maximum Allowed Load Faz | Approvals | Pack 1 Type | Pack 1 QTY | Pack 2 Type | Pack 2 Qty | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | G | H | W | DtT | MW | MT | ds | Fa,z | ||||||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (N) | ||||||||
| Part No.33099110 | Outside Pipe DiameterD (mm) 110 | Connection ThreadG UNC 3/8”/UNC 1/2” | Total HeightH (mm) 153 | Total WidthW (mm) 30 | Total DepthDtT (mm) 175 | Material WidthMW (mm) 30 | Material ThicknessMT (mm) 3 | Screw Sizeds M8 | Maximum Allowed Load FazFa,z (N) 900 | Approvals EPD | Pack 1 Type Cardboard Box | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 1125 | Product wish list |
| Part No.33099125 | Outside Pipe DiameterD (mm) 125 | Connection ThreadG UNC 3/8”/UNC 1/2” | Total HeightH (mm) 170 | Total WidthW (mm) 30 | Total DepthDtT (mm) 192 | Material WidthMW (mm) 30 | Material ThicknessMT (mm) 3 | Screw Sizeds M8 | Maximum Allowed Load FazFa,z (N) 900 | Approvals EPD | Pack 1 Type Cardboard Box | Pack 1 QTY 25 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 900 | Product wish list |
| Part No.33099160 | Outside Pipe DiameterD (mm) 160 | Connection ThreadG UNC 3/8”/UNC 1/2” | Total HeightH (mm) 193 | Total WidthW (mm) 38 | Total DepthDtT (mm) 241 | Material WidthMW (mm) 38 | Material ThicknessMT (mm) 4 | Screw Sizeds M10 | Maximum Allowed Load FazFa,z (N) 1840 | Approvals EPD | Pack 1 Type Cardboard Box | Pack 1 QTY 15 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 675 | Product wish list |
| Part No.33099200 | Outside Pipe DiameterD (mm) 200 | Connection ThreadG UNC 3/8”/UNC 1/2” | Total HeightH (mm) 226 | Total WidthW (mm) 38 | Total DepthDtT (mm) 274 | Material WidthMW (mm) 38 | Material ThicknessMT (mm) 4 | Screw Sizeds M10 | Maximum Allowed Load FazFa,z (N) 1840 | Approvals EPD | Pack 1 Type Cardboard Box | Pack 1 QTY 15 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 675 | Product wish list |
| Part No.33099250 | Outside Pipe DiameterD (mm) 250 | Connection ThreadG UNC 3/8”/UNC 1/2” | Total HeightH (mm) 278 | Total WidthW (mm) 38 | Total DepthDtT (mm) 335 | Material WidthMW (mm) 38 | Material ThicknessMT (mm) 4 | Screw Sizeds M12 | Maximum Allowed Load FazFa,z (N) 1840 | Approvals EPD | Pack 1 Type Bundle | Pack 1 QTY 2 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 240 | Product wish list |
| Part No.33099315 | Outside Pipe DiameterD (mm) 315 | Connection ThreadG UNC 3/8”/UNC 1/2” | Total HeightH (mm) 348 | Total WidthW (mm) 48 | Total DepthDtT (mm) 405 | Material WidthMW (mm) 48 | Material ThicknessMT (mm) 5 | Screw Sizeds M12 | Maximum Allowed Load FazFa,z (N) 2700 | Approvals EPD | Pack 1 Type Bundle | Pack 1 QTY 2 | Pack 2 Type Pallet ISO 0-1/1 | Pack 2 Qty 200 | Product wish list |
