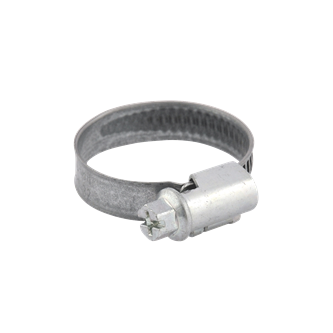

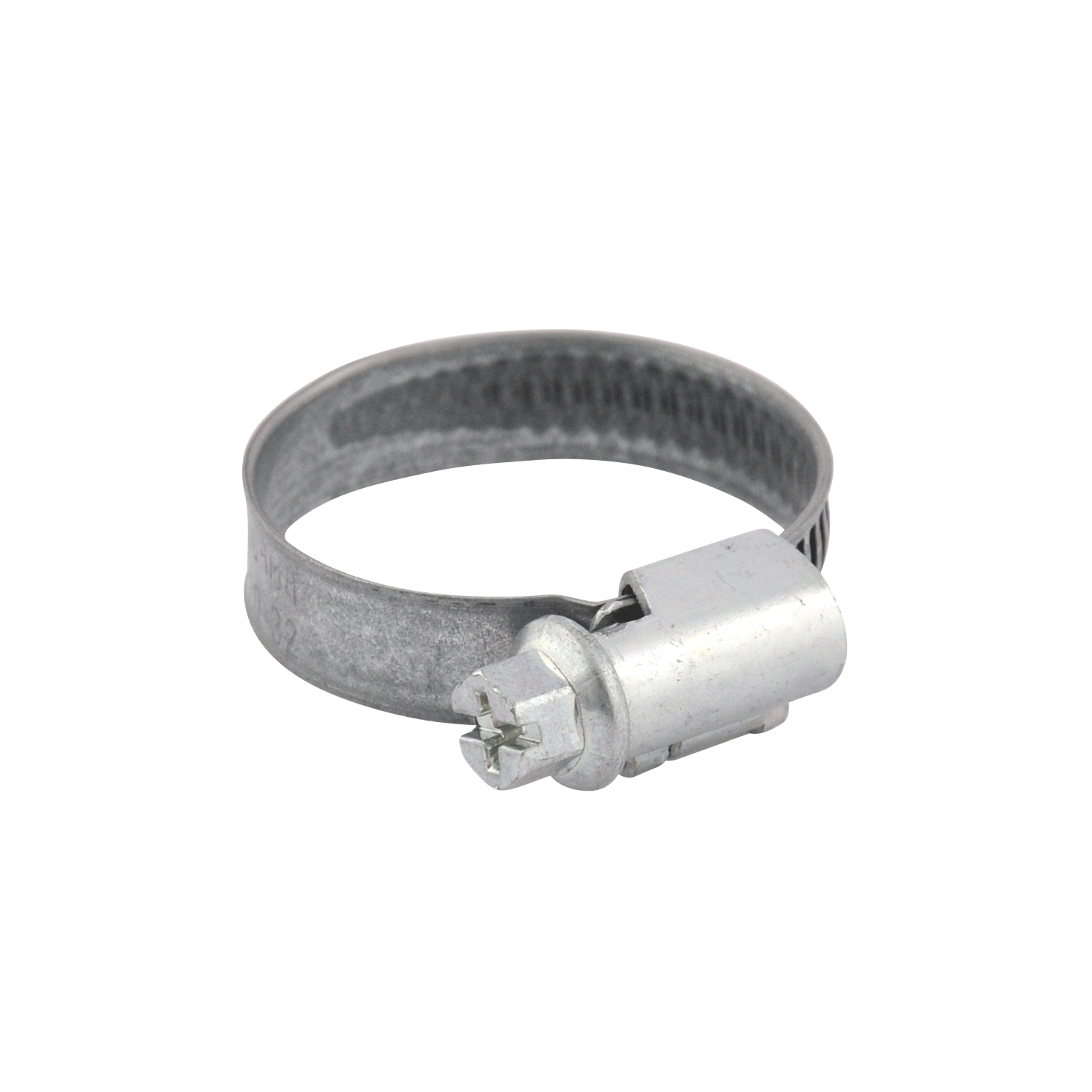

Walraven Hose Clamp
Walraven Hose Clamp

Walraven Hose Clamp

for clamping hoses

Features & benefits

  • high tensile strength
  • maximum secured against torque overload
  • optimal hose protection
  • compliant with the EU-guidelines 2000/53/EG (regarding chrome 6)
  • material: steel
  • zinc plated
  • screw and worm housing zinc plated, blue passivated
Ask a Question

Specifications and Packaging

Part No. Outside Pipe DiameterTotal HeightTotal WidthTotal DepthMaterial WidthMaterial ThicknessScrewing SystemPack 1 TypePack 1 QTYPack 2 TypePack 2 Qty Product
wish list
Ref. letter DHWDtTMWMT
Unit desc. (mm)(mm)(mm)(mm)(mm)(mm)
Part No.0680016
Outside Pipe DiameterD (mm)
10-16
Total HeightH (mm)
20
Total WidthW (mm)
37
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Cardboard Box
Pack 2 Qty
1000		Product wish list
Part No.0680020
Outside Pipe DiameterD (mm)
12-20
Total HeightH (mm)
24
Total WidthW (mm)
42
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Cardboard Box
Pack 2 Qty
1000		Product wish list
Part No.0680025
Outside Pipe DiameterD (mm)
16-25
Total HeightH (mm)
30
Total WidthW (mm)
50
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Cardboard Box
Pack 2 Qty
1000		Product wish list
Part No.0680032
Outside Pipe DiameterD (mm)
20-32
Total HeightH (mm)
34
Total WidthW (mm)
55
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Cardboard Box
Pack 2 Qty
1000		Product wish list
Part No.0680040
Outside Pipe DiameterD (mm)
25-40
Total HeightH (mm)
43
Total WidthW (mm)
70
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Pallet ISO 0-1/1
Pack 2 Qty
17400		Product wish list
Part No.0680050
Outside Pipe DiameterD (mm)
35-50
Total HeightH (mm)
53
Total WidthW (mm)
80
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Cardboard Box
Pack 2 Qty
500		Product wish list
Part No.0680060
Outside Pipe DiameterD (mm)
40-60
Total HeightH (mm)
60
Total WidthW (mm)
90
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
No Pack Type Available
Pack 2 Qty
-		Product wish list
Part No.0680080
Outside Pipe DiameterD (mm)
60-80
Total HeightH (mm)
80
Total WidthW (mm)
110
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Cardboard Box
Pack 2 Qty
500		Product wish list
Part No.0680090
Outside Pipe DiameterD (mm)
70-90
Total HeightH (mm)
95
Total WidthW (mm)
120
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Cardboard Box
Pack 2 Qty
400		Product wish list
Part No.0680110
Outside Pipe DiameterD (mm)
90-110
Total HeightH (mm)
117
Total WidthW (mm)
140
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
25
Pack 2 Type
Cardboard Box
Pack 2 Qty
250		Product wish list
Part No.0680120
Outside Pipe DiameterD (mm)
100-120
Total HeightH (mm)
125
Total WidthW (mm)
150
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
25
Pack 2 Type
Cardboard Box
Pack 2 Qty
200		Product wish list
Part No.0680130
Outside Pipe DiameterD (mm)
110-130
Total HeightH (mm)
135
Total WidthW (mm)
160
Total DepthDtT (mm)
11.3
Material WidthMW (mm)
9
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
25
Pack 2 Type
Cardboard Box
Pack 2 Qty
200		Product wish list
Part No.0680160
Outside Pipe DiameterD (mm)
140-160
Total HeightH (mm)
165
Total WidthW (mm)
171
Total DepthDtT (mm)
14.6
Material WidthMW (mm)
12
Material ThicknessMT (mm)
0.7
Screwing System
External hexagon with slot & phillips
Pack 1 Type
Cardboard Box
Pack 1 QTY
25
Pack 2 Type
Cardboard Box
Pack 2 Qty
150		Product wish list
