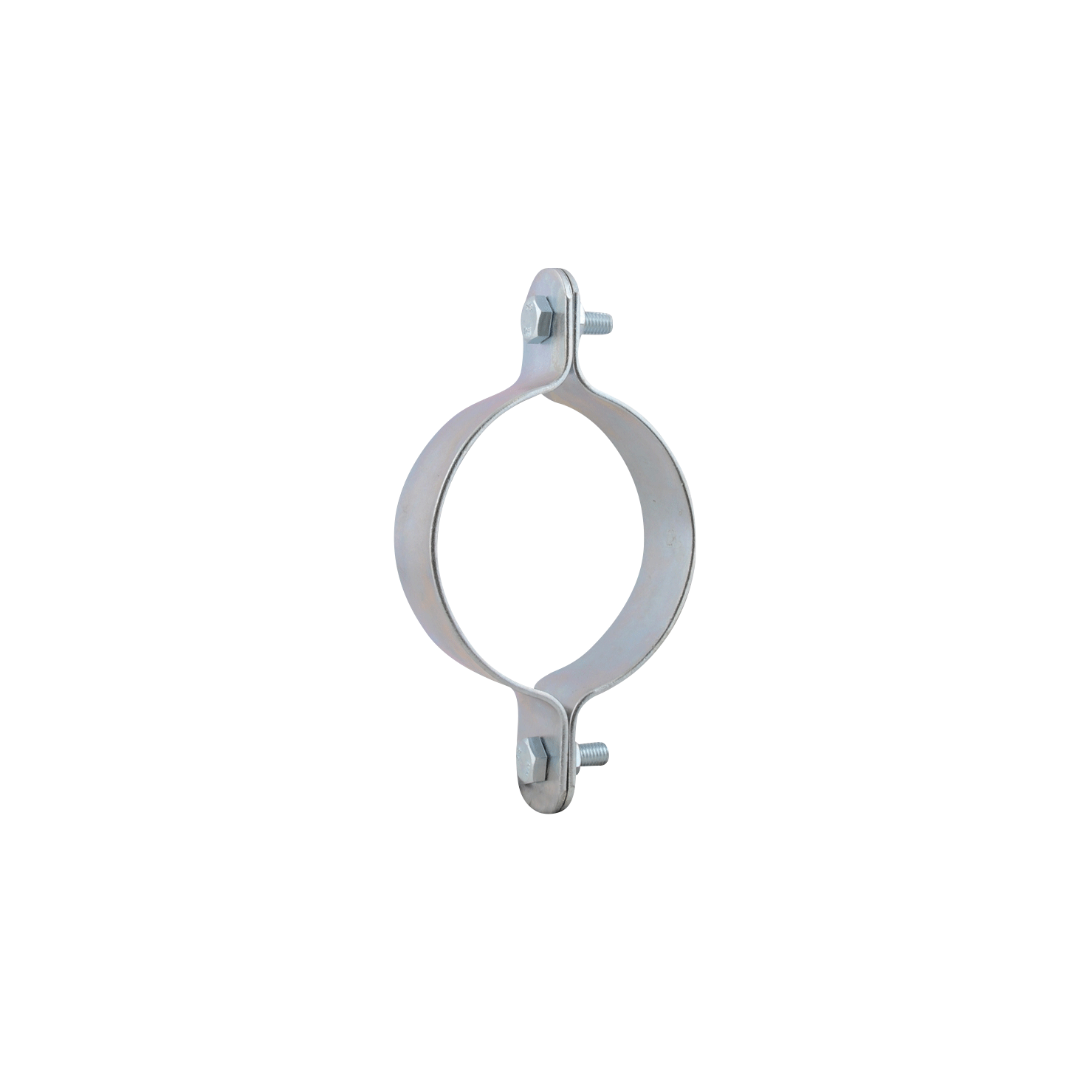

Walraven IH100 Split Band Clip (ZP)
Walraven IH100 Split Band Clip (ZP)

Walraven IH100 Split Band Clip (ZP)

for steel, copper and insulated pipes

Features & benefits

  • standard finish: zinc plated
Ask a Question

Specifications and Packaging

Part No. Outside Pipe DiameterTotal HeightTotal WidthTotal DepthMaterial WidthMaterial ThicknessConnection HoleHeart To Heart DistanceMaximum Allowed Load Faz Product
wish list
Ref. letter DHWDtTMWMTCHkFa,z
Unit desc. (mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(N)
Part No.B4093053D (mm)53-53H (mm)59W (mm)30DtT (mm)132MW (mm)30MT (mm)3CH (mm)11k (mm)100Fa,z (N)-Product wish list
Part No.B4093056D (mm)56-56H (mm)62W (mm)30DtT (mm)142MW (mm)30MT (mm)3CH (mm)11k (mm)159Fa,z (N)-Product wish list
Part No.B4093063D (mm)63-63H (mm)69W (mm)30DtT (mm)146MW (mm)30MT (mm)3CH (mm)11k (mm)165Fa,z (N)-Product wish list
Part No.B4093070D (mm)70-70H (mm)76W (mm)30DtT (mm)150MW (mm)30MT (mm)3CH (mm)11k (mm)173Fa,z (N)-Product wish list
Part No.B4093073D (mm)73-73H (mm)77W (mm)30DtT (mm)150MW (mm)30MT (mm)3CH (mm)11k (mm)120Fa,z (N)-Product wish list
Part No.B4093077D (mm)77-77H (mm)77W (mm)154DtT (mm)154MW (mm)30MT (mm)3CH (mm)11k (mm)124Fa,z (N)-Product wish list
Part No.B4093081D (mm)81-81H (mm)87W (mm)30DtT (mm)160MW (mm)30MT (mm)3CH (mm)11k (mm)128Fa,z (N)-Product wish list
Part No.B4093083D (mm)83-83H (mm)83W (mm)160DtT (mm)160MW (mm)30MT (mm)3CH (mm)11k (mm)130Fa,z (N)-Product wish list
Part No.B4093089D (mm)89-89H (mm)89W (mm)166DtT (mm)166MW (mm)30MT (mm)3CH (mm)11k (mm)136Fa,z (N)-Product wish list
Part No.B4093096D (mm)96-96H (mm)96W (mm)173DtT (mm)173MW (mm)30MT (mm)3CH (mm)11k (mm)143Fa,z (N)-Product wish list
Part No.B4093103D (mm)103-103H (mm)103W (mm)180DtT (mm)180MW (mm)30MT (mm)3CH (mm)11k (mm)150Fa,z (N)-Product wish list
Part No.B4093109D (mm)109-109H (mm)109W (mm)186DtT (mm)186MW (mm)40MT (mm)3CH (mm)10.5k (mm)156Fa,z (N)-Product wish list
Part No.B4093114D (mm)114-114H (mm)114W (mm)191DtT (mm)191MW (mm)40MT (mm)3CH (mm)10.5k (mm)161Fa,z (N)-Product wish list
Part No.B4093122D (mm)122-122H (mm)122W (mm)199DtT (mm)199MW (mm)40MT (mm)3CH (mm)10.5k (mm)169Fa,z (N)-Product wish list
Part No.B4093127D (mm)127-127H (mm)127W (mm)204DtT (mm)204MW (mm)40MT (mm)3CH (mm)10.5k (mm)174Fa,z (N)-Product wish list
Part No.B4093132D (mm)132-132H (mm)132W (mm)209DtT (mm)209MW (mm)40MT (mm)3CH (mm)10.5k (mm)179Fa,z (N)-Product wish list
Part No.B4093139D (mm)139-139H (mm)139W (mm)216DtT (mm)216MW (mm)40MT (mm)3CH (mm)10.5k (mm)186Fa,z (N)-Product wish list
Part No.B4093148D (mm)148-148H (mm)148W (mm)225DtT (mm)225MW (mm)40MT (mm)3CH (mm)10.5k (mm)195Fa,z (N)-Product wish list
Part No.B4093152D (mm)152-152H (mm)152W (mm)229DtT (mm)229MW (mm)40MT (mm)3CH (mm)10.5k (mm)199Fa,z (N)-Product wish list
Part No.B4093159D (mm)159-159H (mm)159W (mm)249DtT (mm)249MW (mm)40MT (mm)3CH (mm)14k (mm)209Fa,z (N)-Product wish list
Part No.B4093168D (mm)168-168H (mm)168W (mm)258DtT (mm)258MW (mm)40MT (mm)3CH (mm)14k (mm)218Fa,z (N)-Product wish list
Part No.B4093172D (mm)172-172H (mm)172W (mm)262DtT (mm)262MW (mm)40MT (mm)3CH (mm)14k (mm)222Fa,z (N)-Product wish list
Part No.B4093180D (mm)180-180H (mm)180W (mm)270DtT (mm)270MW (mm)40MT (mm)3CH (mm)14k (mm)230Fa,z (N)-Product wish list
Part No.B4093190D (mm)190-190H (mm)190W (mm)288DtT (mm)288MW (mm)40MT (mm)5CH (mm)14k (mm)248Fa,z (N)-Product wish list
Part No.B4093196D (mm)196-196H (mm)196W (mm)294DtT (mm)294MW (mm)40MT (mm)5CH (mm)14k (mm)254Fa,z (N)-Product wish list
Part No.B4093202D (mm)202-202H (mm)202W (mm)300DtT (mm)300MW (mm)40MT (mm)5CH (mm)14k (mm)260Fa,z (N)-Product wish list
Part No.B4093212D (mm)212-212H (mm)212W (mm)310DtT (mm)310MW (mm)40MT (mm)5CH (mm)14k (mm)270Fa,z (N)-Product wish list
Part No.B4093220D (mm)220-220H (mm)220W (mm)318DtT (mm)318MW (mm)40MT (mm)5CH (mm)14k (mm)278Fa,z (N)-Product wish list
Part No.B4093225D (mm)225-225H (mm)225W (mm)323DtT (mm)323MW (mm)40MT (mm)5CH (mm)14k (mm)283Fa,z (N)-Product wish list
Part No.B4093232D (mm)232-232H (mm)232W (mm)330DtT (mm)330MW (mm)40MT (mm)5CH (mm)14k (mm)290Fa,z (N)-Product wish list
Part No.B4093240D (mm)240-240H (mm)240W (mm)338DtT (mm)338MW (mm)40MT (mm)5CH (mm)14k (mm)298Fa,z (N)-Product wish list
Part No.B4093250D (mm)250-250H (mm)250W (mm)348DtT (mm)348MW (mm)40MT (mm)5CH (mm)14k (mm)308Fa,z (N)-Product wish list
Part No.B4093260D (mm)260-260H (mm)260W (mm)358DtT (mm)358MW (mm)40MT (mm)5CH (mm)14k (mm)318Fa,z (N)-Product wish list
Part No.B4093265D (mm)265-265H (mm)275W (mm)40DtT (mm)363MW (mm)40MT (mm)5CH (mm)14k (mm)323Fa,z (N)-Product wish list
Part No.B4093270D (mm)270-270H (mm)270W (mm)368DtT (mm)368MW (mm)40MT (mm)5CH (mm)14k (mm)328Fa,z (N)-Product wish list
Part No.B4093280D (mm)280-280H (mm)292W (mm)50DtT (mm)418MW (mm)50MT (mm)6CH (mm)18k (mm)368Fa,z (N)-Product wish list
Part No.B4093284D (mm)284-284H (mm)290W (mm)50DtT (mm)422MW (mm)50MT (mm)6CH (mm)18k (mm)372Fa,z (N)-Product wish list
Part No.B4093289D (mm)289-289H (mm)301W (mm)50DtT (mm)426MW (mm)50MT (mm)6CH (mm)18k (mm)376Fa,z (N)-Product wish list
Part No.B4093295D (mm)295-295H (mm)307W (mm)50DtT (mm)432MW (mm)50MT (mm)6CH (mm)18k (mm)382Fa,z (N)-Product wish list
Part No.B4093302D (mm)302-302H (mm)314W (mm)50DtT (mm)440MW (mm)50MT (mm)6CH (mm)18k (mm)390Fa,z (N)-Product wish list
Part No.B4093305D (mm)305-305H (mm)317W (mm)50DtT (mm)442MW (mm)50MT (mm)6CH (mm)18k (mm)392Fa,z (N)-Product wish list
Part No.B4093315D (mm)315-315H (mm)327W (mm)50DtT (mm)453MW (mm)50MT (mm)6CH (mm)18k (mm)403Fa,z (N)-Product wish list
Part No.B4093320D (mm)320-320H (mm)332W (mm)50DtT (mm)458MW (mm)50MT (mm)6CH (mm)18k (mm)408Fa,z (N)-Product wish list
Part No.B4093325D (mm)325-325H (mm)337W (mm)50DtT (mm)464MW (mm)50MT (mm)6CH (mm)18k (mm)412Fa,z (N)-Product wish list
Part No.B4093330D (mm)330-330H (mm)342W (mm)50DtT (mm)470MW (mm)50MT (mm)6CH (mm)18k (mm)420Fa,z (N)-Product wish list
Part No.B4093335D (mm)335-335H (mm)347W (mm)50DtT (mm)474MW (mm)50MT (mm)6CH (mm)18k (mm)424Fa,z (N)-Product wish list
Part No.B4093342D (mm)342-342H (mm)354W (mm)50DtT (mm)480MW (mm)50MT (mm)6CH (mm)18k (mm)430Fa,z (N)-Product wish list
Part No.B4093343D (mm)343-343H (mm)355W (mm)50DtT (mm)481MW (mm)50MT (mm)6CH (mm)18k (mm)431Fa,z (N)-Product wish list
Part No.B4093350D (mm)350-350H (mm)362W (mm)50DtT (mm)491MW (mm)50MT (mm)6CH (mm)18k (mm)441Fa,z (N)-Product wish list
Part No.B4093355D (mm)355-355H (mm)367W (mm)50DtT (mm)493MW (mm)50MT (mm)6CH (mm)18k (mm)443Fa,z (N)-Product wish list
Part No.B4093363D (mm)363-363H (mm)375W (mm)50DtT (mm)501MW (mm)50MT (mm)6CH (mm)18k (mm)451Fa,z (N)-Product wish list
Part No.B4093370D (mm)370-370H (mm)382W (mm)50DtT (mm)509MW (mm)50MT (mm)6CH (mm)18k (mm)459Fa,z (N)-Product wish list
Part No.B4093376D (mm)376-376H (mm)396W (mm)50DtT (mm)535MW (mm)50MT (mm)10CH (mm)22k (mm)475Fa,z (N)-Product wish list
Part No.B4093385D (mm)385-385H (mm)405W (mm)50DtT (mm)545MW (mm)50MT (mm)10CH (mm)22k (mm)485Fa,z (N)-Product wish list
Part No.B4093395D (mm)395-395H (mm)415W (mm)50DtT (mm)575MW (mm)50MT (mm)10CH (mm)22k (mm)505Fa,z (N)-Product wish list
Part No.B4093405D (mm)405-405H (mm)425W (mm)50DtT (mm)584MW (mm)50MT (mm)10CH (mm)22k (mm)514Fa,z (N)-Product wish list
Part No.B4093419D (mm)419-419H (mm)439W (mm)50DtT (mm)595MW (mm)50MT (mm)10CH (mm)22k (mm)525Fa,z (N)-Product wish list
Part No.B4093425D (mm)425-425H (mm)445W (mm)50DtT (mm)603MW (mm)50MT (mm)10CH (mm)22k (mm)533Fa,z (N)-Product wish list
Part No.B4093442D (mm)442-442H (mm)462W (mm)60DtT (mm)621MW (mm)60MT (mm)10CH (mm)22k (mm)535Fa,z (N)-Product wish list
Part No.B4093464D (mm)464-464H (mm)484W (mm)60DtT (mm)643MW (mm)60MT (mm)10CH (mm)22k (mm)573Fa,z (N)-Product wish list
Part No.B4093475D (mm)475-475H (mm)495W (mm)60DtT (mm)653MW (mm)60MT (mm)10CH (mm)22k (mm)583Fa,z (N)-Product wish list
Part No.B4093510D (mm)510-510H (mm)534W (mm)60DtT (mm)690MW (mm)60MT (mm)12CH (mm)26k (mm)620Fa,z (N)-Product wish list
