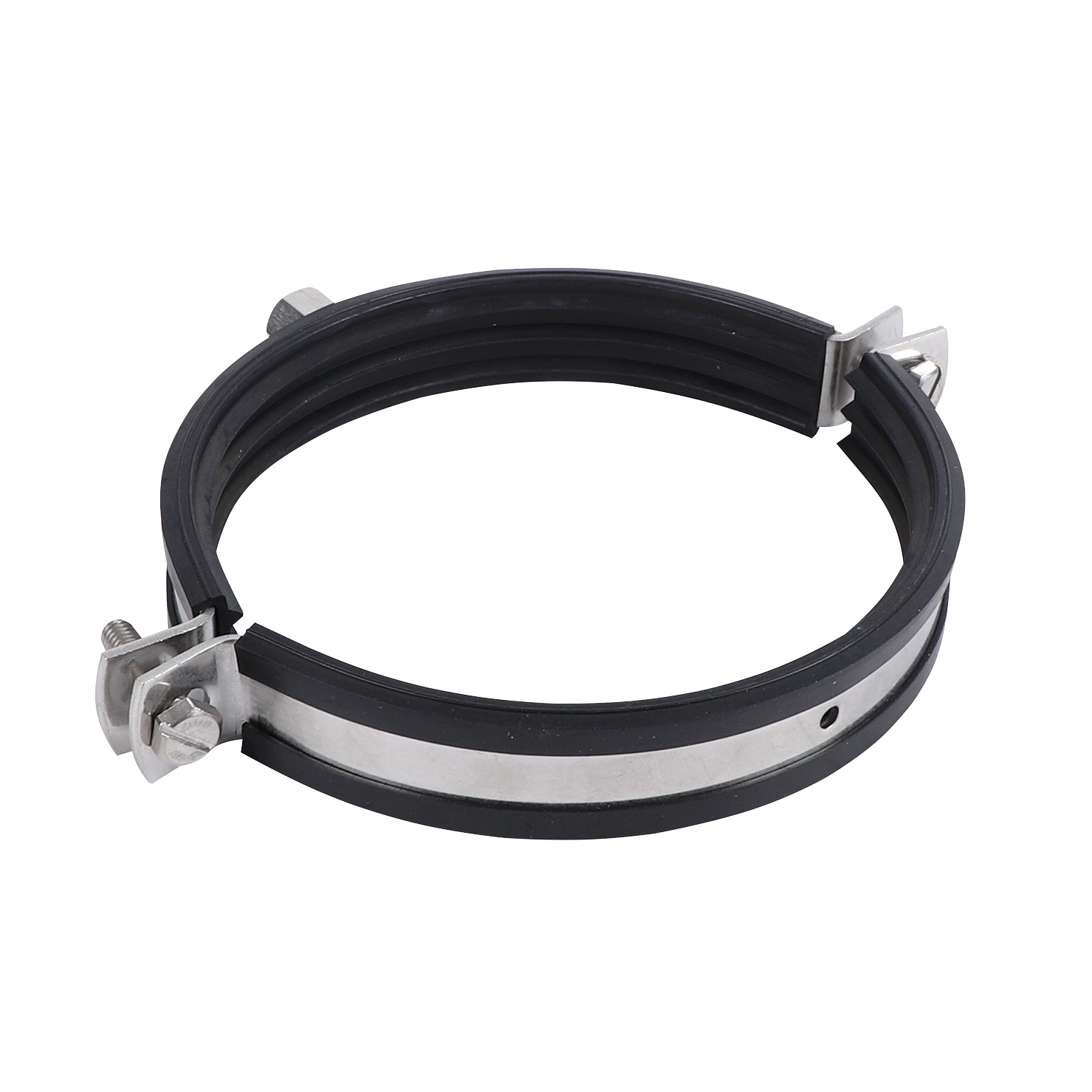

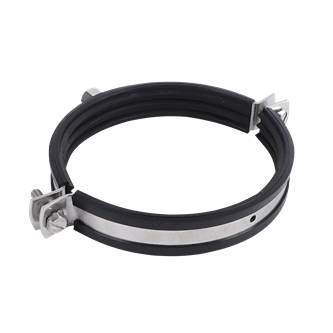

Walraven Stainless Steel Pipe Clamp with Lining (M8/10)

for stainless steel and plastic pipes

Features & benefits

two-screw clamp
for installations in corrosive atmospheres
temper colours around weld polished to improve corrosive resistance
screws secured with anti-loss washer
material: stainless steel 1.4401 (AISI 316)
noise insulating lining, EPDM rubber, black

Part No.	Outside Pipe Diameter	Connection Thread	Total Height	Total Width	Total Depth	Material Width	Material Thickness	Screw Size	Maximum Allowed Load Faz	Approvals	Product wish list
Ref. letter	D	G	H	W	DtT	MW	MT	ds	Fa,z
Unit desc.	(mm)		(mm)	(mm)	(mm)	(mm)	(mm)		(N)
Part No.31179018	D (mm)15-18	GM8/M10	H (mm)48	W (mm)67	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179022	D (mm)20-24	GM8/M10	H (mm)50	W (mm)69	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	-	Product wish list
Part No.31179028	D (mm)26-30	GM8/M10	H (mm)57	W (mm)77	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179035	D (mm)32-36	GM8/M10	H (mm)62	W (mm)82	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179040	D (mm)38-42	GM8/M10	H (mm)70	W (mm)90	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179048	D (mm)47-50	GM8/M10	H (mm)76	W (mm)96	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179054	D (mm)51-55	GM8/M10	H (mm)85	W (mm)105	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179060	D (mm)60-64	GM8/M10	H (mm)92	W (mm)112	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179070	D (mm)67-73	GM8/M10	H (mm)99	W (mm)119	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179075	D (mm)75-80	GM8/M10	H (mm)107	W (mm)127	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179090	D (mm)87-92	GM8/M10	H (mm)120	W (mm)140	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179100	D (mm)100-106	GM8/M10	H (mm)132	W (mm)152	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179110	D (mm)106-112	GM8/M10	H (mm)138	W (mm)158	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179115	D (mm)114-119	GM8/M10	H (mm)150	W (mm)170	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179125	D (mm)124-131	GM8/M10	H (mm)157	W (mm)177	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179140	D (mm)133-140	GM8/M10	H (mm)170	W (mm)190	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
Part No.31179160	D (mm)159-165	GM8/M10	H (mm)190	W (mm)210	DtT (mm)20	MW (mm)20	MT (mm)2	dsM6	Fa,z (N)900	ITB (KOT)	Product wish list
