Walraven Channel Selector is your trusted tool for performing structural calculations to select the proper Walraven channel. Whether you are working with point or uniformly distributed loads, our tool ensures that your design meets safety and performance. Select your fixing rail type, define the supports, input your load values, and let the Walraven Channel Selector calculate the maximum stress and deflection for your specific situation. Start optimising your projects with confidence today!
For more detailed information related to user interface and structural calculations, please take a look at the user manual.
How to proceed?
- Click to start
- Choose your language at the top right by clicking on the globe. The language is by default English.
- Start with the first green tab: rail. When all the information is filled out, you will pass to the next tab.
- Define which Walraven Channel Systems you would like to use, along with the construction type.

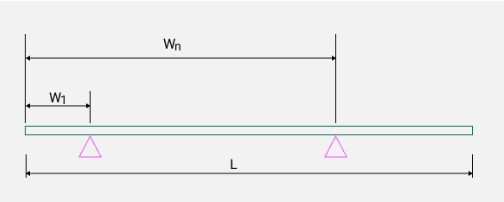

- Define the fixing channel length, location, and support type.
- Define the point load position and magnitude.
- Define continuous load position and magnitude.
- You will be able to visualise the results
- Generate and download the report
Don’t forget to download the structural report to save your calculations.
If you have any questions, do not hesitate to contact our Technical Support Team.
