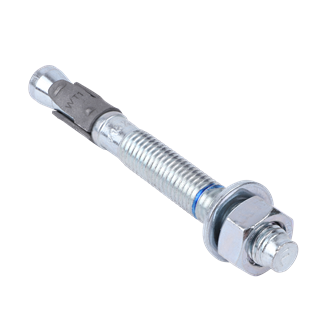

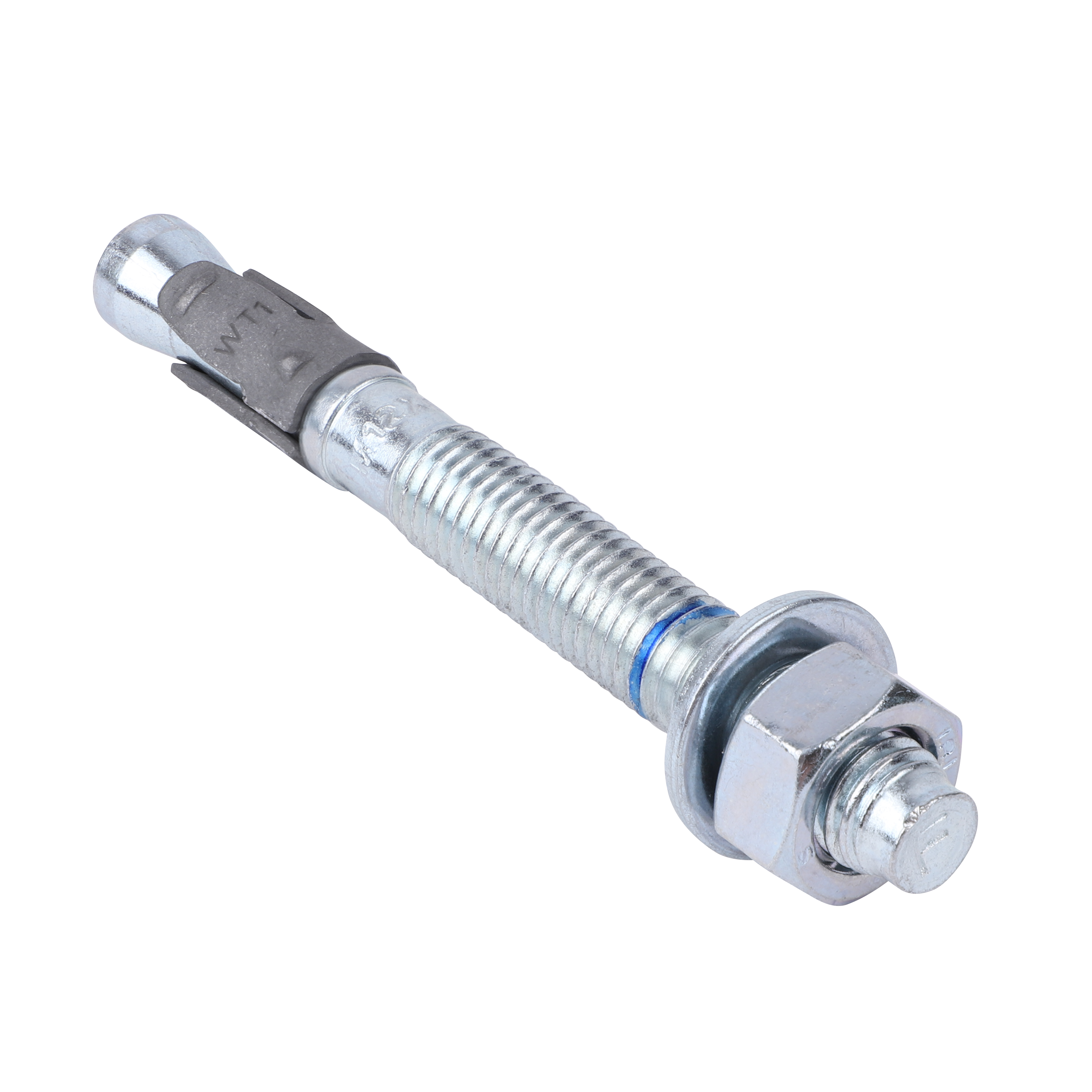

Walraven WT1 Throughbolt Anchor
Walraven WT1 Throughbolt Anchor

Walraven WT1 Throughbolt Anchor

Features & benefits

  • CE
  • EN1363-1
  • ETA
Ask a Question

Specifications and Packaging

Part No. Thread SizeTotal LengthDrill Hole DiameterDrill Hole DepthMinimum Substrate ThicknessMaximum Fixture ThicknessStandard Embedment DepthTotal HeightTotal WidthPack 1 TypePack 1 QTYPack 2 TypePack 2 Qty Product
wish list
Ref. letter TSLd0h0hmintfix,maxhnomHW
Unit desc. (mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)
Part No.608408080
Thread SizeTS
M8
Total LengthL (mm)
80
Drill Hole Diameterd0 (mm)
8
Drill Hole Depthh0 (mm)
60
Minimum Substrate Thicknesshmin (mm)
80
Maximum Fixture Thicknesstfix,max (mm)
14
Standard Embedment Depthhnom (mm)
55
Total HeightH (mm)
16
Total WidthW (mm)
16
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Cardboard Box
Pack 2 Qty
600		Product wish list
Part No.608408095
Thread SizeTS
M8
Total LengthL (mm)
95
Drill Hole Diameterd0 (mm)
8
Drill Hole Depthh0 (mm)
60
Minimum Substrate Thicknesshmin (mm)
80
Maximum Fixture Thicknesstfix,max (mm)
29
Standard Embedment Depthhnom (mm)
55
Total HeightH (mm)
16
Total WidthW (mm)
16
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Cardboard Box
Pack 2 Qty
600		Product wish list
Part No.608408115
Thread SizeTS
M8
Total LengthL (mm)
115
Drill Hole Diameterd0 (mm)
8
Drill Hole Depthh0 (mm)
60
Minimum Substrate Thicknesshmin (mm)
80
Maximum Fixture Thicknesstfix,max (mm)
49
Standard Embedment Depthhnom (mm)
55
Total HeightH (mm)
16
Total WidthW (mm)
16
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Cardboard Box
Pack 2 Qty
400		Product wish list
Part No.608410090
Thread SizeTS
M10
Total LengthL (mm)
90
Drill Hole Diameterd0 (mm)
10
Drill Hole Depthh0 (mm)
#75
Minimum Substrate Thicknesshmin (mm)
90
Maximum Fixture Thicknesstfix,max (mm)
10
Standard Embedment Depthhnom (mm)
68
Total HeightH (mm)
20
Total WidthW (mm)
20
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Cardboard Box
Pack 2 Qty
400		Product wish list
Part No.608410135
Thread SizeTS
M10
Total LengthL (mm)
135
Drill Hole Diameterd0 (mm)
10
Drill Hole Depthh0 (mm)
#75
Minimum Substrate Thicknesshmin (mm)
90
Maximum Fixture Thicknesstfix,max (mm)
55
Standard Embedment Depthhnom (mm)
68
Total HeightH (mm)
20
Total WidthW (mm)
20
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Cardboard Box
Pack 2 Qty
200		Product wish list
Part No.608412110
Thread SizeTS
M12
Total LengthL (mm)
110
Drill Hole Diameterd0 (mm)
12
Drill Hole Depthh0 (mm)
80
Minimum Substrate Thicknesshmin (mm)
105
Maximum Fixture Thicknesstfix,max (mm)
14
Standard Embedment Depthhnom (mm)
80
Total HeightH (mm)
24
Total WidthW (mm)
24
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Cardboard Box
Pack 2 Qty
200		Product wish list
Part No.608412120
Thread SizeTS
M12
Total LengthL (mm)
120
Drill Hole Diameterd0 (mm)
12
Drill Hole Depthh0 (mm)
85
Minimum Substrate Thicknesshmin (mm)
105
Maximum Fixture Thicknesstfix,max (mm)
24
Standard Embedment Depthhnom (mm)
80
Total HeightH (mm)
24
Total WidthW (mm)
24
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Cardboard Box
Pack 2 Qty
200		Product wish list
Part No.608412150
Thread SizeTS
M12
Total LengthL (mm)
150
Drill Hole Diameterd0 (mm)
12
Drill Hole Depthh0 (mm)
85
Minimum Substrate Thicknesshmin (mm)
105
Maximum Fixture Thicknesstfix,max (mm)
54
Standard Embedment Depthhnom (mm)
80
Total HeightH (mm)
24
Total WidthW (mm)
24
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Cardboard Box
Pack 2 Qty
100		Product wish list
Part No.608416145
Thread SizeTS
M16
Total LengthL (mm)
145
Drill Hole Diameterd0 (mm)
16
Drill Hole Depthh0 (mm)
105
Minimum Substrate Thicknesshmin (mm)
130
Maximum Fixture Thicknesstfix,max (mm)
28
Standard Embedment Depthhnom (mm)
97
Total HeightH (mm)
30
Total WidthW (mm)
30
Pack 1 Type
Cardboard Box
Pack 1 QTY
25
Pack 2 Type
Cardboard Box
Pack 2 Qty
100		Product wish list
