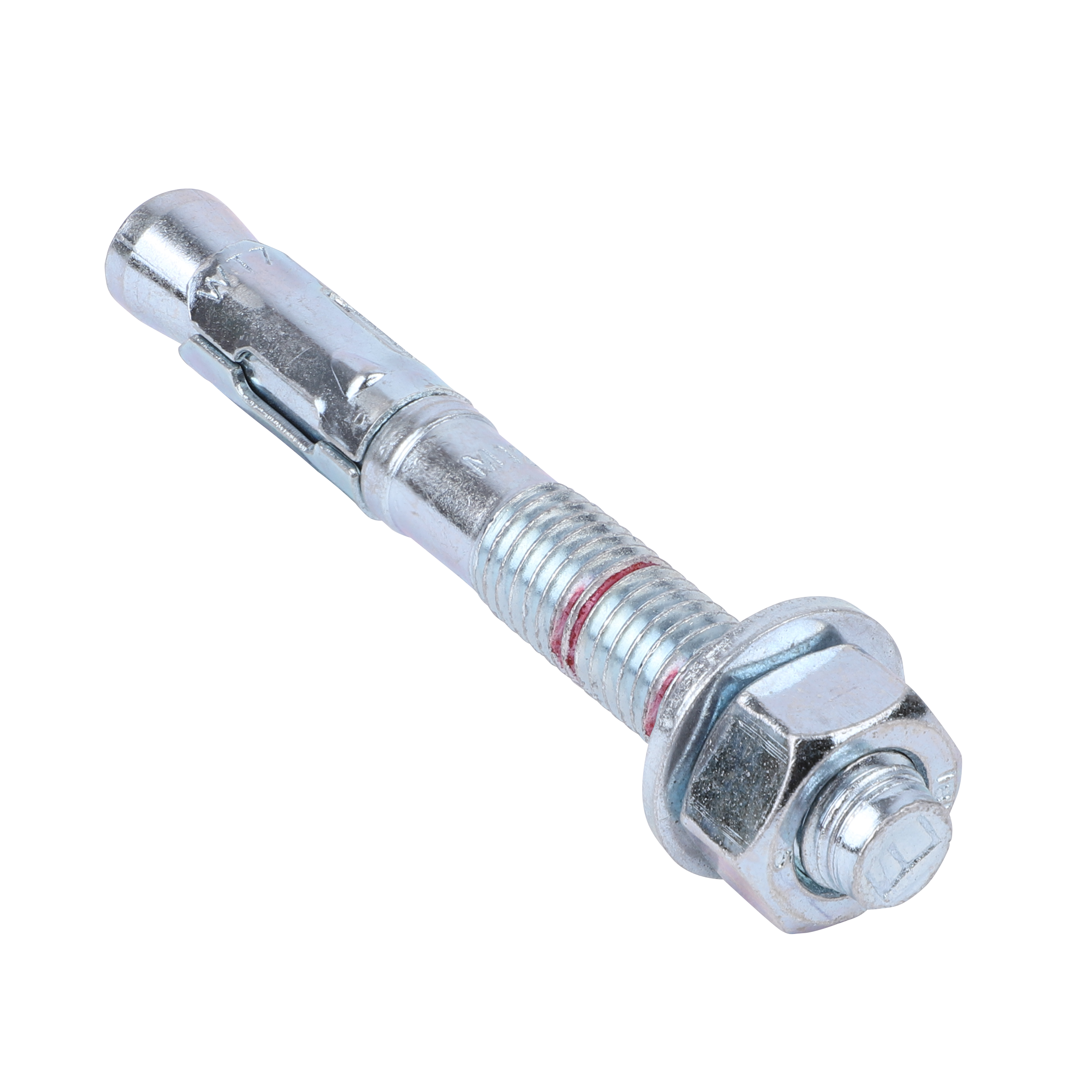

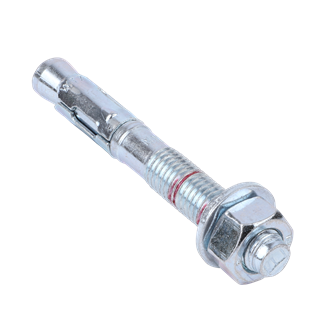

| Part No. | Thread Size | Total Length | Drill Hole Diameter | Drill Hole Depth | Minimum Substrate Thickness | Maximum Fixture Thickness | Standard Embedment Depth | Total Height | Total Width | Pack 1 Type | Pack 1 QTY | Pack 2 Type | Pack 2 Qty | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | TS | L | d0 | h0 | hmin | tfix,max | hnom | H | W | |||||
| Unit desc. | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||||||
| Part No.608108075 | Thread SizeTS M8 | Total LengthL (mm) 75 | Drill Hole Diameterd0 (mm) 8 | Drill Hole Depthh0 (mm) 65 | Minimum Substrate Thicknesshmin (mm) 100 | Maximum Fixture Thicknesstfix,max (mm) 5 | Standard Embedment Depthhnom (mm) 60 | Total HeightH (mm) 16 | Total WidthW (mm) 16 | Pack 1 Type Cardboard Box | Pack 1 QTY 100 | Pack 2 Type Cardboard Box | Pack 2 Qty 600 | Product wish list |
| Part No.608108100 | Thread SizeTS M8 | Total LengthL (mm) 100 | Drill Hole Diameterd0 (mm) 8 | Drill Hole Depthh0 (mm) 65 | Minimum Substrate Thicknesshmin (mm) 100 | Maximum Fixture Thicknesstfix,max (mm) 30 | Standard Embedment Depthhnom (mm) 60 | Total HeightH (mm) 16 | Total WidthW (mm) 16 | Pack 1 Type Cardboard Box | Pack 1 QTY 100 | Pack 2 Type Cardboard Box | Pack 2 Qty 400 | Product wish list |
| Part No.608110100 | Thread SizeTS M10 | Total LengthL (mm) 100 | Drill Hole Diameterd0 (mm) 10 | Drill Hole Depthh0 (mm) #75 | Minimum Substrate Thicknesshmin (mm) 110 | Maximum Fixture Thicknesstfix,max (mm) 20 | Standard Embedment Depthhnom (mm) 67 | Total HeightH (mm) 20 | Total WidthW (mm) 20 | Pack 1 Type Cardboard Box | Pack 1 QTY 100 | Pack 2 Type Cardboard Box | Pack 2 Qty 400 | Product wish list |
| Part No.608110120 | Thread SizeTS M10 | Total LengthL (mm) 120 | Drill Hole Diameterd0 (mm) 10 | Drill Hole Depthh0 (mm) #75 | Minimum Substrate Thicknesshmin (mm) 110 | Maximum Fixture Thicknesstfix,max (mm) 40 | Standard Embedment Depthhnom (mm) 67 | Total HeightH (mm) 20 | Total WidthW (mm) 20 | Pack 1 Type Cardboard Box | Pack 1 QTY 50 | Pack 2 Type Cardboard Box | Pack 2 Qty 300 | Product wish list |
| Part No.608110140 | Thread SizeTS M10 | Total LengthL (mm) 140 | Drill Hole Diameterd0 (mm) 10 | Drill Hole Depthh0 (mm) #75 | Minimum Substrate Thicknesshmin (mm) 110 | Maximum Fixture Thicknesstfix,max (mm) 60 | Standard Embedment Depthhnom (mm) 67 | Total HeightH (mm) 20 | Total WidthW (mm) 20 | Pack 1 Type Cardboard Box | Pack 1 QTY 50 | Pack 2 Type Cardboard Box | Pack 2 Qty 200 | Product wish list |
| Part No.608112100 | Thread SizeTS M12 | Total LengthL (mm) 100 | Drill Hole Diameterd0 (mm) 12 | Drill Hole Depthh0 (mm) 85 | Minimum Substrate Thicknesshmin (mm) 130 | Maximum Fixture Thicknesstfix,max (mm) 8 | Standard Embedment Depthhnom (mm) 77 | Total HeightH (mm) 24 | Total WidthW (mm) 24 | Pack 1 Type Cardboard Box | Pack 1 QTY 50 | Pack 2 Type Cardboard Box | Pack 2 Qty 200 | Product wish list |
| Part No.608112120 | Thread SizeTS M12 | Total LengthL (mm) 120 | Drill Hole Diameterd0 (mm) 12 | Drill Hole Depthh0 (mm) 85 | Minimum Substrate Thicknesshmin (mm) 130 | Maximum Fixture Thicknesstfix,max (mm) 28 | Standard Embedment Depthhnom (mm) 77 | Total HeightH (mm) 24 | Total WidthW (mm) 24 | Pack 1 Type Cardboard Box | Pack 1 QTY 50 | Pack 2 Type Cardboard Box | Pack 2 Qty 200 | Product wish list |
