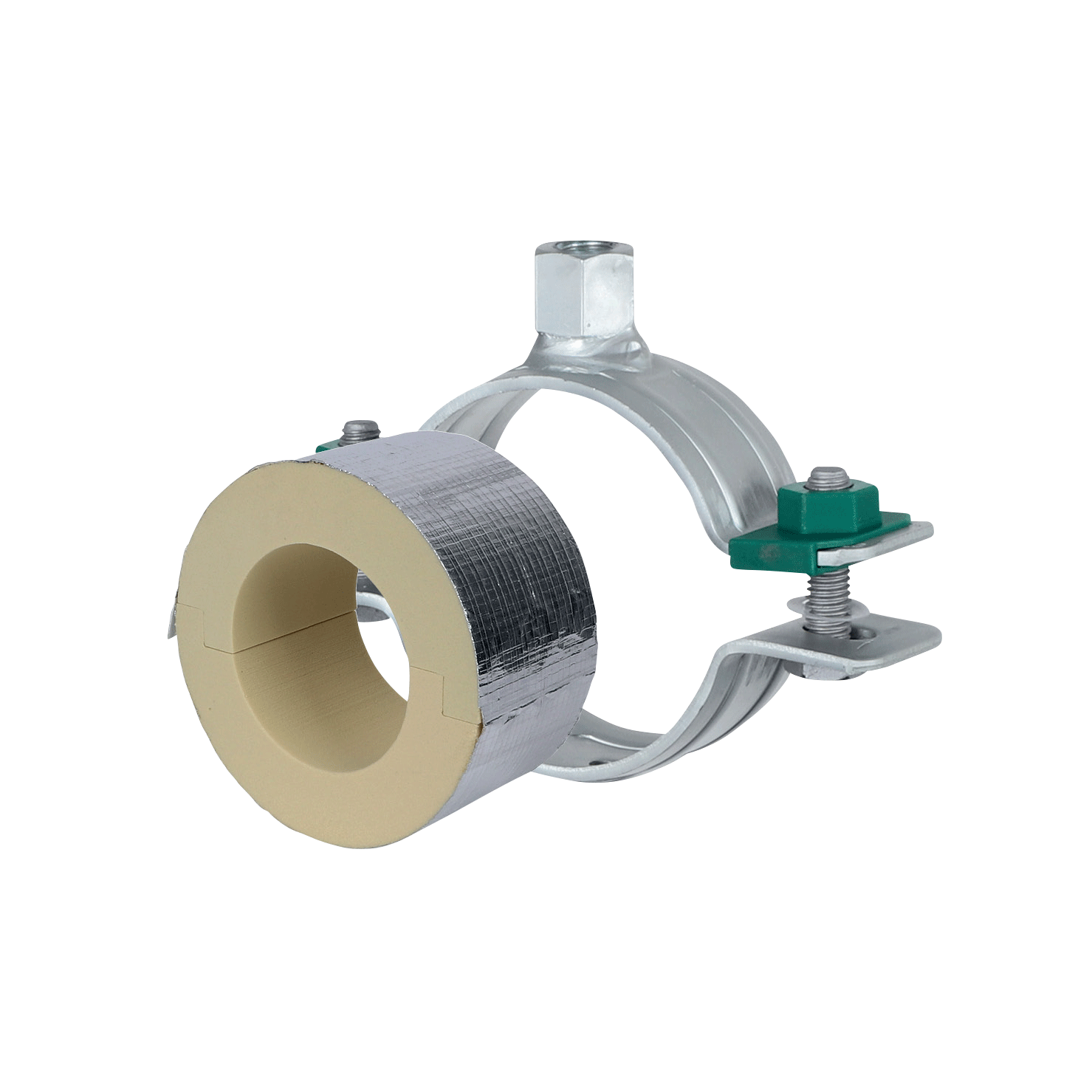

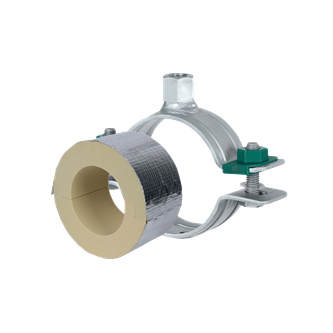

Walraven BISOFIX® PIR40 + HD500

Features & benefits

• for combination with rigid foam insulation
• cover joints with aluminium tape
• insulating pipe support with HD500 clamp
• HD500 clamp with M8/M10 and M10/M12 connection nut
• does not contain CFC, HCFC, formaldehyde or cadmium
• fire class B2
• PIR density for D <110mm = 80kg/m³
• PIR density for D >110mm = 120kg/m³
• thermal conductivity lambda (approx. value): 0.30 W/(mK)
• product is part of the Walraven Walraven UltraProtect® 1000 system
• suitable for in- and outdoor applications
• stands min. 1,000 hours salt spray test (max. 5% red rust) according to ISO 9227
• temperature range -45 °C - +105 °C
