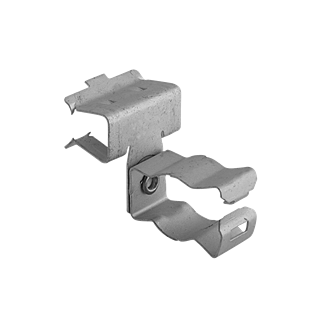

Walraven Britclips® Beam Clip / Locking Unit Combination
Walraven Britclips® Beam Clip / Locking Unit Combination

Walraven Britclips® Beam Clip / Locking Unit Combination

for flange

Features & benefits

  • for a solid fixing to steel construction without the need for welding or drilling
  • conduit clip swivels 360°
  • conduit clip with jaw locking (use pliers to lock)
  • material: spring steel (type CS70)
  • surface treatment: Delta-Tone 9000 (480 hours)
Ask a question

Specifications and packaging

Part No. CodeFor flange sizeHeightDiameterTotal HeightTotal WidthTotal DepthMaximum Allowed Load FazPack 1 TypePack 1 QTYPack 2 TypePack 2 Qty Product
wish list
Ref. letter fshdHWDtTFa,z
Unit desc. (mm)(mm)(mm)(mm)(mm)(mm)(N)
Part No.EM50122504
Code
BLCC12-575
For flange sizefs (mm)
2-4
Heighth (mm)
16
Diameterd (mm)
20-25
Total HeightH (mm)
38
Total WidthW (mm)
28
Total DepthDtT (mm)
62.23
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
100
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
12600		Product wish list
Part No.EM50122509
Code
BLCC25-575
For flange sizefs (mm)
4-8
Heighth (mm)
16
Diameterd (mm)
20-25
Total HeightH (mm)
56.73
Total WidthW (mm)
38
Total DepthDtT (mm)
67.22
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
6300		Product wish list
Part No.EM50122516
Code
BLCC50-575
For flange sizefs (mm)
8-14
Heighth (mm)
30
Diameterd (mm)
20-25
Total HeightH (mm)
58.49
Total WidthW (mm)
38
Total DepthDtT (mm)
68.85
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
6300		Product wish list
Part No.EM50122520
Code
BLCC75-575
For flange sizefs (mm)
14-20
Heighth (mm)
32
Diameterd (mm)
20-25
Total HeightH (mm)
66.48
Total WidthW (mm)
38
Total DepthDtT (mm)
69.26
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
6300		Product wish list
Part No.EM50122530
Code
BLCC100-575
For flange sizefs (mm)
20-28
Heighth (mm)
50
Diameterd (mm)
20-25
Total HeightH (mm)
70.77
Total WidthW (mm)
38
Total DepthDtT (mm)
71.3
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
25
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
3150		Product wish list
Part No.EM50122609
Code
BLCC25-75
For flange sizefs (mm)
4-8
Heighth (mm)
16
Diameterd (mm)
23-25
Total HeightH (mm)
42
Total WidthW (mm)
38
Total DepthDtT (mm)
70
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
6300		Product wish list
Part No.EM50122616
Code
BLCC50-75
For flange sizefs (mm)
8-14
Heighth (mm)
30
Diameterd (mm)
23-25
Total HeightH (mm)
48
Total WidthW (mm)
38
Total DepthDtT (mm)
70
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
6300		Product wish list
Part No.EM50122620
Code
BLCC75-75
For flange sizefs (mm)
14-20
Heighth (mm)
32
Diameterd (mm)
23-25
Total HeightH (mm)
53
Total WidthW (mm)
38
Total DepthDtT (mm)
70
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
6300		Product wish list
Part No.EM50122630
Code
BLCC100-75
For flange sizefs (mm)
20-28
Heighth (mm)
50
Diameterd (mm)
23-25
Total HeightH (mm)
59
Total WidthW (mm)
38
Total DepthDtT (mm)
70
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
25
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
3150		Product wish list
Part No.EM50123216
Code
BLCC50-100
For flange sizefs (mm)
8-14
Heighth (mm)
30
Diameterd (mm)
26-32
Total HeightH (mm)
50
Total WidthW (mm)
38
Total DepthDtT (mm)
78
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
6300		Product wish list
Part No.EM50123220
Code
BLCC75-100
For flange sizefs (mm)
14-20
Heighth (mm)
32
Diameterd (mm)
26-32
Total HeightH (mm)
55
Total WidthW (mm)
38
Total DepthDtT (mm)
78
Maximum Allowed Load FazFa,z (N)
450
Pack 1 Type
Cardboard Box
Pack 1 QTY
50
Pack 2 Type
Pallet ISO 0-1/2
Pack 2 Qty
6300		Product wish list
