Features & benefits

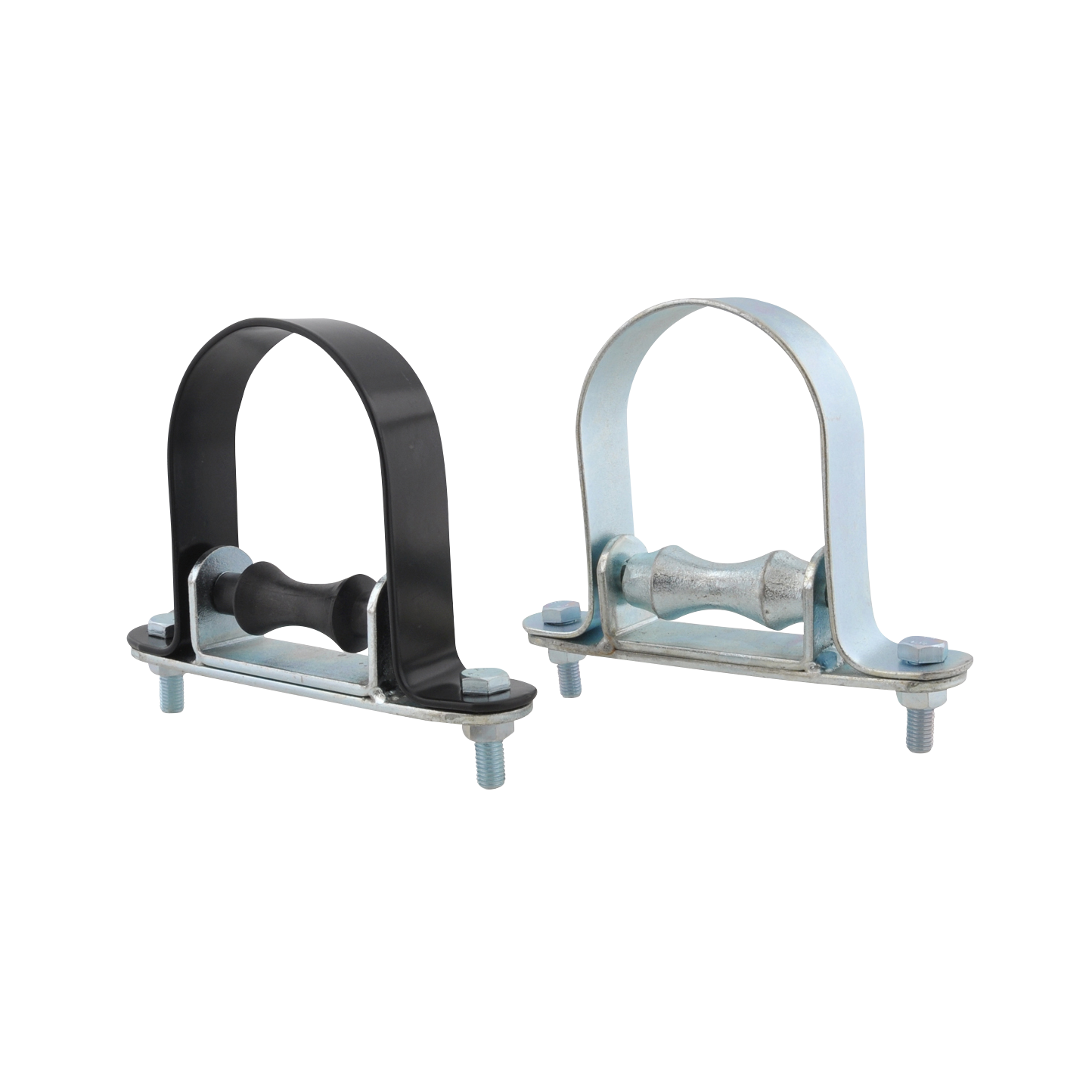

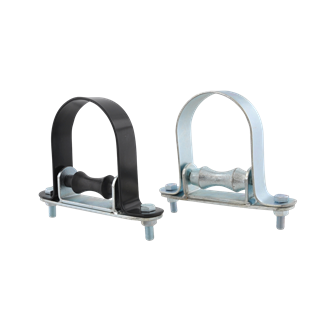

- Type IH120: standard finish: zinc plated
- Type IH147: standard finish: self colour (Base / Chair), nylon coated (Guide)
| Part No. | Outside Pipe Diameter | Pipe Diameter Imperial | DN | Total Height | Total Width | Total Depth | Height | Material Width | Material Thickness | Material Thickness 2 | Heart To Heart Distance | Thread Size | Screw Size | Pack 1 Type | Pack 1 QTY | Pack 2 Type | Product wish list |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ref. letter | D | D | D | H | W | DtT | h | MW | MT | MT 2 | k | TS | ds | ||||
| Unit desc. | (mm) | (″) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||||||
| Part No.B6113034 | Outside Pipe DiameterD (mm) 34 | Pipe Diameter ImperialD (″) 1 | DND DN 25 | Total HeightH (mm) 71 | Total WidthW (mm) 40 | Total DepthDtT (mm) 117 | Heighth (mm) 289 | Material WidthMW (mm) 50 | Material ThicknessMT (mm) 3 | Material Thickness 2MT 2 (mm) 3 | Heart To Heart Distancek (mm) 490 | Thread SizeTS M24 | Screw Sizeds M24 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113048 | Outside Pipe DiameterD (mm) 48 | Pipe Diameter ImperialD (″) 1¼ | DND DN 40 | Total HeightH (mm) 89 | Total WidthW (mm) 40 | Total DepthDtT (mm) 148 | Heighth (mm) 250 | Material WidthMW (mm) 50 | Material ThicknessMT (mm) 3 | Material Thickness 2MT 2 (mm) 3 | Heart To Heart Distancek (mm) 430 | Thread SizeTS M24 | Screw Sizeds M24 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113060 | Outside Pipe DiameterD (mm) 60 | Pipe Diameter ImperialD (″) 2 | DND DN 50 | Total HeightH (mm) 105 | Total WidthW (mm) 40 | Total DepthDtT (mm) 155 | Heighth (mm) 200 | Material WidthMW (mm) 50 | Material ThicknessMT (mm) 3 | Material Thickness 2MT 2 (mm) 3 | Heart To Heart Distancek (mm) 375 | Thread SizeTS M20 | Screw Sizeds M20 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113076 | Outside Pipe DiameterD (mm) 76 | Pipe Diameter ImperialD (″) 2½ | DND DN 65 | Total HeightH (mm) 128 | Total WidthW (mm) 40 | Total DepthDtT (mm) 180 | Heighth (mm) 141 | Material WidthMW (mm) 50 | Material ThicknessMT (mm) 5 | Material Thickness 2MT 2 (mm) 3 | Heart To Heart Distancek (mm) 230 | Thread SizeTS M16 | Screw Sizeds M16 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113089 | Outside Pipe DiameterD (mm) 89 | Pipe Diameter ImperialD (″) 3 | DND DN 80 | Total HeightH (mm) 138 | Total WidthW (mm) 40 | Total DepthDtT (mm) 220 | Heighth (mm) 127 | Material WidthMW (mm) 50 | Material ThicknessMT (mm) 5 | Material Thickness 2MT 2 (mm) 3 | Heart To Heart Distancek (mm) 230 | Thread SizeTS M16 | Screw Sizeds M16 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113114 | Outside Pipe DiameterD (mm) 114 | Pipe Diameter ImperialD (″) 4 | DND DN 100 | Total HeightH (mm) 163 | Total WidthW (mm) 40 | Total DepthDtT (mm) 220 | Heighth (mm) 101 | Material WidthMW (mm) 40 | Material ThicknessMT (mm) 5 | Material Thickness 2MT 2 (mm) 3 | Heart To Heart Distancek (mm) 180 | Thread SizeTS M12 | Screw Sizeds M12 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113140 | Outside Pipe DiameterD (mm) 140 | Pipe Diameter ImperialD (″) 5 | DND DN 125 | Total HeightH (mm) 205 | Total WidthW (mm) 50 | Total DepthDtT (mm) 280 | Heighth (mm) 88 | Material WidthMW (mm) 40 | Material ThicknessMT (mm) 6 | Material Thickness 2MT 2 (mm) 3 | Heart To Heart Distancek (mm) 180 | Thread SizeTS M12 | Screw Sizeds M12 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113168 | Outside Pipe DiameterD (mm) 168 | Pipe Diameter ImperialD (″) 6 | DND DN 150 | Total HeightH (mm) 239 | Total WidthW (mm) 50 | Total DepthDtT (mm) 280 | Heighth (mm) 81 | Material WidthMW (mm) 40 | Material ThicknessMT (mm) 6 | Material Thickness 2MT 2 (mm) 3 | Heart To Heart Distancek (mm) 140 | Thread SizeTS M12 | Screw Sizeds M12 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113219 | Outside Pipe DiameterD (mm) 219 | Pipe Diameter ImperialD (″) 8 | DND DN 200 | Total HeightH (mm) 326 | Total WidthW (mm) 69 | Total DepthDtT (mm) 445 | Heighth (mm) 65 | Material WidthMW (mm) 30 | Material ThicknessMT (mm) 10 | Material Thickness 2MT 2 (mm) 6 | Heart To Heart Distancek (mm) 115 | Thread SizeTS M10 | Screw Sizeds M10 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113273 | Outside Pipe DiameterD (mm) 273 | Pipe Diameter ImperialD (″) 10 | DND DN 250 | Total HeightH (mm) 405 | Total WidthW (mm) 85 | Total DepthDtT (mm) 500 | Heighth (mm) 55 | Material WidthMW (mm) 30 | Material ThicknessMT (mm) 12 | Material Thickness 2MT 2 (mm) 6 | Heart To Heart Distancek (mm) 108 | Thread SizeTS M10 | Screw Sizeds M10 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
| Part No.B6113323 | Outside Pipe DiameterD (mm) 323 | Pipe Diameter ImperialD (″) 12 | DND DN 300 | Total HeightH (mm) 475 | Total WidthW (mm) 100 | Total DepthDtT (mm) 560 | Heighth (mm) 45 | Material WidthMW (mm) 30 | Material ThicknessMT (mm) 12 | Material Thickness 2MT 2 (mm) 10 | Heart To Heart Distancek (mm) 77 | Thread SizeTS M10 | Screw Sizeds M10 | Pack 1 Type Unpacked | Pack 1 QTY 1 | Pack 2 Type No Pack Type Available | Product wish list |
