Dealing with vibration in HVAC installations

Turn down the volume of buildings

The operation of mechanical and electrical (M&E) services generates varying degrees of noise and vibration which, if left untreated, have the potential to cause damage to the equipment itself as well as to disturb occupants within a building.

The level of noise and vibration control required for M&E will often be specified by the acoustic consultant or noise and vibration engineer, with the specification determined by a number of factors, including:, Building Regulations, Noise at Work Regulations, employer requirements, building type, machine specifications.

Besides a complete range of vibration isolators, Walraven offers Technical Support and guidance to contractors installing vibration supports.

Download the Walraven antivibration brochure

Request a printed copy of the brochure here.

Learn more about vibration and how to prevent it

Effective noise and vibration control will help protect M&E equipment, which not only prolongs the life of the machinery it also reduces the cost and frequency of maintenance. Where noise and vibration are likely to cause a disturbance to building occupants, the objective of any M&E treatment is to prevent vibration from propagating into a building or stop airborne sound from transferring into occupied spaces and becoming nuisance noise. In many cases a combination of noise and vibration control solutions are required to achieve the specified performance levels.

Understanding the basics of vibration

vibration

Find out more about vibration of mechanical equipment and why it is important to prevent it.

Read article

Types of anti vibration mounts

vibration isolators

See an overview of the different types of vibration isolator for mechanical installations.

Read article

How to select the right vibration solution

There are a number of factors to consider when choosing an anti vibration mount.

Read article

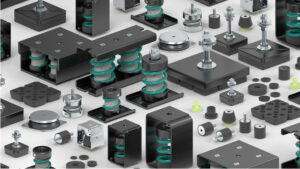

Browse the complete Walraven VibraTek®

product range

View vibration & acoustic isolation products

Where can you apply Walraven VibraTek® isolators?

Here are some examples of applications where anti-vibration solutions may be required:

  1. Heat pumps
  2. Outside AC splits
  3. Acoustic ceilings
  4. Backup power generators and cogeneration plants
  1. Suspended piping system
  2. Pumps
  3. Compressors
  4. Ventilation ducts
  1. Rooftop chillers, refrigeration and air handling
  2. Inline fans and equipment
  3. Industrial processing machinery

Get in touch for advice about

vibration isolation.

Fill in our online form here

Go to our online product catalogue to view the full range of Walraven VibraTek® solutions.

  • 2800702000

    Walraven VibraTek® HS-1X Spring Hanger

    • simple to install and does not need to be fixed to the base material
    • recommended for machinery with low working speeds above 700 RPM
    • epoxy powder-coated housing, cap and spring provide increased resistance to corrosion

    More information

  • 2800103000

    Walraven VibraTek® MR-L 3000/M10 Rubber Levelling Mount

    • recommended for machinery with working speeds above 2500 RPM, providing a degree of vibration insulation from 75% to 80%
    • simple to install and does not need to be fixed to the supporting structure
    • rubber isolator with DIN 934 nuts and DIN 9012 washers included in delivery for mounting and levelling equipment

    More information

  • 2800403000

    Walraven VibraTek® MS-1X Spring Mount

    • recommended for equipment with low working speeds, from 600 RPM and above
    • epoxy powder-coated base, caps and springs provide increased resistance to corrosion
    • flexible internal filler prevents debris and solid elements entering and damaging the spring under load

    More information

  • 2801500290

    Walraven VibraTek® SB-MF Silentblock

    • a universal rubber absorber, ideal for use with all kinds of elastic suspension or mounting of equipment
    • ideal for use with machinery and equipment mounted on metallic surface
    • for use in compression only

    More information
